4 Replacement Procedures 4.24 System board
3. Remove the following screw and system board while pushing the system board
slightly in the direction shown in the figure below.
• M2.5×4B FLAT HEAD screw ×1
System board
M2.5x4B FLAT HEAD

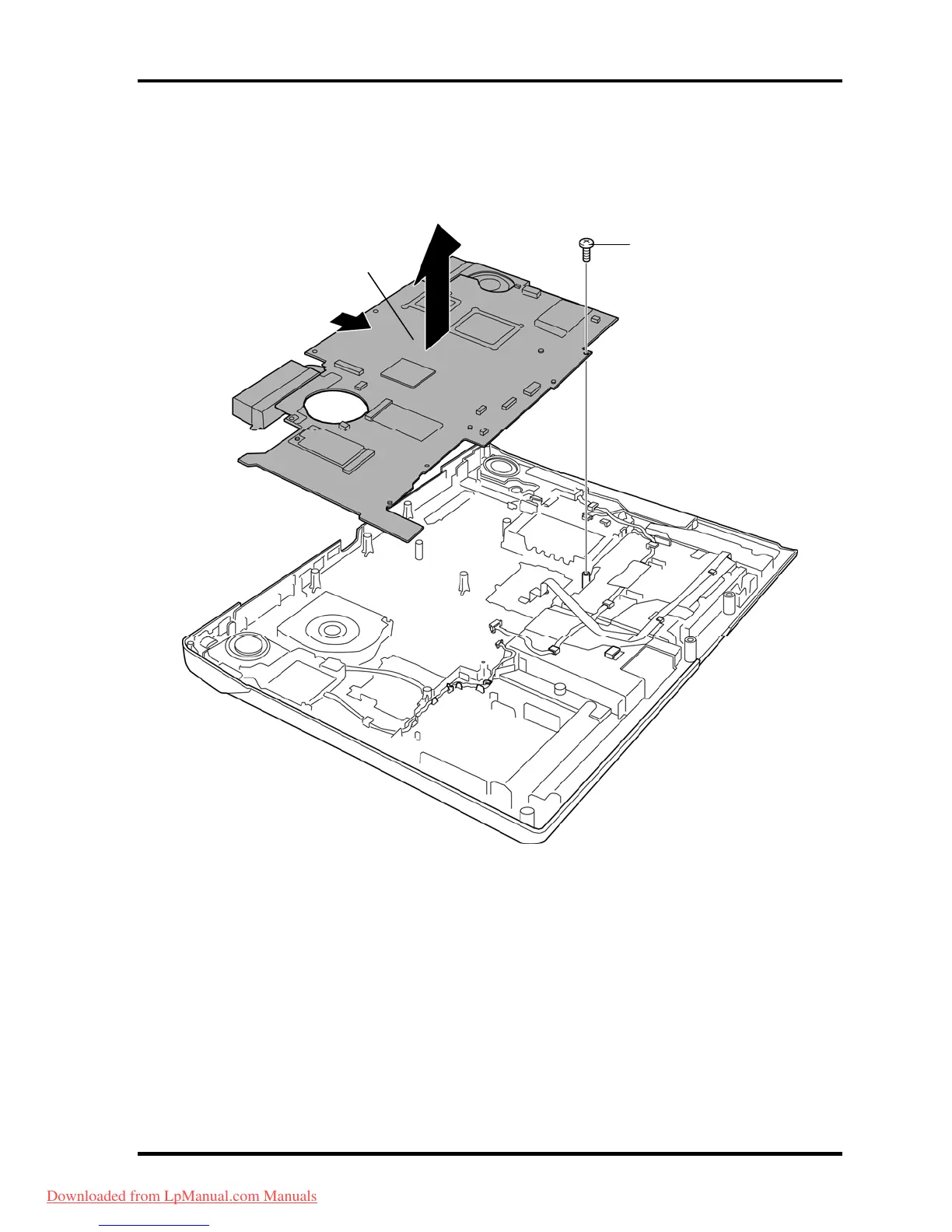

Figure 4-43 Removing the system board (2)
4-70 [CONFIDENTIAL] QOSMIO G50 Maintenance Manual (960-683)
