4 Replacement Procedures 4.33 F-jack
4.33 F-jack
F-jack is mounted for TV tuner model only.
Removing the F-jack
The following describes the procedure for removing the F-jack (See Figure 4-63).
1. Disconnect the F-jack cable from the F-jack and remove the following screw
securing the F-jack.
• M2.5×4BN TH screw ×1
2. Remove the F-jack from the slot of the base assembly.
TH SCREW M2.5
×
4BN
F-jack
F-jack cable

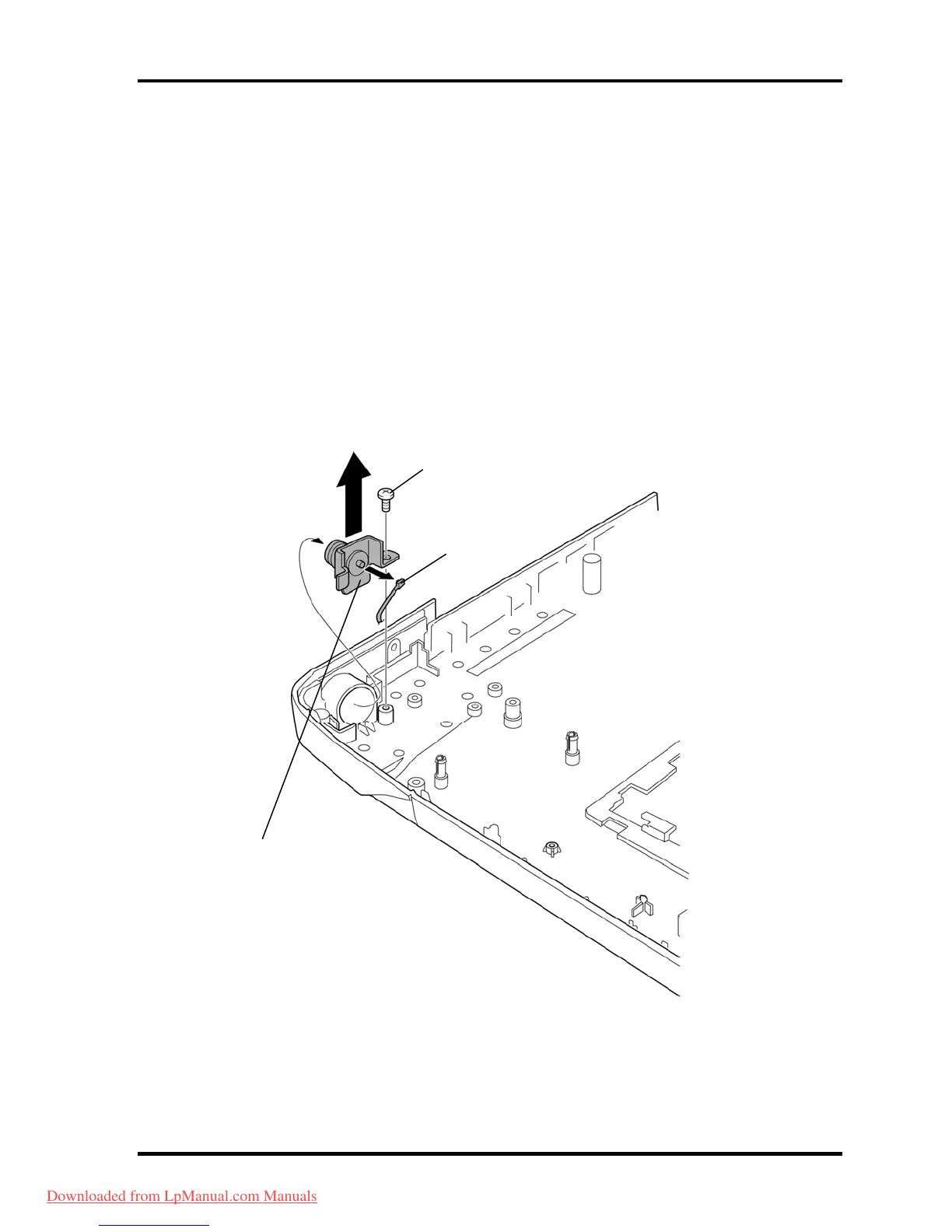

Figure 4-63 Removing the F-jack
4-96 [CONFIDENTIAL] QOSMIO G50 Maintenance Manual (960-683)
