4 Replacement Procedures 4.14 Touch pad/Fingerprint sensor board/LED board
4.14 Touch pad/Fingerprint sensor board/LED board
Removing the touch pad/Fingerprint sensor board/LED board
The following describes the procedure for removing the touch pad/fingerprint sensor
board/LED board (See Figure 4-26 to 4-30).
1. Peel off the glass tape and aluminum tape (AL TAPE LED FFC).
2. Disconnect the touch pad SW/LED cable from the connector on the LED board and
remove the LED board cable from the guides of the cover assembly.
Touch pad SW/LED cable
Guide
luminum tape
(AL TAPE LED FFC)
Glass tape

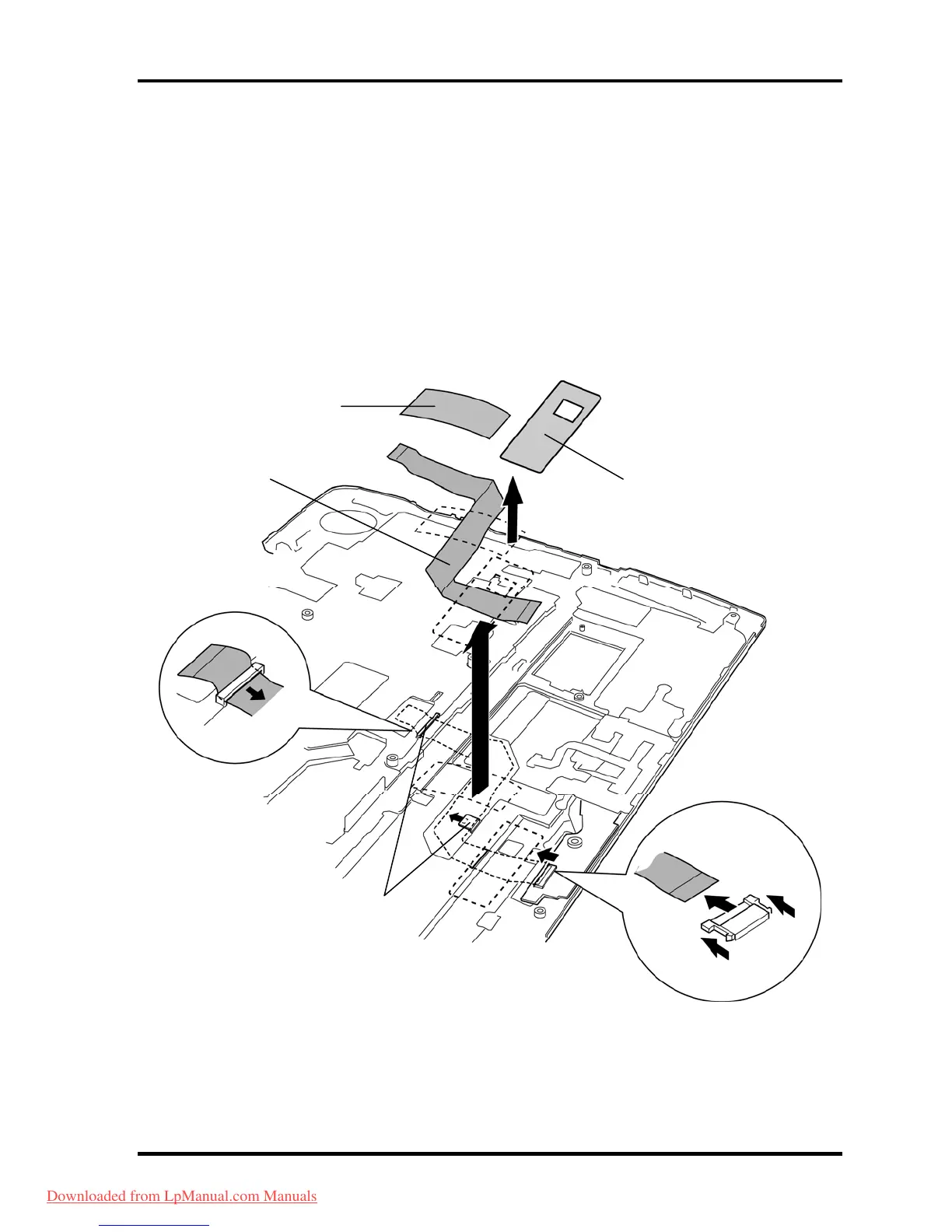

Figure 4-26 Removing the touch pad/Fingerprint sensor board/LED board (1)
