4 Replacement Procedures 4.34 Battery lock/Battery latch
4.34 Battery lock/Battery latch
Removing the Battery lock/Battery latch
The following describes the procedure for removing the battery lock/battery latch (See Figure
4-64 and 4-65).
1. Remove the battery lock assembly while releasing three latches.
2. Remove the battery lock from the battery lock assembly.
Battery lock
Battery lock assembly
Latch

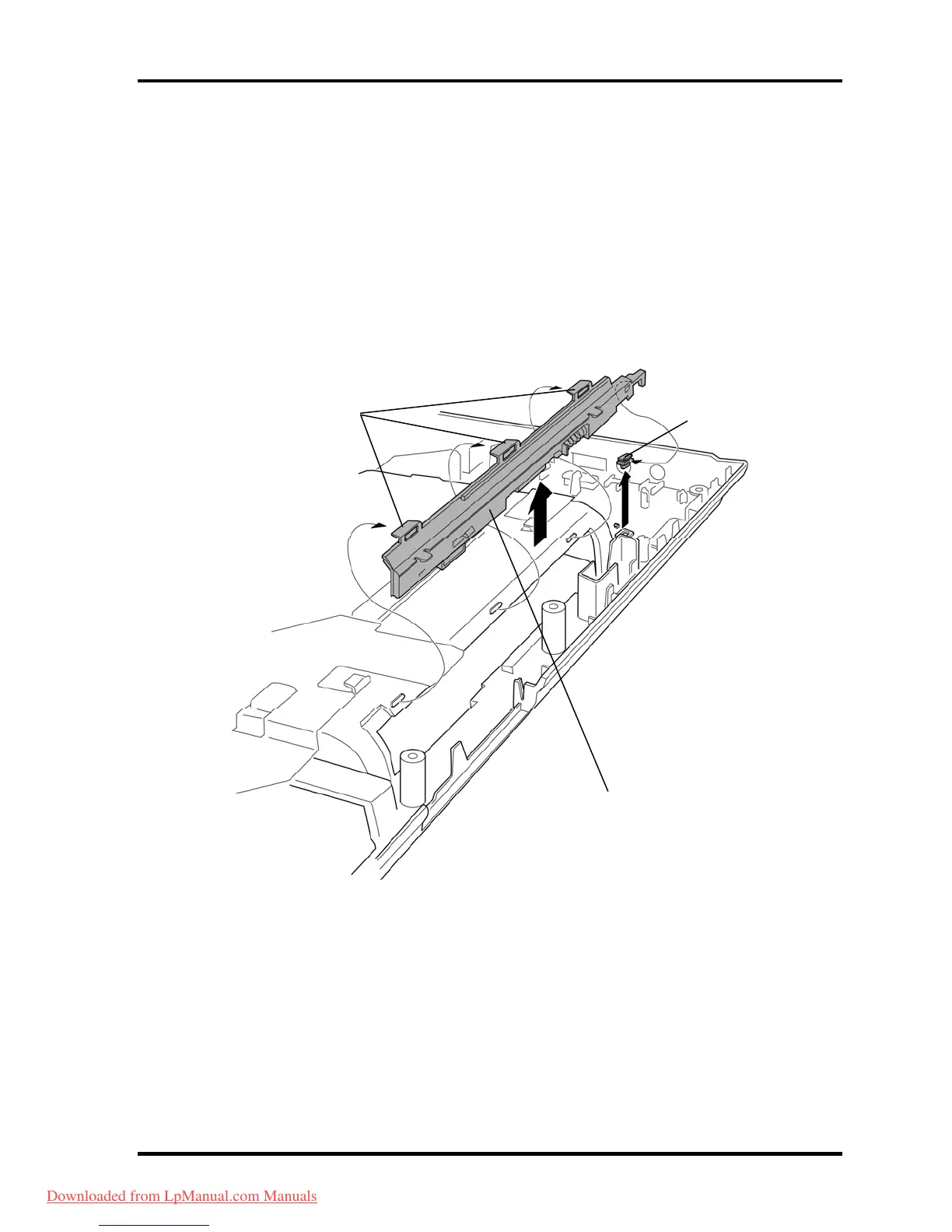

Figure 4-64 Removing the battery lock/battery latch (1)
