4 Replacement Procedures 4.17 Back cover
4.17 Back cover
Removing the Back cover
The following describes the procedure for removing the back cover (See Figure 4-35).
1. Remove the following screws securing the back cover.
• M2.5×6B FLAT HEAD screw ×4
2. Remove the back cover while releasing the latches.
M2.5x6B FLAT HEAD
Guide
Back cover
M2.5x6B FLAT HEAD

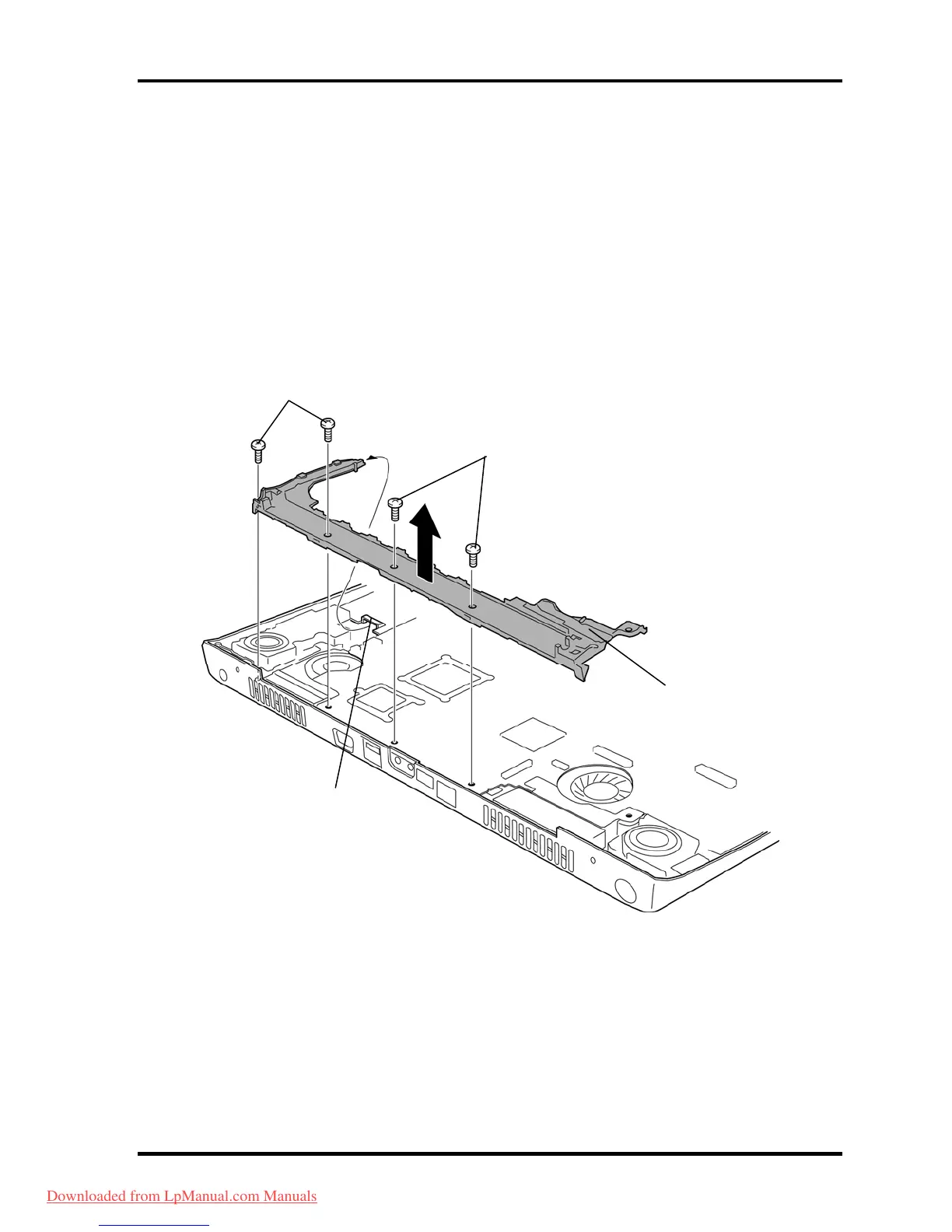

Figure 4-35 Removing the back cover
4-54 [CONFIDENTIAL] QOSMIO G50 Maintenance Manual (960-683)
