4 Replacement Procedures 4.35 LCD unit/FL inverter
4
4.35 LCD unit/FL inverter
Removing the LCD unit/FL inverter
The following describes the procedure for removing the LCD unit/FL inverter (See Figure 4-
66 to 4-70).
1. Peel off six LCD cushions (up and low) and remove the following screws.
• M2.5×6B FLAT HEAD screw ×4
• M2.5×8B FLAT HEAD screw ×2
2. Remove the LCD mask while releasing the latches.
M2.5x6B FLAT HEAD
(Under the LCD cushion up)
M2.5x8B FLAT HEAD
(Under the LCD cushion low)
LCD mask

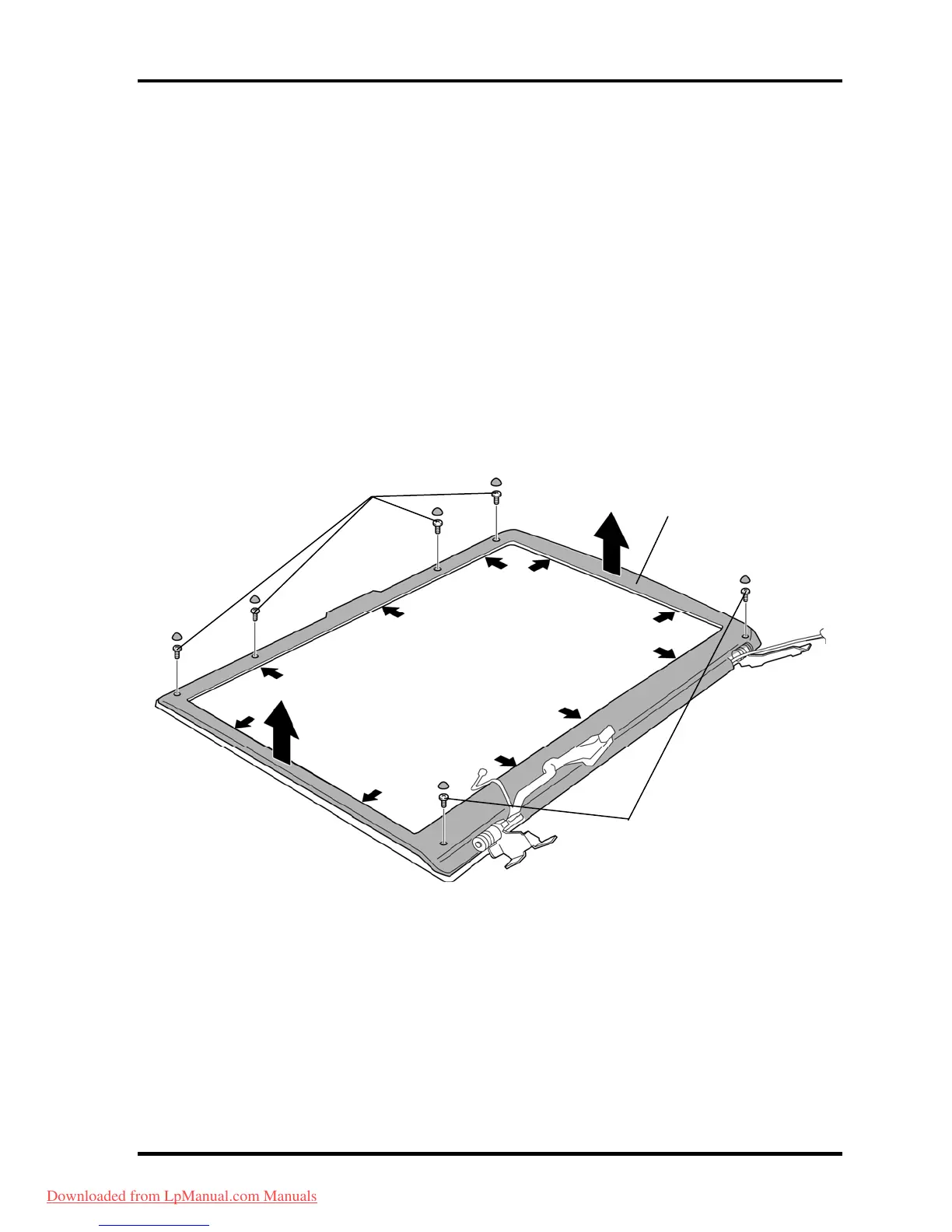

Figure 4-66 Removing the LCD mask
4-100 [CONFIDENTIAL] QOSMIO G50 Maintenance Manual (960-683)
