4.15 LCD assembly/Base assembly 4 Replacement Procedures
5. Separate the LCD assembly and base assembly while pulling out the right hinge
from the hole of the base assembly.
LCD assembly
Base assembly
Hinge (right)

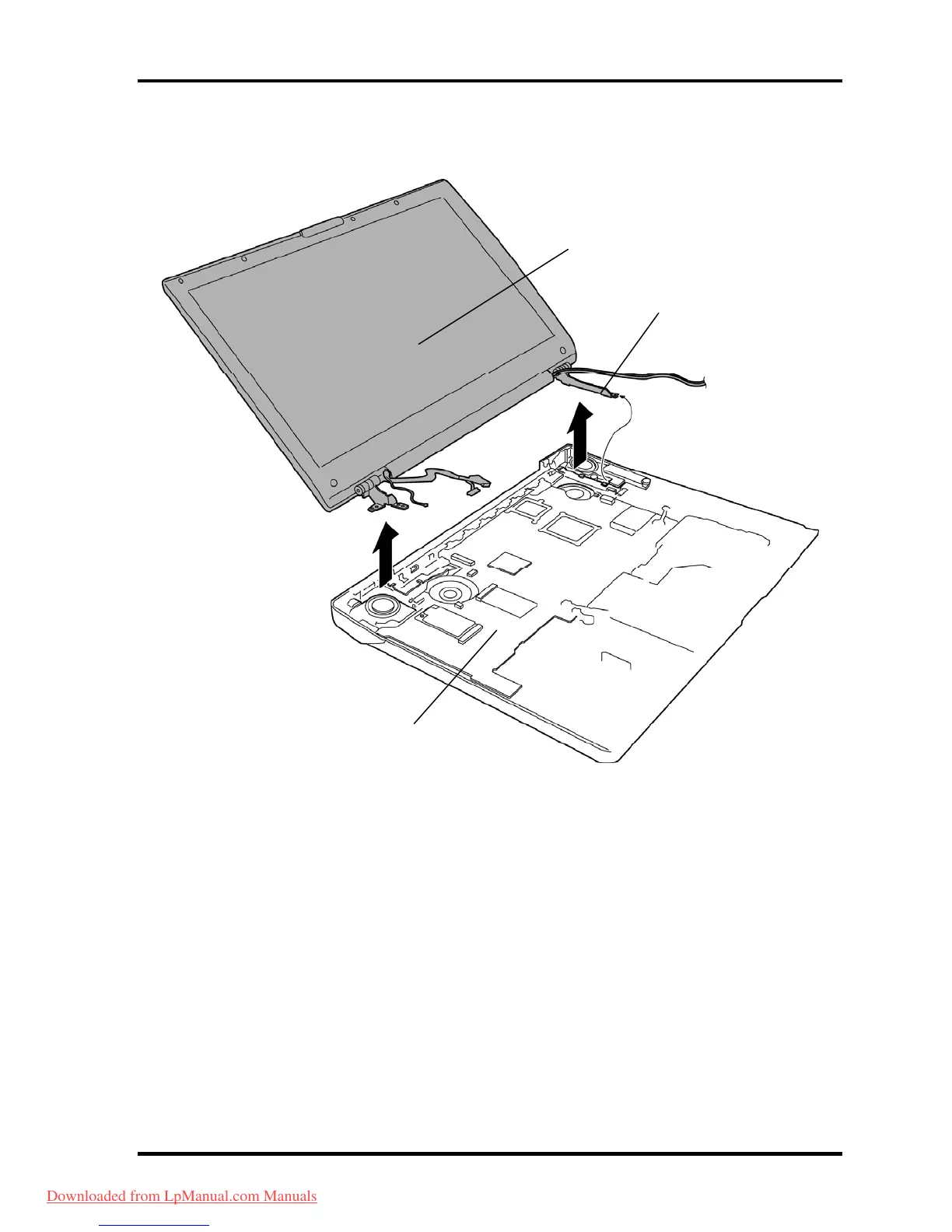

Figure 4-32 Removing the base assembly (2)
