4.8 Optical disk drive (DVD-super multi drive) 4 Replacement Procedures
4.8 Optical disk drive (DVD-super multi drive)
Removing the Optical disk drive
The following describes the procedure for removing the optical disk drive (See Figure 4-14
to 4-16).
1. Remove the following screw securing the optical disk drive.
• M2.5×6B FLAT HEAD screw ×1
M2.5x6B FLAT HEAD

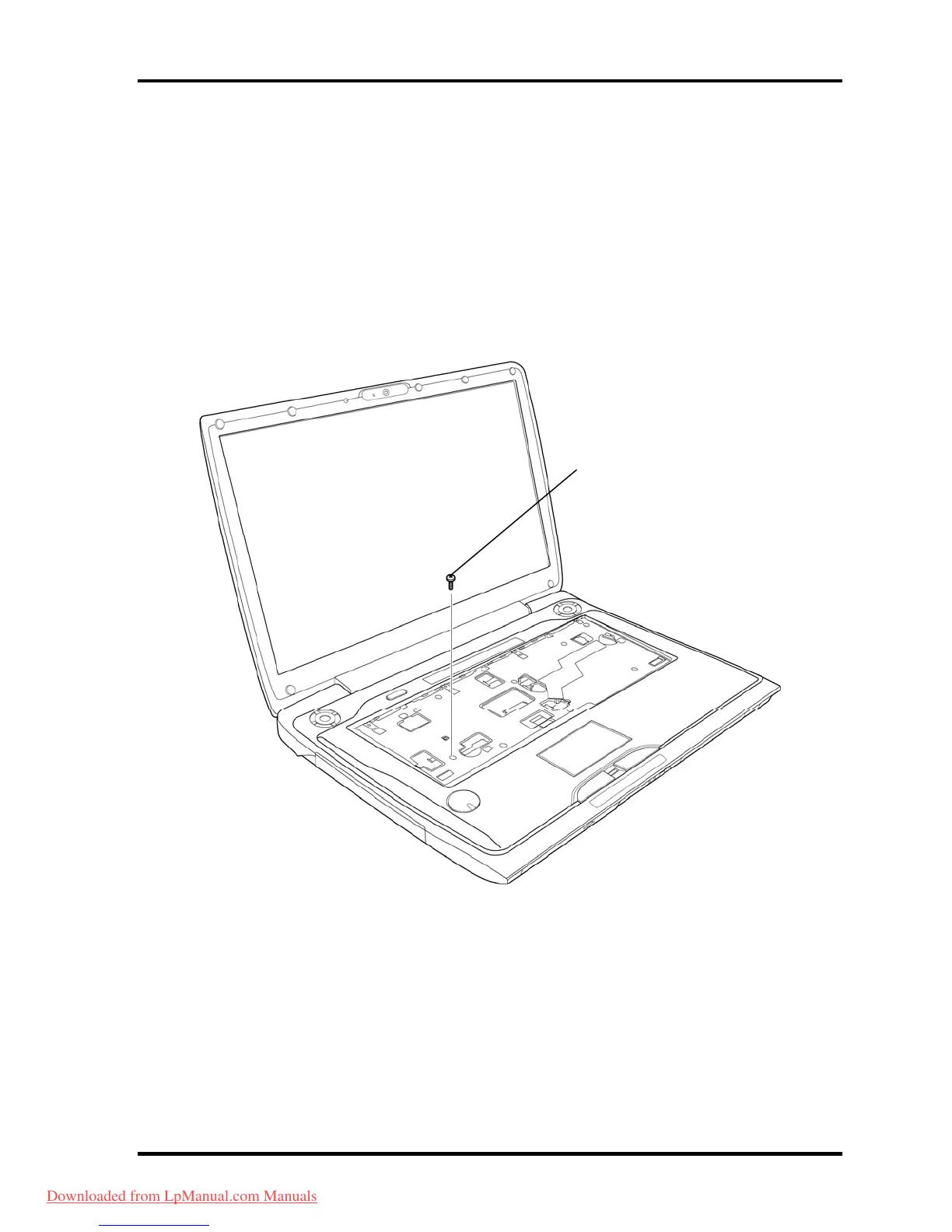

Figure 4-14 Removing the optical disk drive (1)
