Toshiba QOSMIO G50

4.31 Hinge 4 Replacement Procedures
4.31 Hinge
Removing the hinge
The following describes the procedure for removing the hinge (See Figure 4-60 and 4-61).
1. Remove the following screw and brake hinge low R.
• M2.5×6C Tapping screw ×1
M2.5x6C Tapping
Brake hinge low R

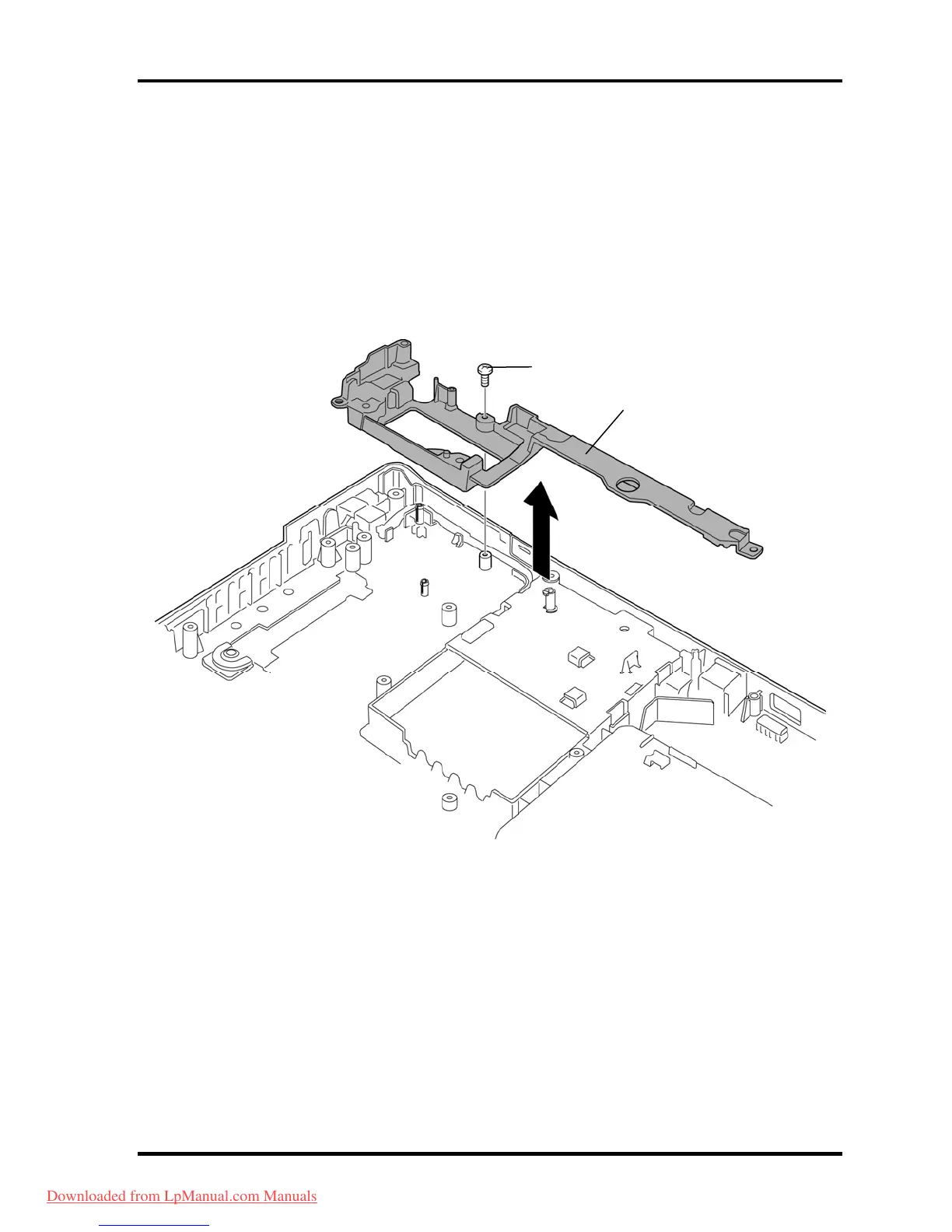

Figure 4-60 Removing the hinge (right)
