4 Replacement Procedures 4.30 USB/Jack board
3. Disconnect the USB cable from the connector CN6510 on the back of USB/jack
board.
CN6510
USB cable

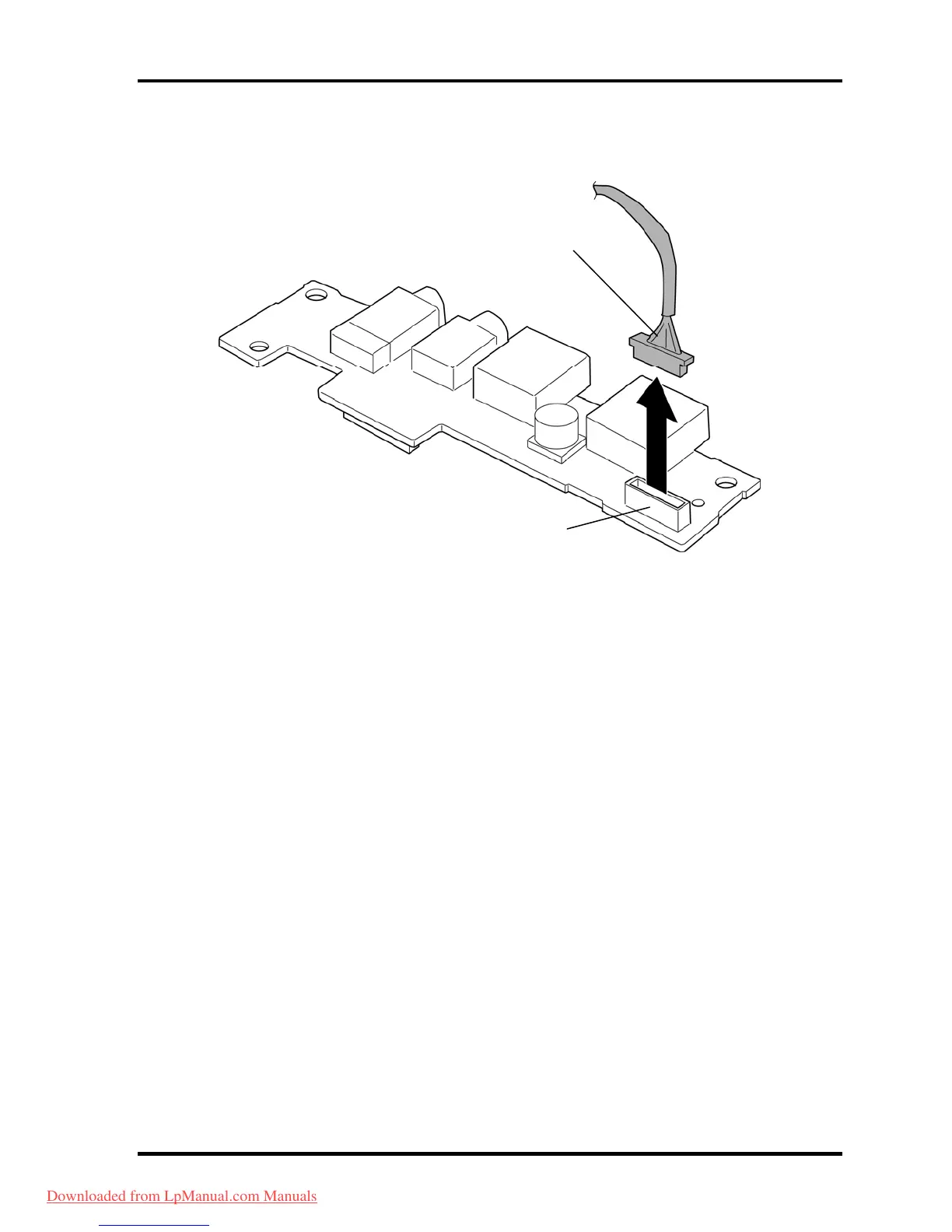

Figure 4-59 Removing the USB/jack board (2)
Installing the USB/Jack board
The following describes the procedure for installing the USB/jack board (See Figure 4-58
and 4-59).
1. Connect the USB cable to the connector CN6510 on the back of USB/jack board.
2. Connect the jack board cable to the connector CN6511 on the system board.
3. Set the USB/jack board to the slot of the base assembly while engaging the hook.
4-90 [CONFIDENTIAL] QOSMIO G50 Maintenance Manual (960-683)
