4.36 Internal microphone/Camera module 4 Replacement Procedures
4. Take out the internal microphone from the microphone holder and remove the
camera/microphone cable from the LCD cover.
Camera/microphone cable
Internal microphone
Microphone holder

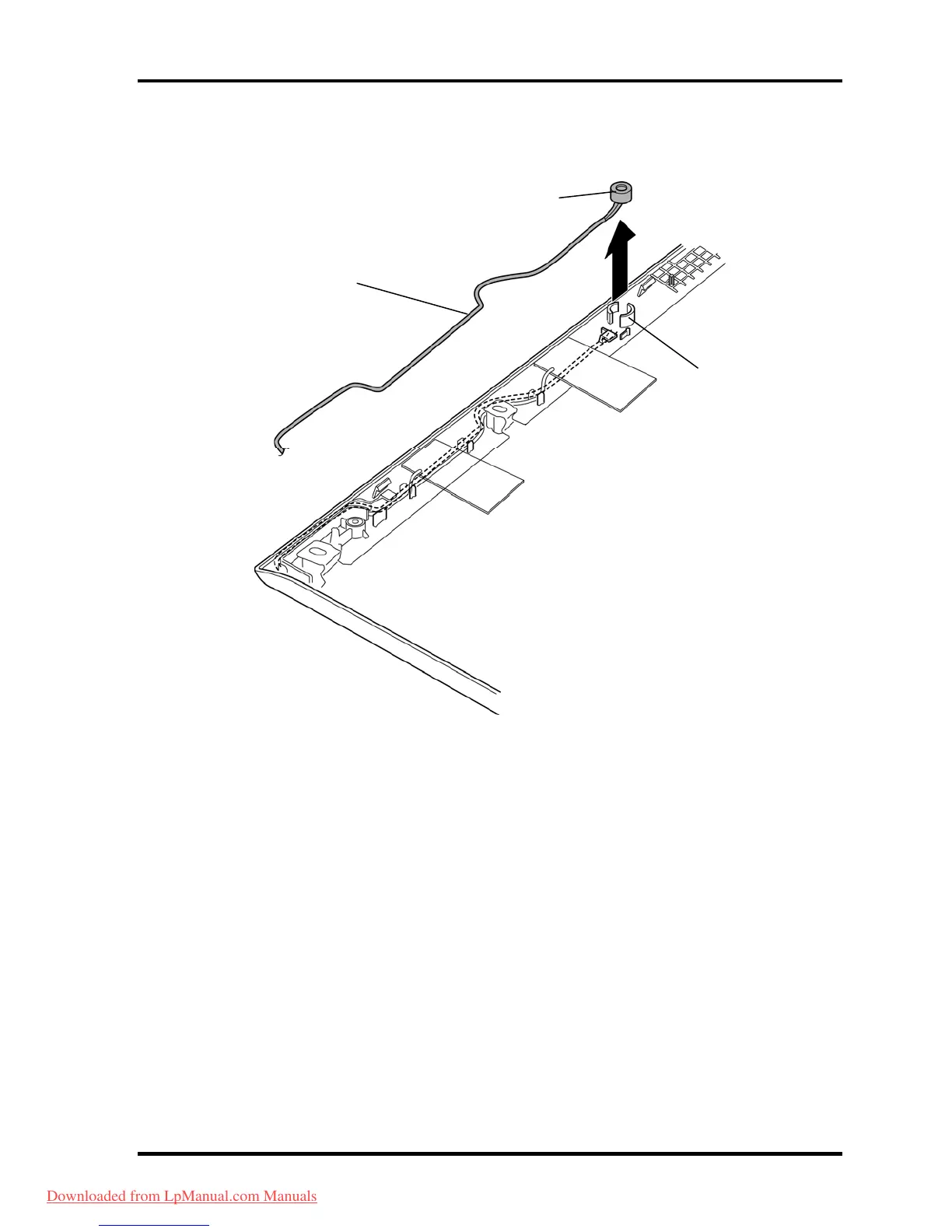

Figure 4-74 Removing the internal microphone (2)
