4 Replacement Procedures 4.27 Speaker
4.27 Speaker
Removing the speaker
The following describes the procedure for removing the speaker (See Figure 4-52 to 4-55).
1. Remove the following screw and left LED.
• M2.0×4B FLAT BIND screw ×1
2. Remove the left speaker from the slot.
Speaker (left)
M2.0x4B FLAT BIND
LED (left)

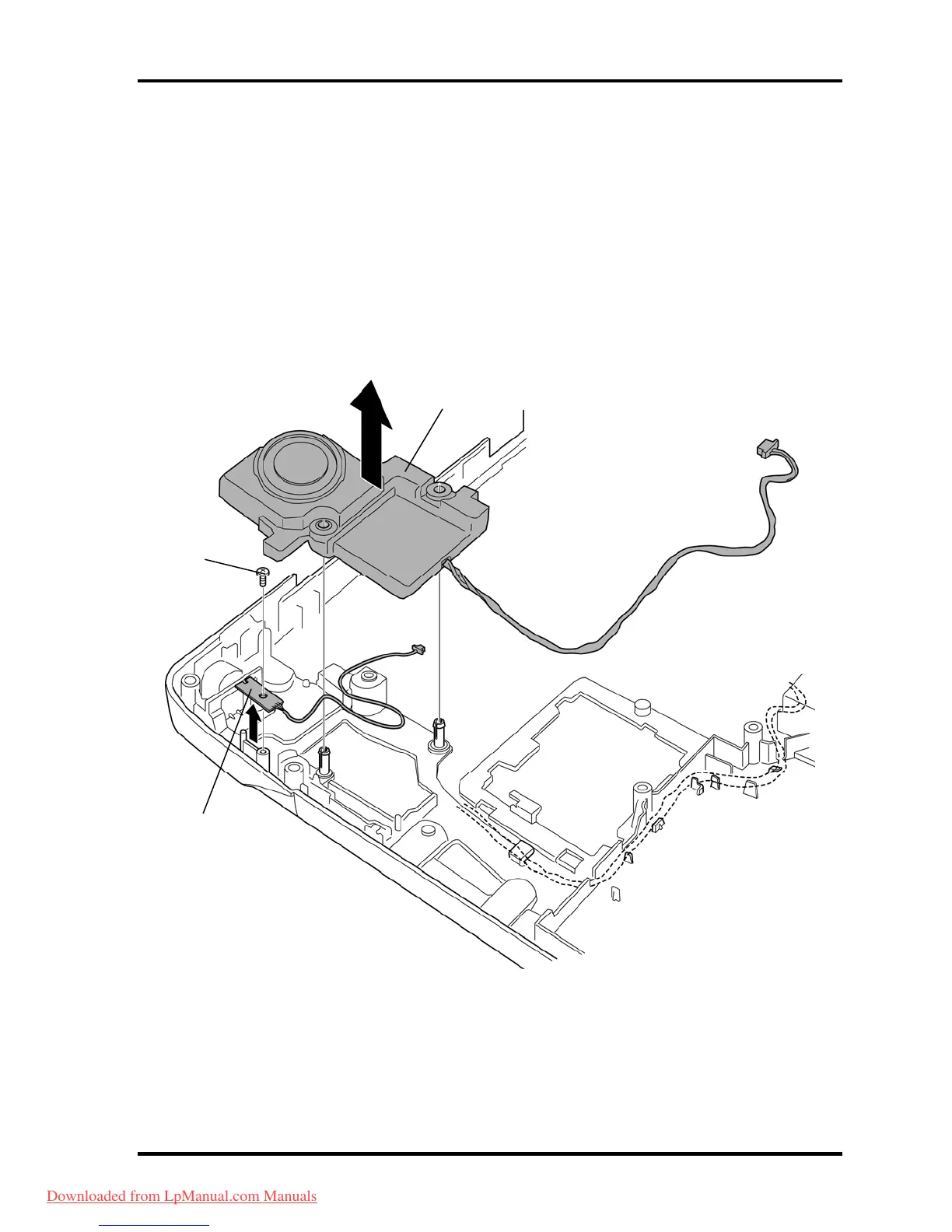

Figure 4-52 Removing the speaker (1)
