4.27 Speaker
4 Replacement Procedures
3.
Peel off the
glass tape
and release the
right speaker/woofer cable
.
4.
Release the
jack board cable
.
Speaker (right)/woofer cable
Glass tape
Jack board cable

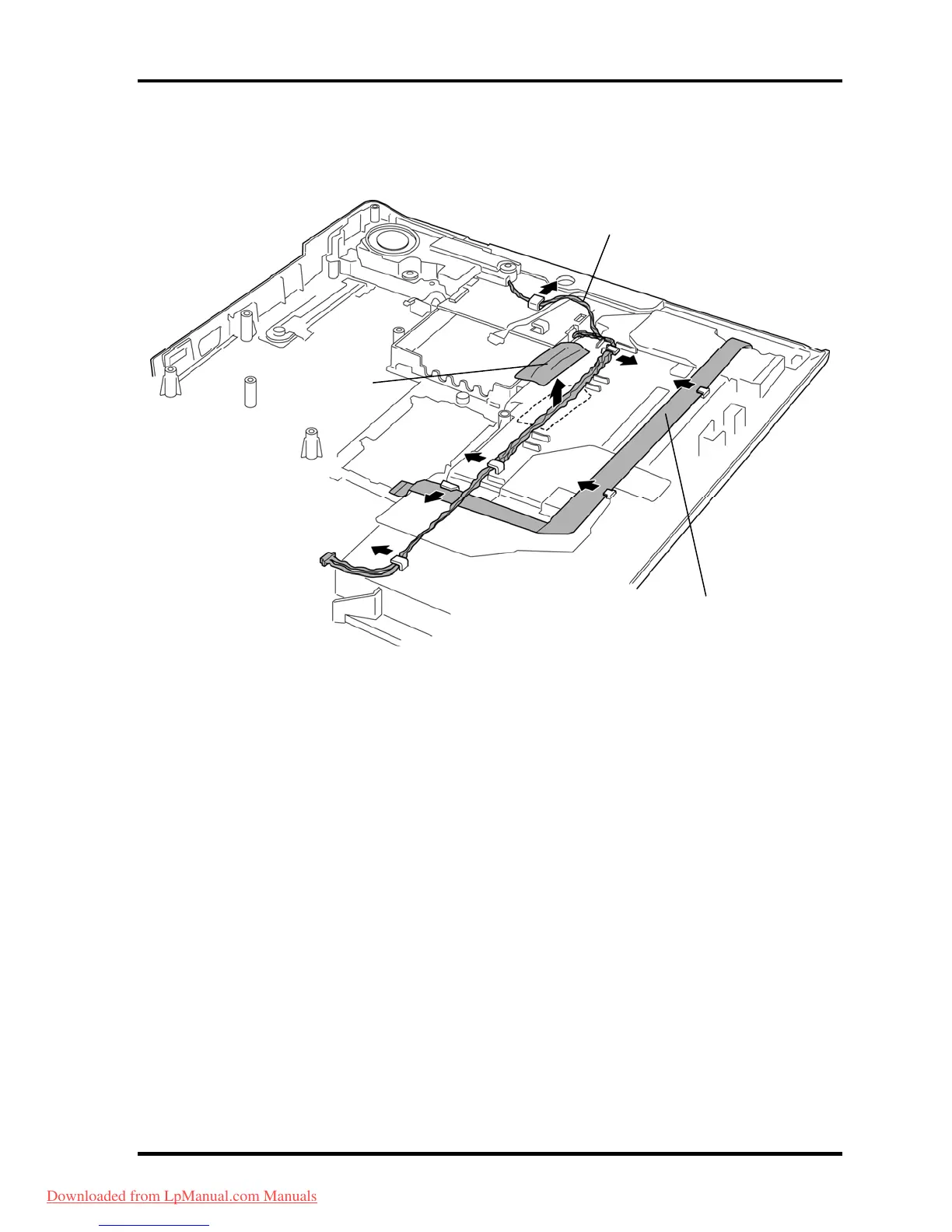

Figure 4-53 Removing the speaker (2)
QOSMIO G50 Maint
enance Manual (
960-683)
[CONFIDENTIAL]
4-83
