4 Replacement Procedures 4.7 Keyboard
5. Disconnect the keyboard cable from the connector CN3230 on the system board and
remove the keyboard.
CN3230
Keyboard cable
Keyboard

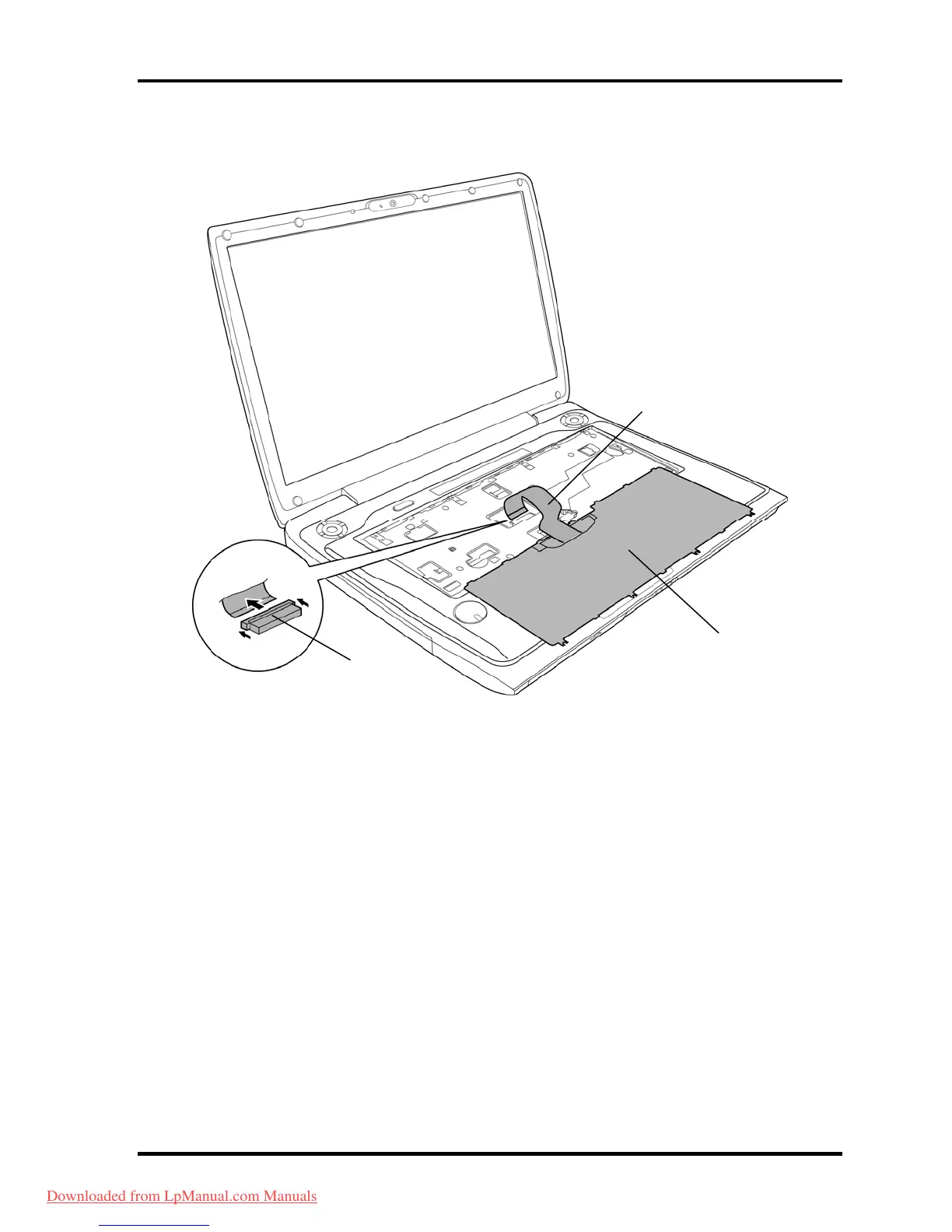

Figure 4-13 Removing the keyboard
Installing the keyboard
The following describes the procedure for installing the keyboard (See Figure 4-12 and 4-13).
1. Place the keyboard on the palm rest with its face down. Connect the keyboard cable
to the connector CN3230 on the system board.
2. Turn the keyboard face up and put it on the computer while engaging the latches.
Make sure that latches of the under side are put in the holes and there is no space
between the keyboard and the computer.
3. Secure the keyboard with the following screws.
• M2.5×4B FLAT HEAD screw ×4
4. Set the keyboard holder and press it to latch.
4-24 [CONFIDENTIAL] QOSMIO G50 Maintenance Manual (960-683)
