4.14 Touch pad/Fingerprint sensor board/LED board 4 Replacement Procedures
3. Disconnect the touch pad cable from the connector on the Fingerprint sensor
board/LED board.
4. Remove the following screws and Fingerprint sensor board/LED board from the
slot.
• M2.0×4B BIND screw ×2
M2.0x4B BIND
Fingerprint sensor board/
LED board
Touch pad cable
Guide

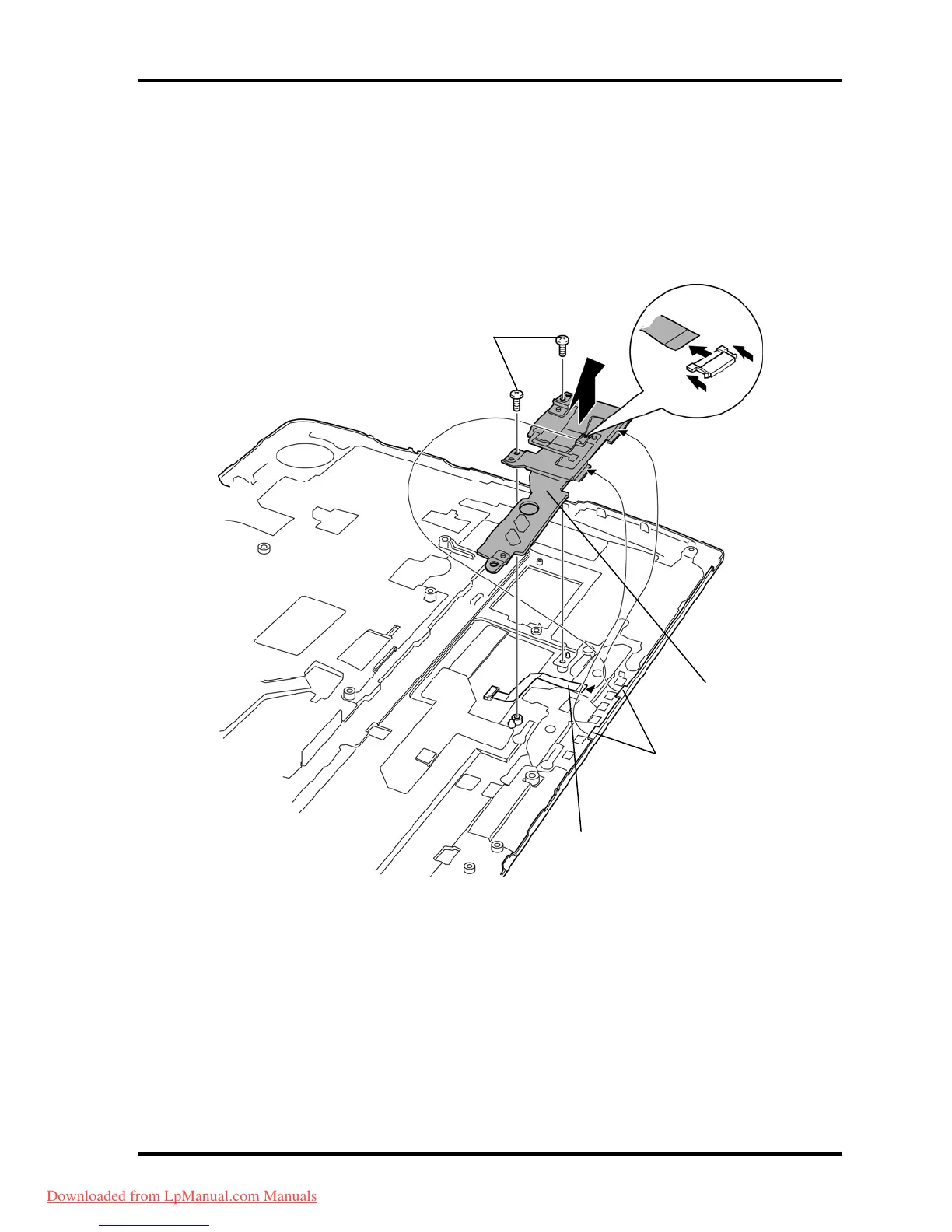

Figure 4-27 Removing the touch pad/Fingerprint sensor board/LED board (2)
QOSMIO G50 Maintenance Manual (960-683) [CONFIDENTIAL] 4-43
