4 Replacement Procedures 4.14 Touch pad/Fingerprint sensor board/LED board
5. Disconnect the Fingerprint sensor cable from the connector on the Fingerprint
sensor board.
6. Remove the following screw and Fingerprint sensor board.
• M2.5×2.8B FLAT HEAD screw ×1
M2.5x2.8B FLAT HEAD
Fingerprint sensor board
Fingerprint sensor cable

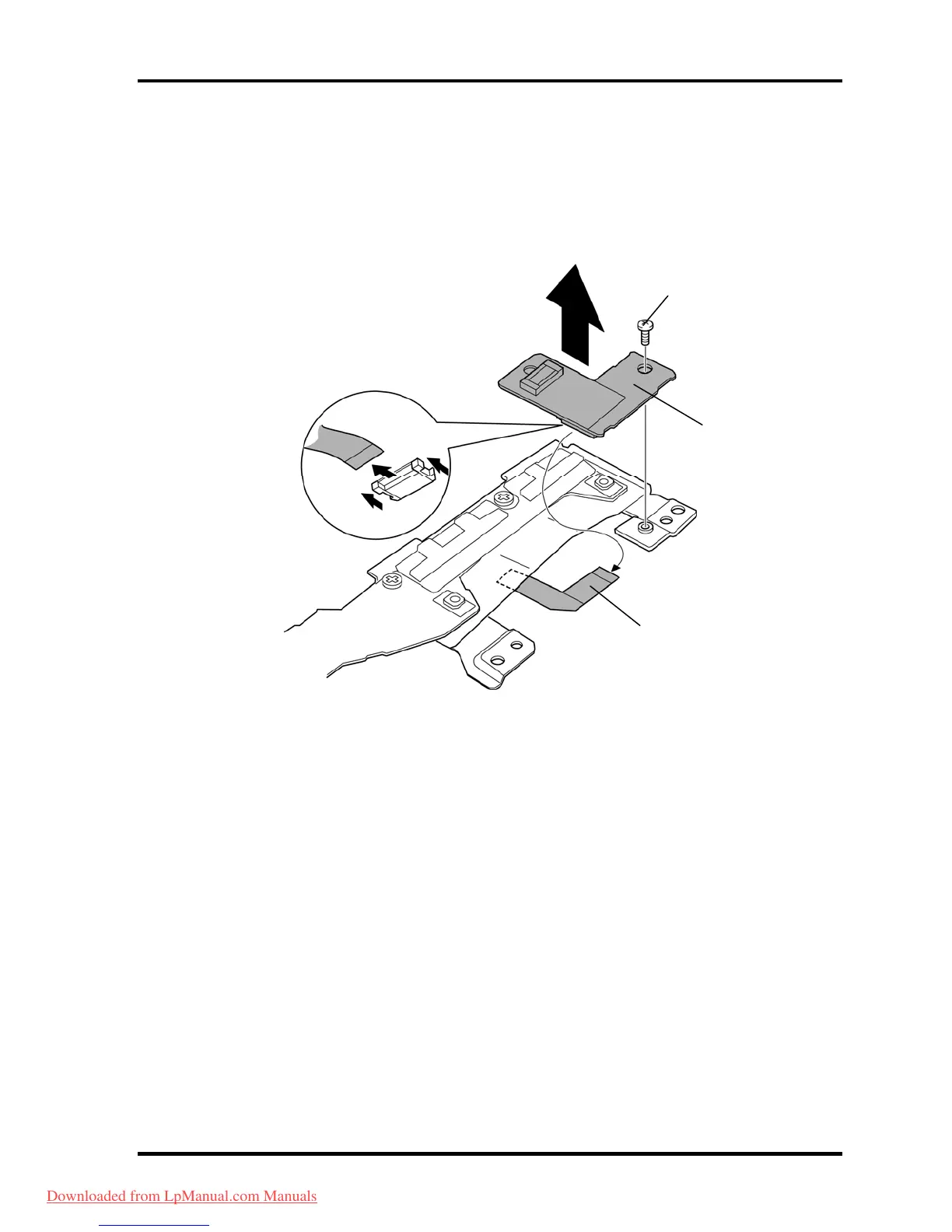

Figure 4-28 Removing the Fingerprint sensor board
4-44 [CONFIDENTIAL] QOSMIO G50 Maintenance Manual (960-683)
