4.14 Touch pad/Fingerprint sensor board/LED board 4 Replacement Procedures
7. Remove the following screws and separate the LED board and touch pad plate.
• M2.5×2.8B FLAT HEAD screw ×2
8. Remove the following screw and separate the LED board and plate.
• M2.5×2.8B FLAT HEAD screw ×1
Touch pad plate
M2.5x2.8B FLAT HEAD
Plate
LED board

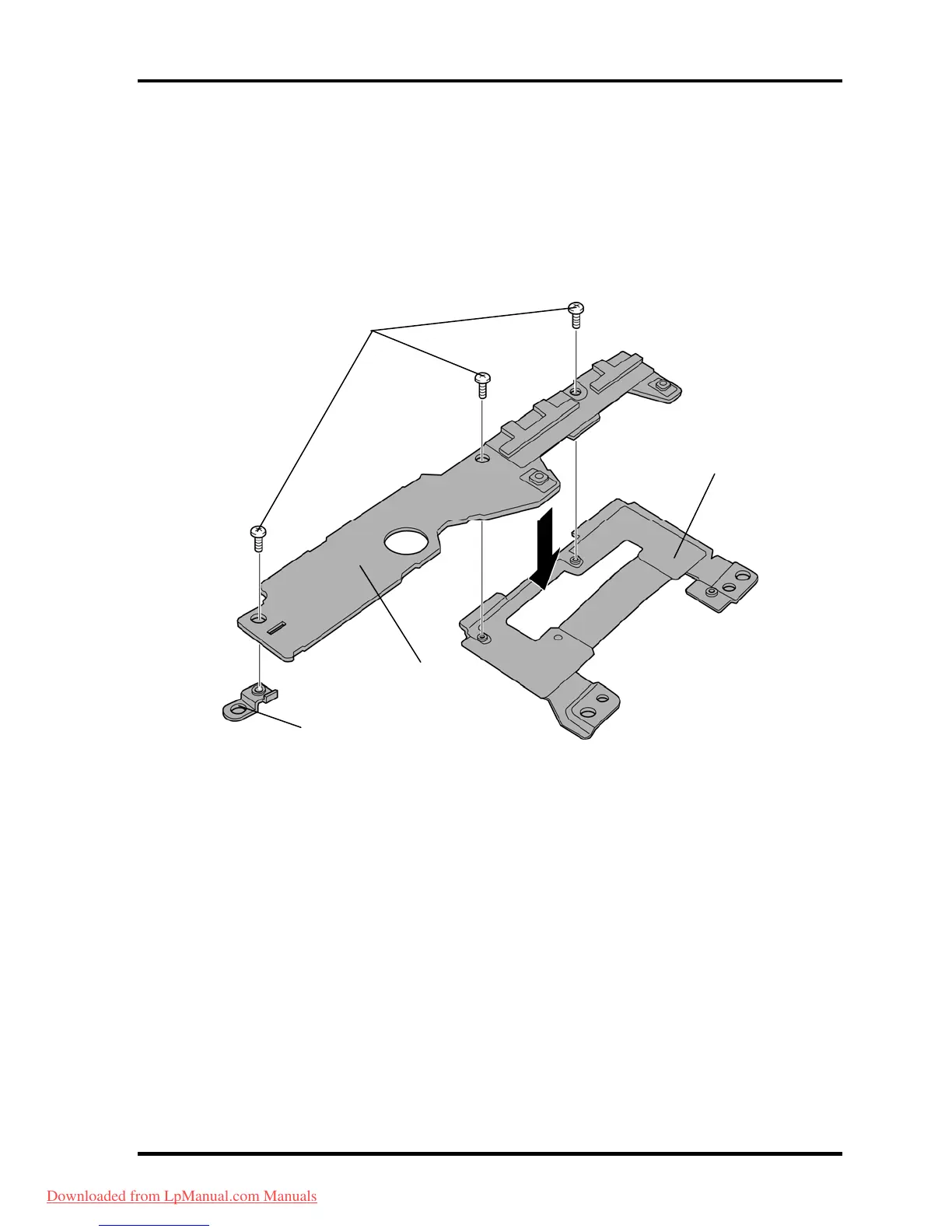

Figure 4-29 Removing the LED board
