4 Replacement Procedures 4.14 Touch pad/Fingerprint sensor board/LED board
9. Peel off the touch pad.
10. Disconnect the touch pad cable from the connector on the touch pad.
Touch pad
Touch pad cable
COVER ASSY

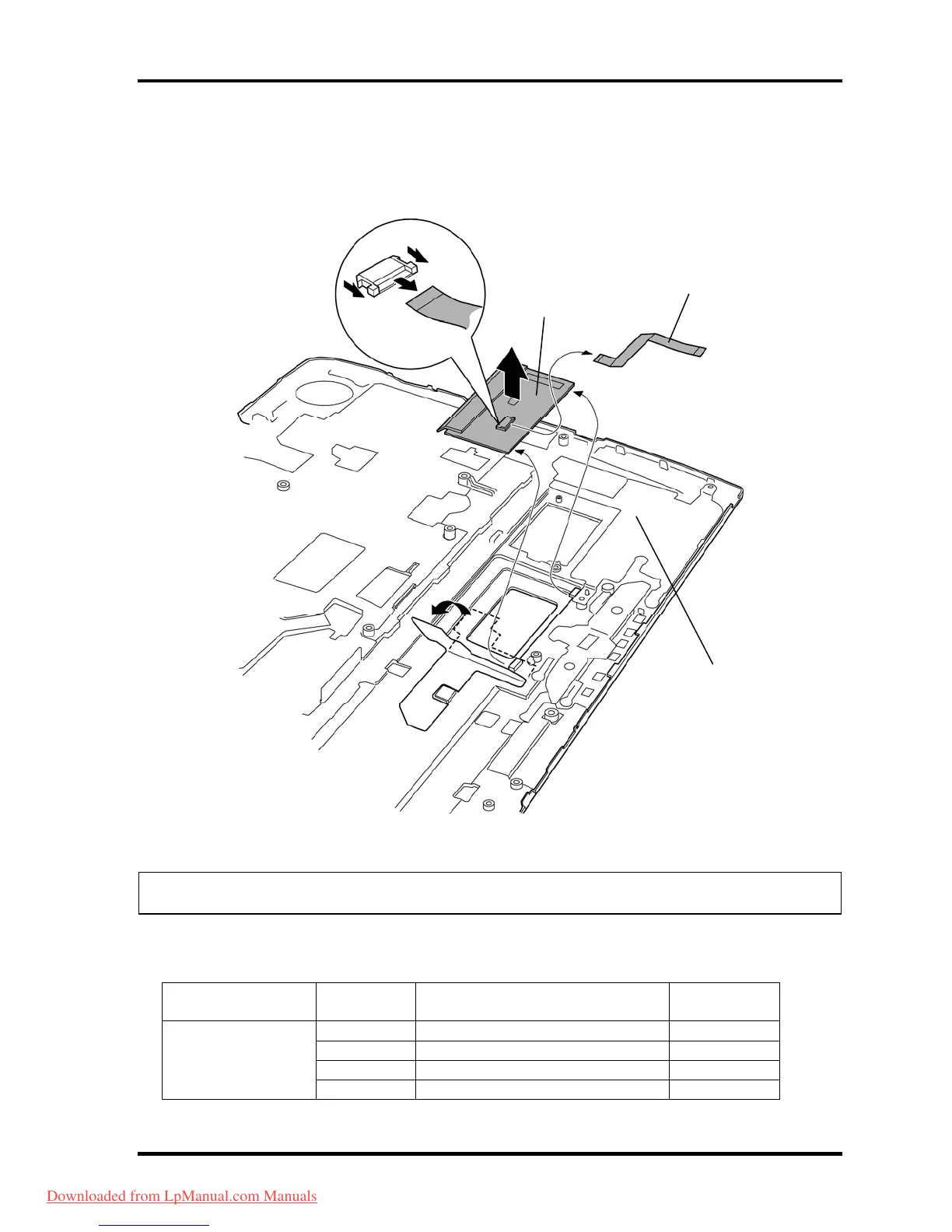

Figure 4-30 Removing the touch pad
NOTE: Do not reuse the removed touch pad. Be sure to use a new touch pad.
Please prepare required parts in advance, when replacing the following item.
ITEM
Parts List
ITEM No
PART NAME Quantity
50 COVER ASSY 1
27 9 BUTTON TOUCH SENSOR 1
39 TOUCH PAD 1
COVER ASSY
89 T-PAD BACK INSULATOR 1
