4 Replacement Procedures
4.26 CPU fin
/North bridge fin/CPU fan/CPU
3.
Re
m
ove the following
screws
and separate the
CPU fan
and
CPU fin
.
•
M2.5
×
6B
FLAT HEAD screw
×
2
CPU fin
M2.5x6B FLAT HEAD
CPU fan

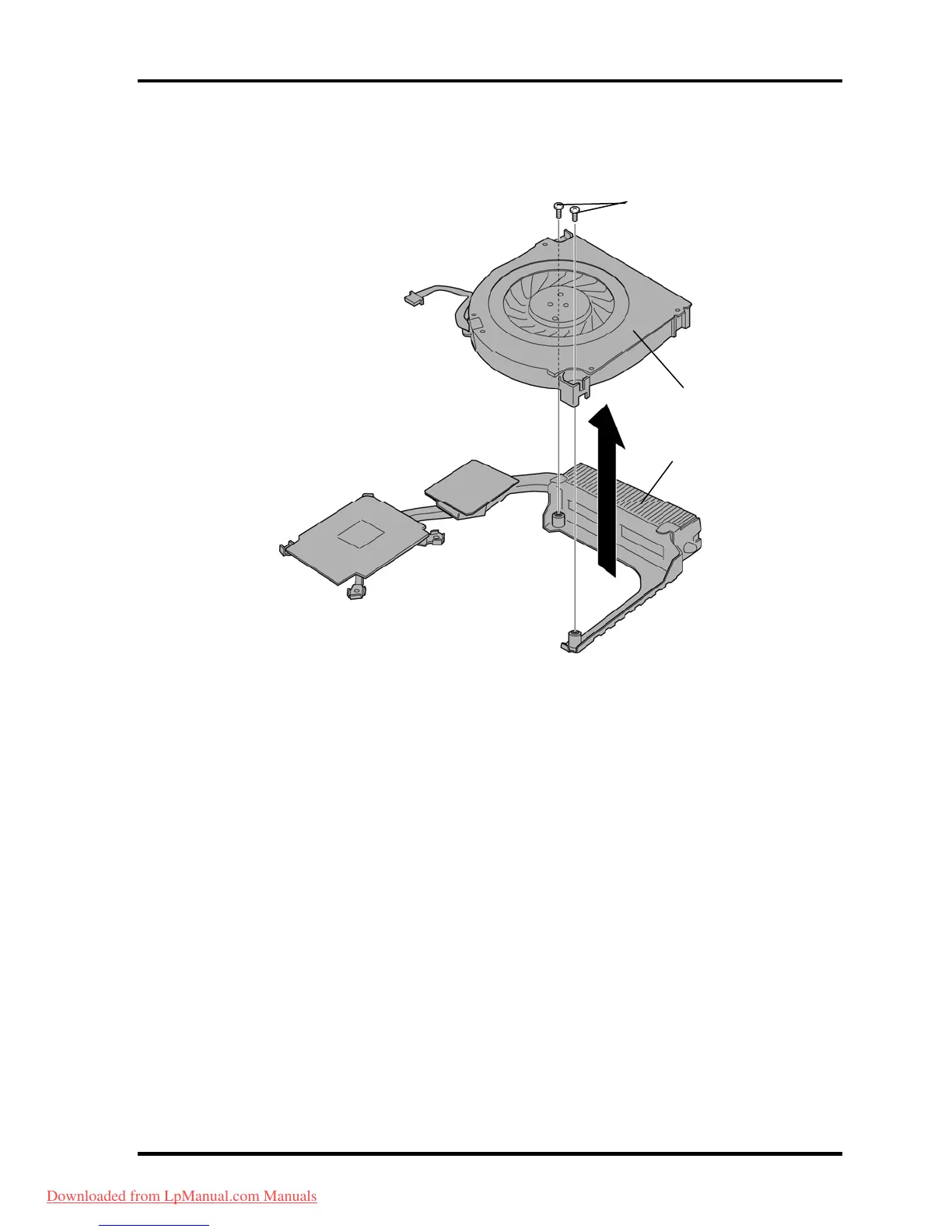

Figure 4-49 Removing the CPU fan
4-78
[CONFIDENTIAL
]
QOSMIO G50 Maint
enance Manua
l (960-683)
Downloaded from LpManual.com Manuals
307
309
