4.26 CPU fin/North bridge fin/CPU f
an/CPU
4 Replacement Procedures
4.
Unlock the
CPU
by rotating the
cam
on the CPU socket 90 degrees counterclockwise
with a flat-blade screwdriver.
5.
Remove the
CPU
.
Cam

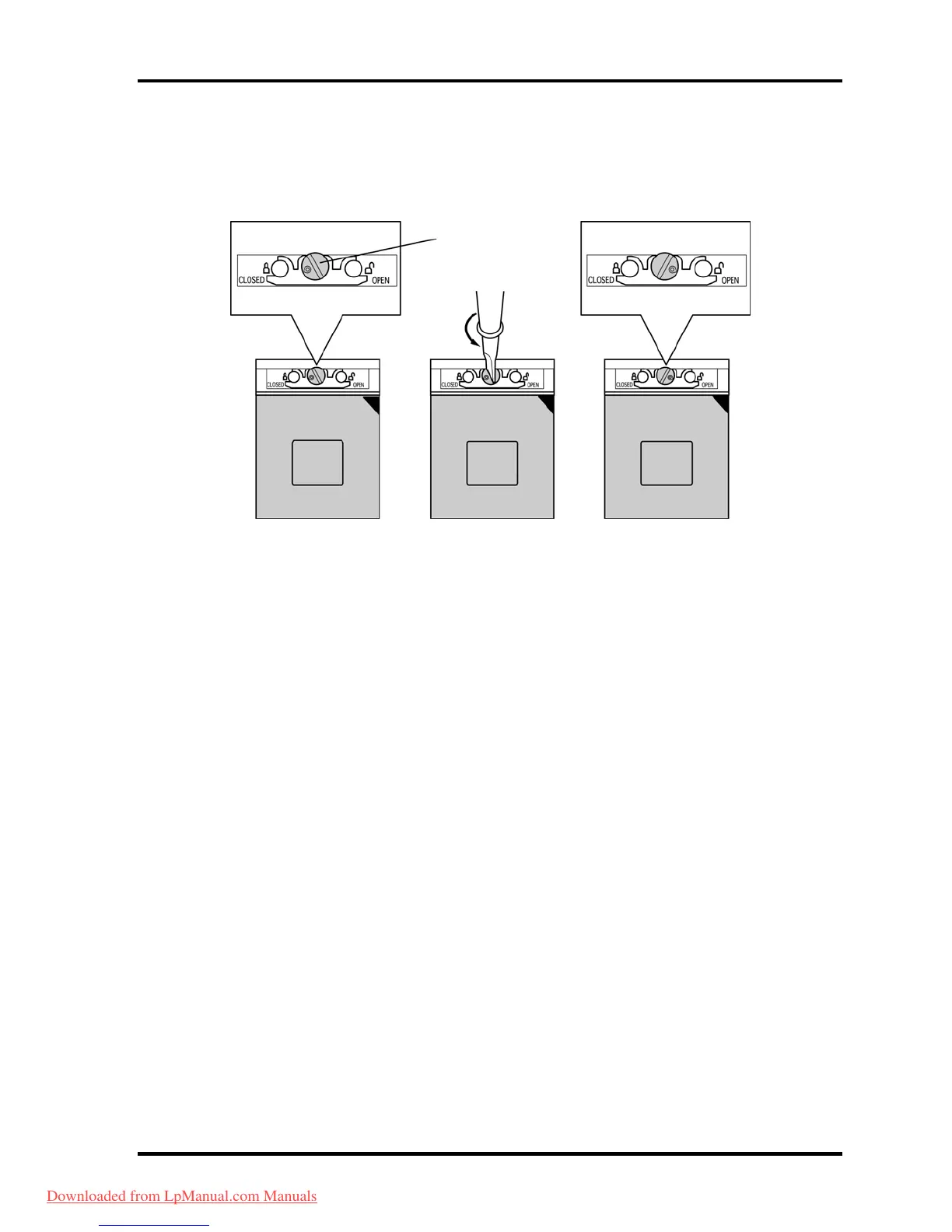

Figure 4-50 Removing the CPU
QOSMIO G50 Maint
enance Manual (
960-683)
[CONFIDENTIAL]
4-79
