4.25 VGA fin/VGA/SPURS fin/SPURS 4 Replacement Procedures
4. Remove the following screws and disconnect the VGA and SPURS from the
connector CN5900 and CN2800 on the system board.
• M2.0×4B BIND screw ×6
M2.0x4B BIND
VGA
SPURS
CN2800
CN5900
M2.0x4B BIND
M2.0x4C BIND

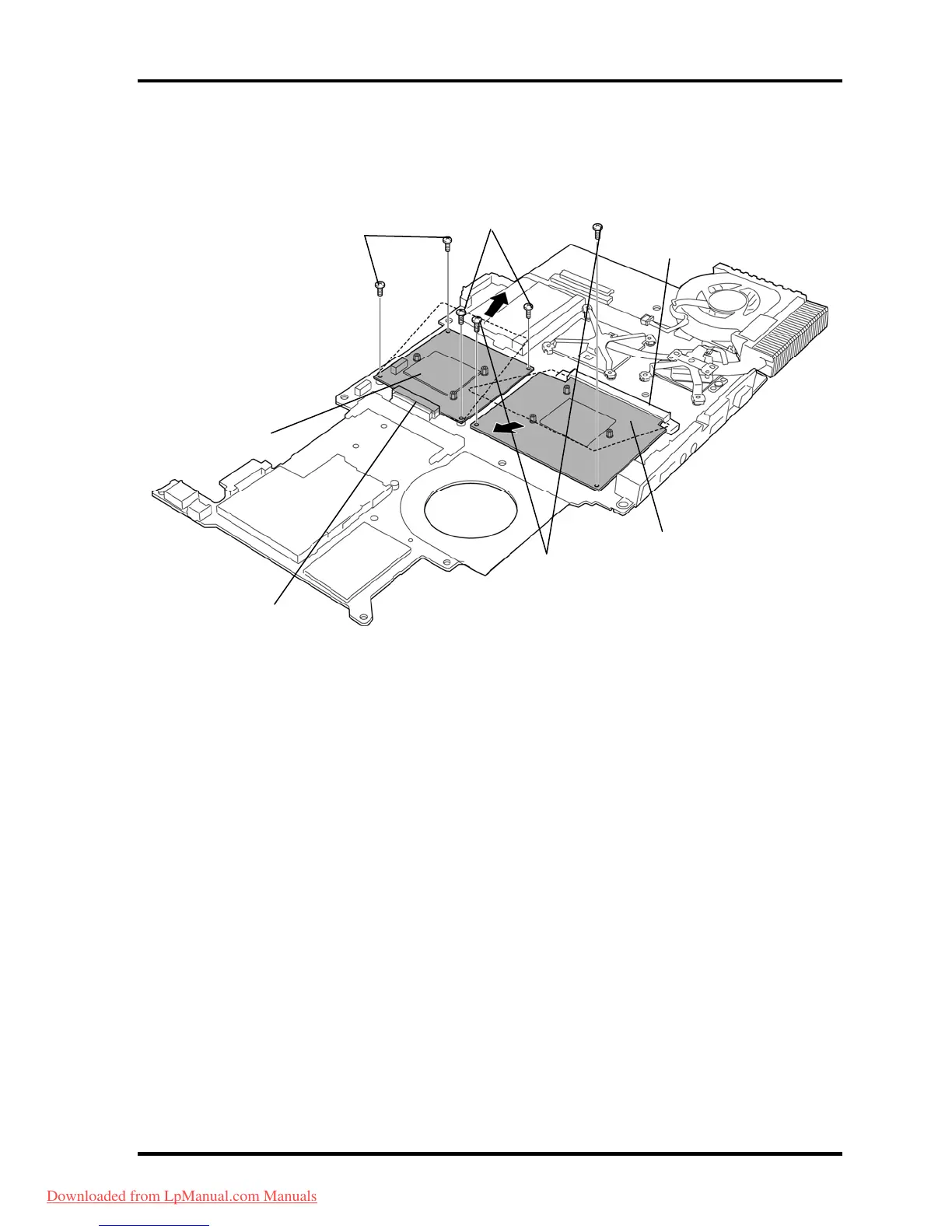

Figure 4-45 Removing the VGA/SPURS
QOSMIO G50 Maintenance Manual (960-683) [CONFIDENTIAL] 4-73
