4 Replacement Procedures 4.25 VGA fin/VGA/SPURS fin/SPURS
5. Remove the following screws and VGA holder/VGA fin.
• M2.0×4B BIND screw ×3
6. Remove the following screws and disconnect the VGA from the connector CN5900
on the system board.
• M2.0×4B BIND screw ×2
M2.0x4B BIND
VGA holder
VGA fin
VGA
CN5900
M2.0x4B BIND

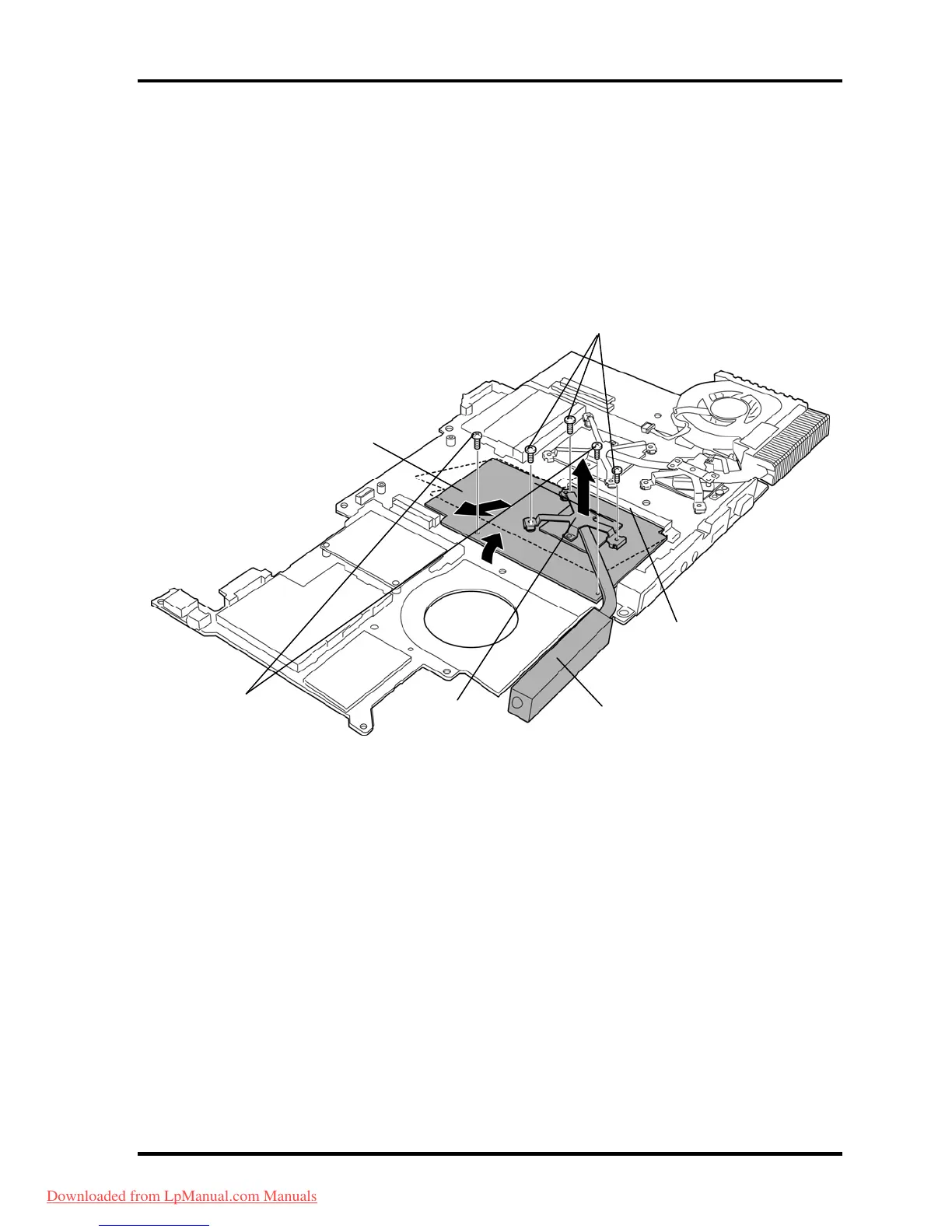

Figure 4-46 Removing the VGA
4-74 [CONFIDENTIAL] QOSMIO G50 Maintenance Manual (960-683)
