4.36 Internal microphone/Camera module 4 Replacement Procedures
2. Disconnect the camera/microphone cable from the connector on the camera module
and peel off the camera module from the slot.
Camera module
Camera/microphone cable

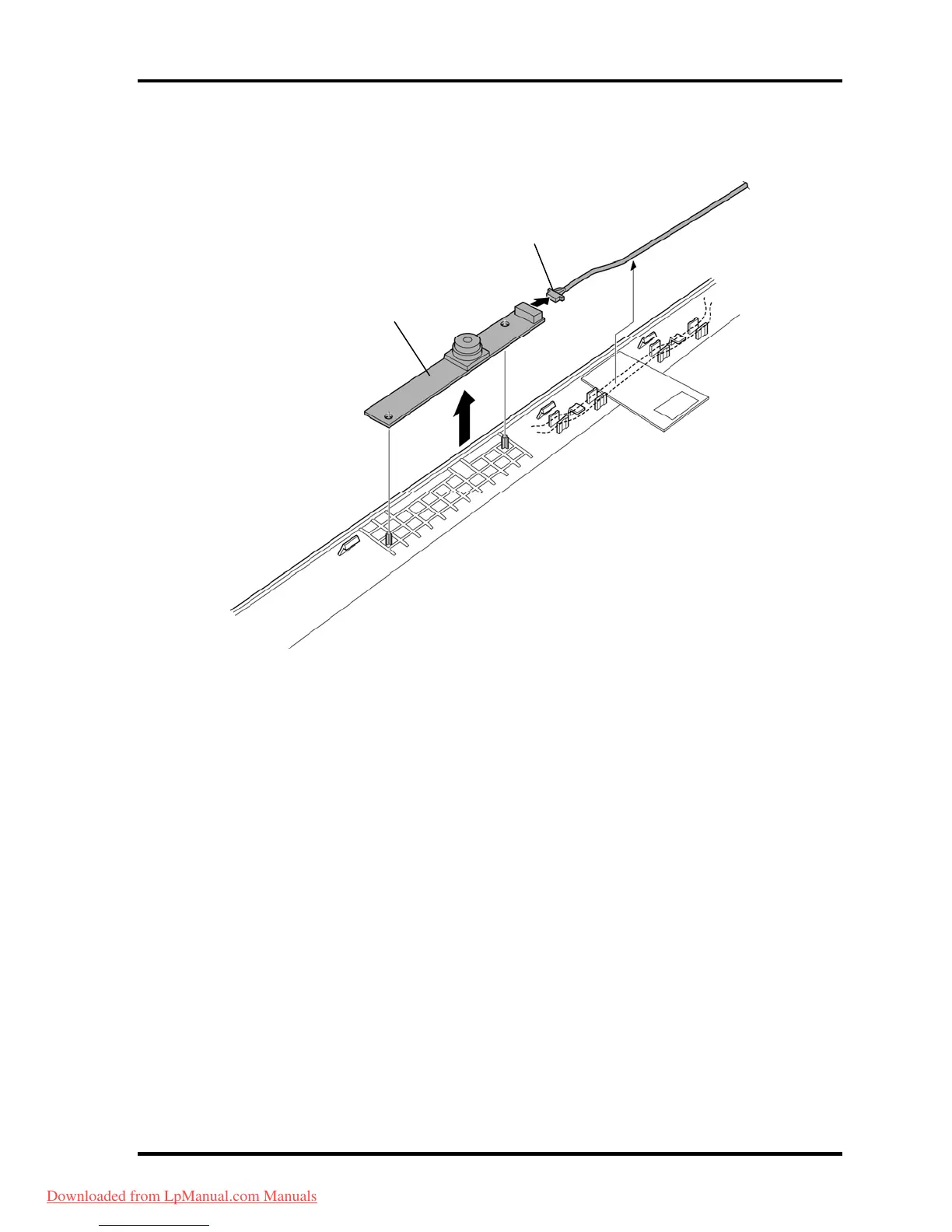

Figure 4-72 Removing the camera module
QOSMIO G50 Maintenance Manual (960-683) [CONFIDENTIAL] 4-107
