4 Replacement Procedures 4.38 Fluorescent lamp
2. Remove the yellow tape, lamp-wire tape and Al tape.
Lamp-wire tape
Bottom Al tape
Yellow tape

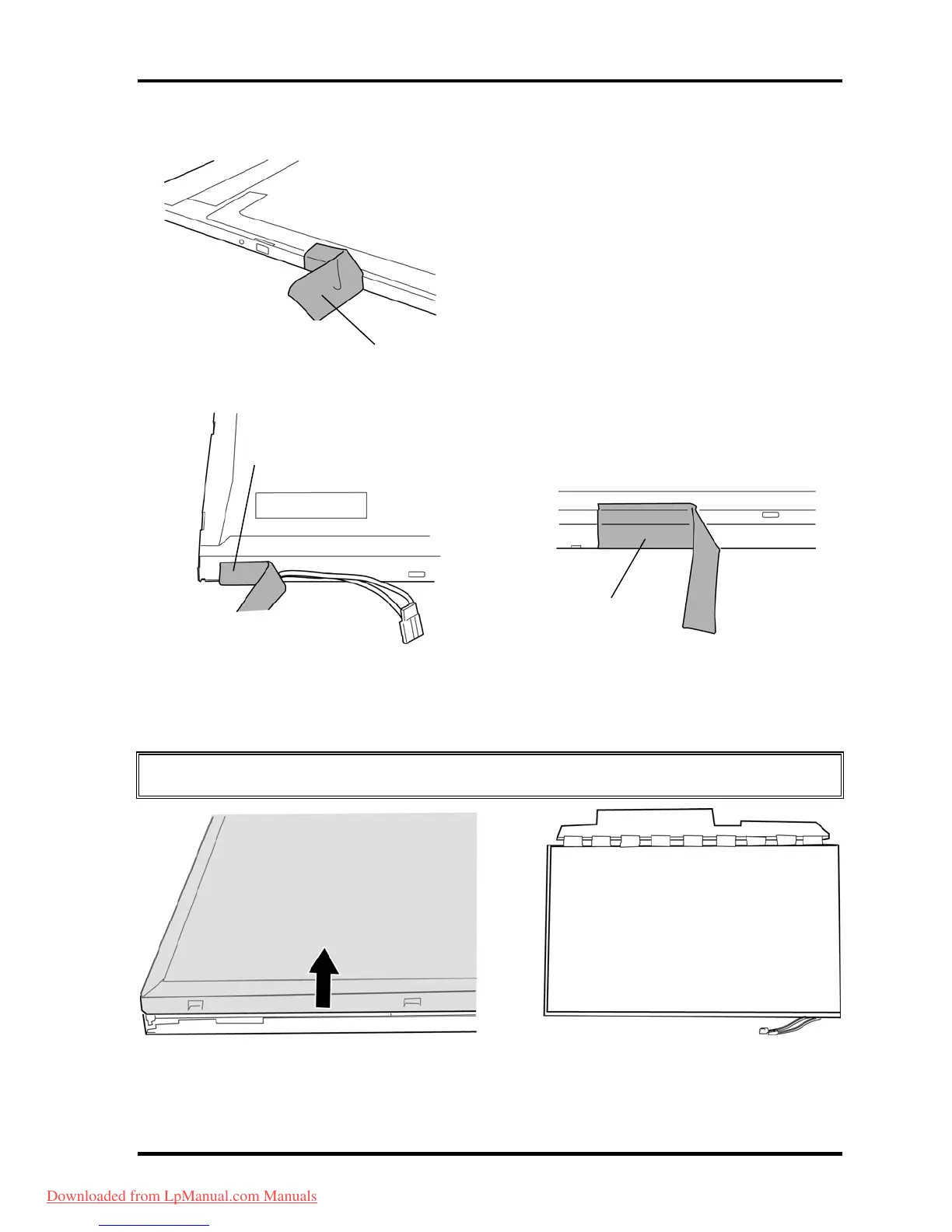

Figure 4-81 Replacing Samsung fluorescent lamp (FHD) (2)
3. Separate the top chassis and molded frame.
CAUTION: Remove in the order of bottom hook and side hooks (left and right).
Figure 4-82 Replacing Samsung fluorescent lamp (FHD) (3)
4-118 [CONFIDENTIAL] QOSMIO G50 Maintenance Manual (960-683)
