Toshiba Tecra S3 Maintenance Manual

Tests and Diagnostics
3.10 Display Test
To execute the Display Test, select 4 from the DIAGNOSTIC TEST MENU, press Enter
and follow the directions on the screen. Move the highlight bar to the subtest you want to
execute and press Enter.
Subtest 01 VRAM read/write for VGA
This subtest writes the constant data (AAh and 55h) to the video RAM. The
data is read and compared to the original data.
Subtest 02 Gradation for VGA

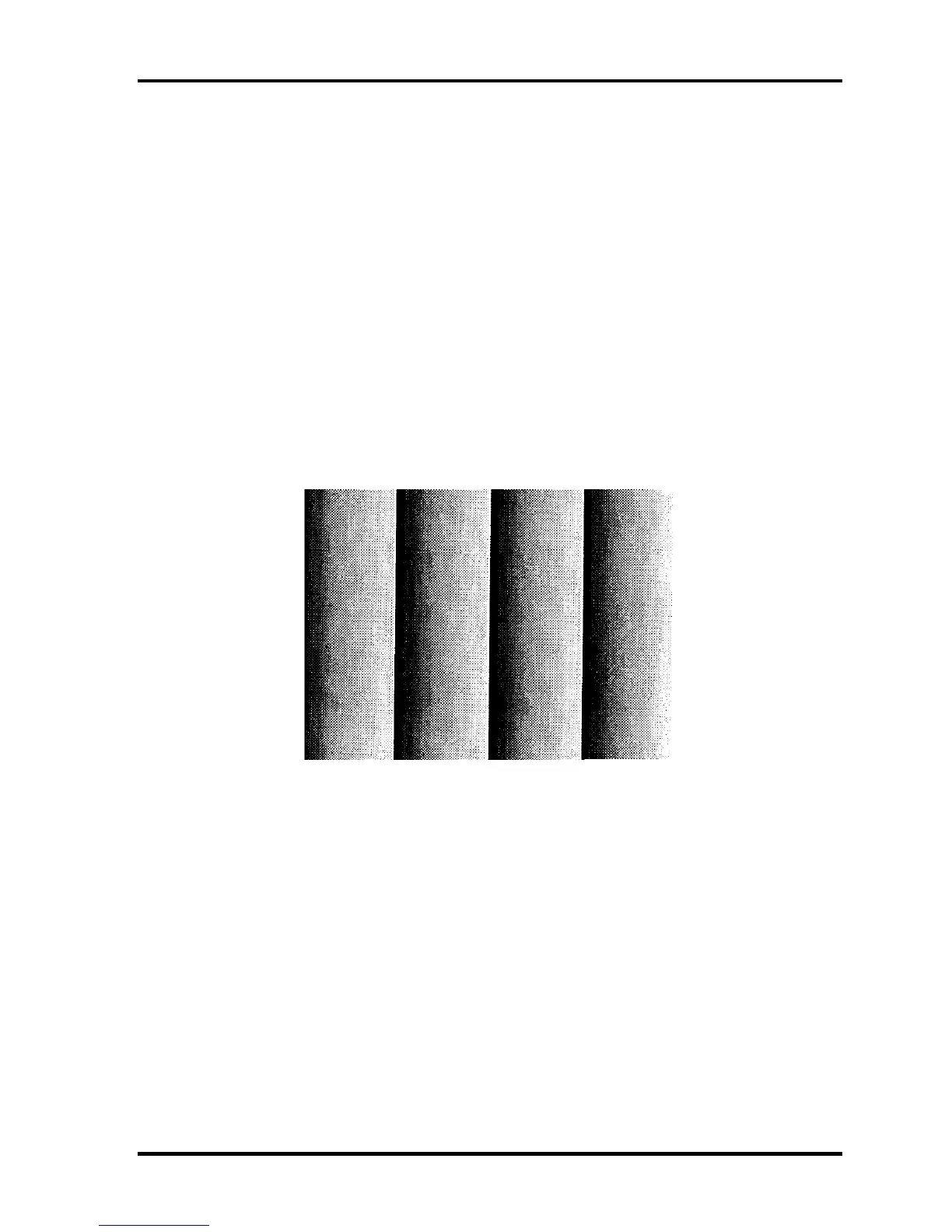

This subtest displays four colors: red, green, blue and white from left to right
across the screen from black to maximum brightness. The display below
appears on the screen, when this subtest is executed.
To exit this subtest and return to the DISPLAY TEST menu, press Enter.
Subtest 03 Gradation for LCD
This subtest displays bands of gradations for mixed colors, then for red, green,
and blue. Next, it displays eight solid colors full screen: red, semi-red, green,
semi-green, blue, semi-blue, white and semi-white. Each color displays for
three seconds.
TECRA S3 Maintenance Manual (960-532) [CONFIDENTIAL] 3-27

Toshiba Tecra S3 Specifications

General

Processor cache	2 MB
Processor frequency	2.26 GHz
Processor cache type	L2
Processor front side bus	533 MHz
HDD interface	SATA
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Total storage capacity	100 GB
Internal memory	1 GB
Internal memory type	DDR2-SDRAM
Maximum internal memory	2 GB
Memory layout (slots x size)	2 x 0.5 GB
Maximum resolution	2048 x 1536 pixels
Discrete graphics card model	NVIDIA GeForce Go 6600
Maximum graphics card memory	0.128 GB
Display diagonal	15 \
Display resolution	1400 x 1050 pixels
Native aspect ratio	4:3
Motherboard chipset	Intel® 915PM Express
CD-R write speed	24 x
DVD+R read speed	8 x
DVD+R write speed	4 x
DVD-RW write speed	2 x
DVD+R Double Layer write speed	2.4 x
Supported audio standards	MIDI
Number of built-in speakers	2
Front camera	No
Modem speed	56 Kbit/s
Wireless technology	Bluetooth
Disc types supported	CD-R, CD-ROM, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RAM, DVD-ROM, DVD-RW
Networking type	802.11b/g
Networking features	10/100/1000 Base-TX
Bundled software	- Microsoft Office OneNote 2003; - Sonic Record Now!; - InterVideo WinDVD; - Norton Internet Security 2005 (incl. 90 dagen gratis Internet-updates); - Toshiba RAID software; - Toshiba Management Console; - ConfigFree.
Operating system installed	Windows XP Professional
TV-out type	S-Video
Charging port type	DC-in jack
PS/2 ports quantity	0
USB 2.0 ports quantity	3
Parallel ports quantity	1
CardBus PCMCIA slot type	Type II
Pointing device	Touchpad + Accupoint II
Keyboard number of keys	86
Certification	S.M.A.R.T.
External video modes refresh rate (max)	100 Hz
External video modes non-interlaced resolution with max. refresh rate	1600 x 1200 pixels
AC adapter input voltage	100/240 V

Weight and Dimensions

Depth	280 mm
Width	338 mm
Height	29.7 mm
Weight	2850 g
