4.28 Speaker
Removing the Speaker
To remove the speaker, follow the steps below and refer to Figure 4-54.
1. Peel off four insulators.
2. Remove the left and right speakers from the slots.
Speaker
Speaker
Insulator

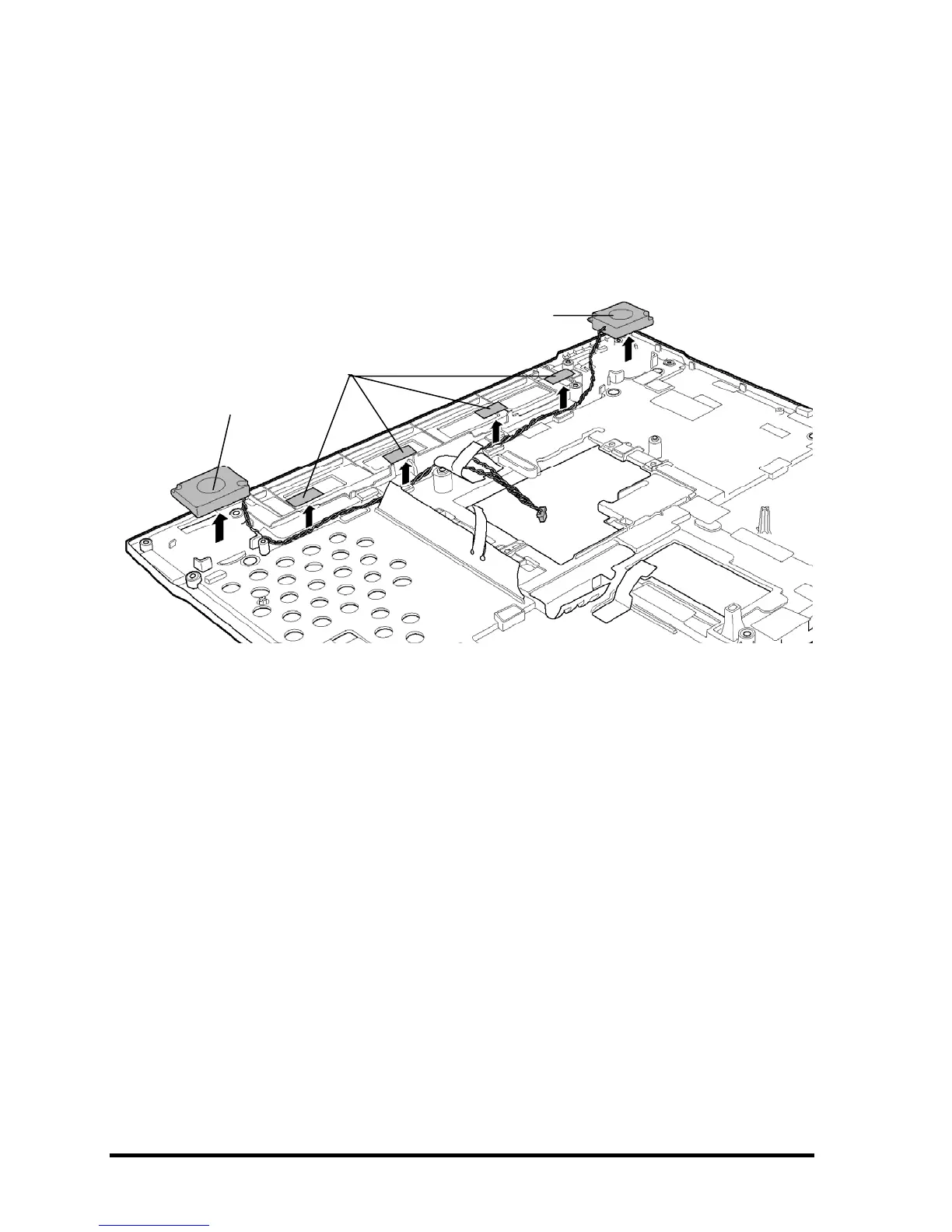

Figure 4-54 Removing the speaker
Installing the Speaker
To install the speaker, follow the steps below and refer to Figure 4-54.
1. Install the speakers (right and left) to the each slot.
2. Seat the speaker cables in place and stick four insulators.
4-72 [CONFIDENTIAL] TECRA S3 Maintenance Manual (960-532)
