Toshiba Tecra S3 - US Board (FDRUS*) Front and Back View

Appendix B Board Layout Appendices
B.3 US Board (FDRUS*) Front and Back View
(C)
(B)
(front)
(A)
(back)

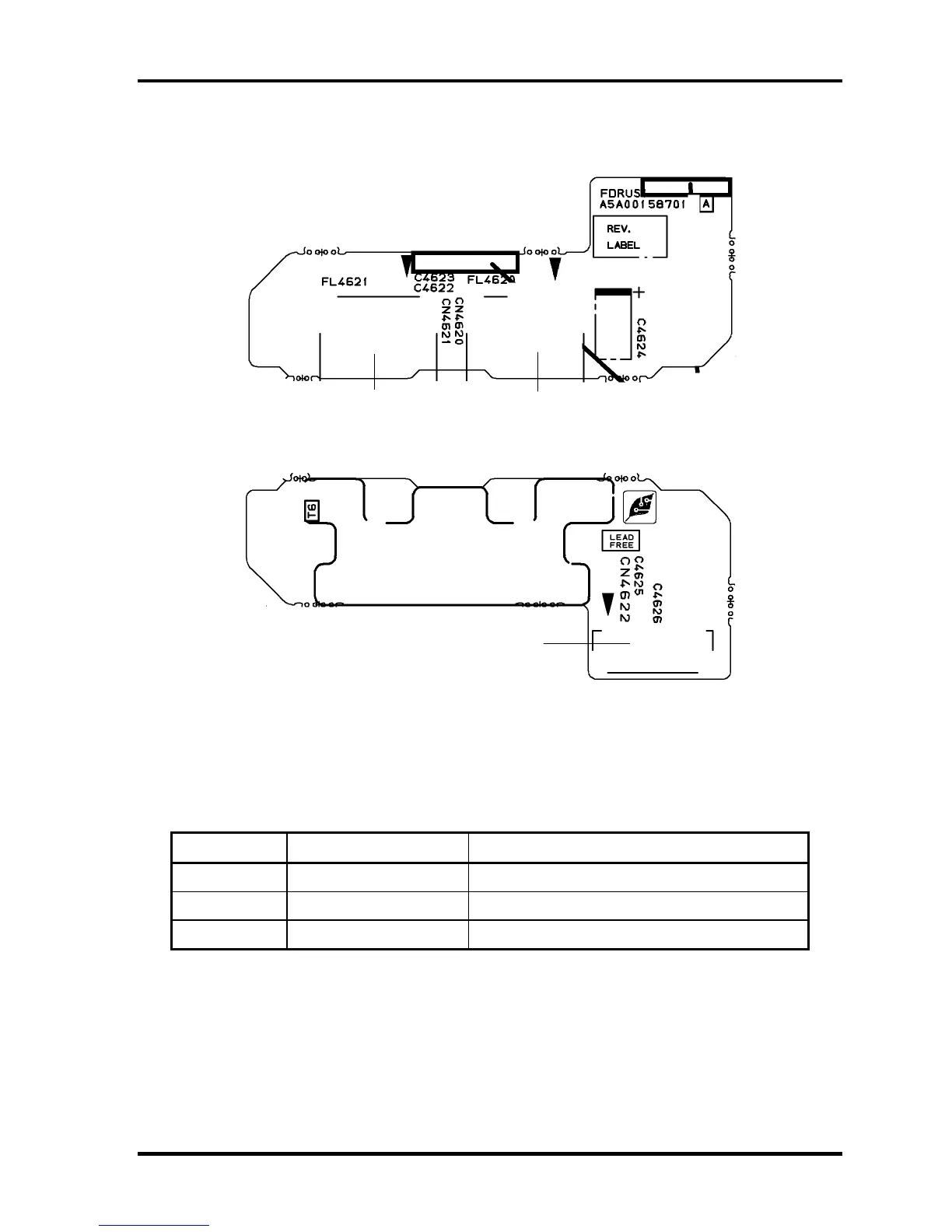

Figure B-3 US Board (FDRUS*) layout (front/back)
Table B-3 US Board (FDRUS*) connectors
Mark Number Name
(A) CN4622 System board I/F connector
(B) CN4620 USB 3connector
(C) CN4621 USB 4 connector
