4.22 System board
Removing the System board
To remove the system board, follow the steps below and refer to Figure 4-35 to 4-39.
1. Remove the following screw and HDD cable holder.
• M2.5×6S Tapping screw ×1
2. Take out the HDD cable of the HDD connector side from the slot.
M2.5×6S Tapping
HDD cable holder
HDD cable

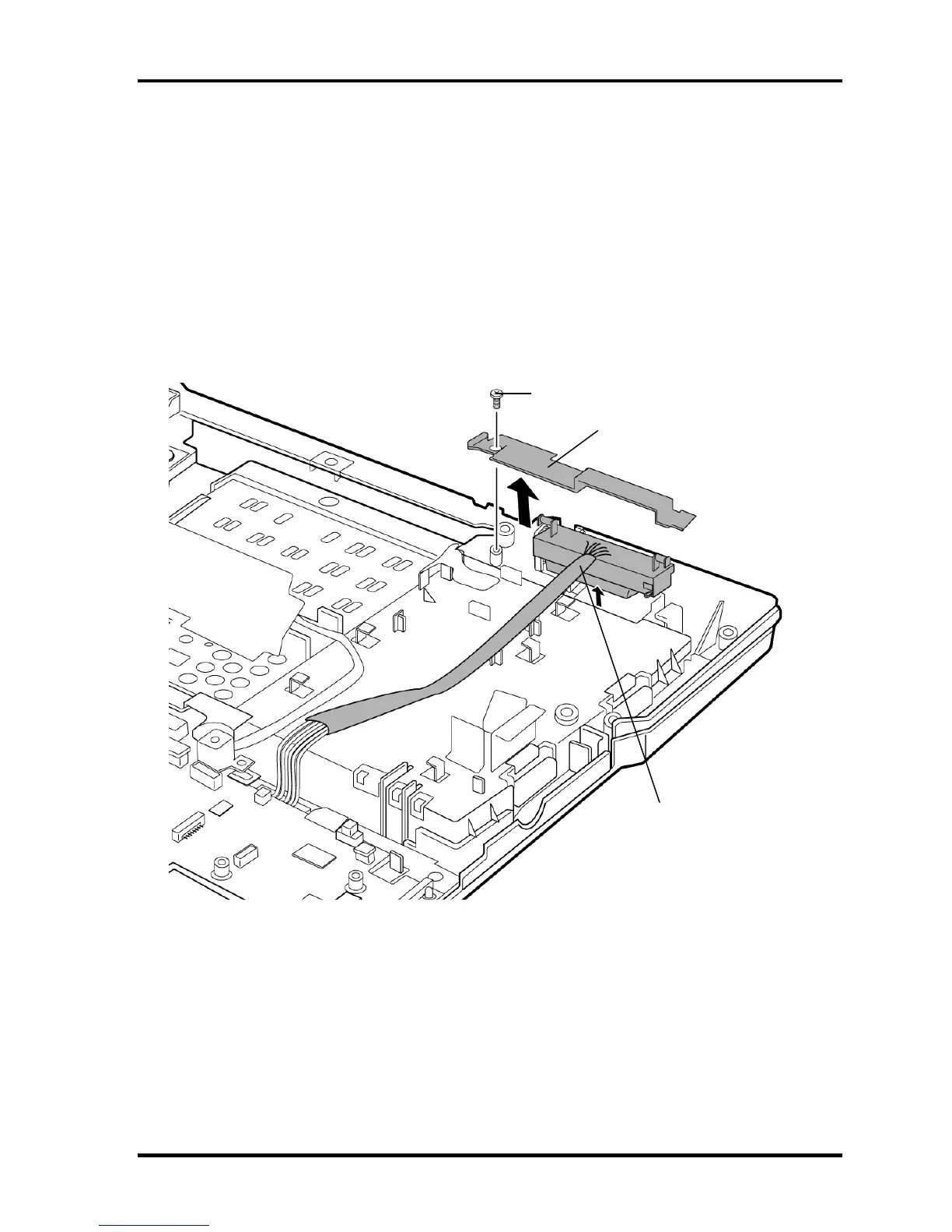

Figure 4-35 Removing the HDD cable holder
TECRA S3 Maintenance Manual (960-532) [CONFIDENTIAL] 4-52
