TRANSPORTATION AND INSTALLATION MANUAL
JOEP
JOFP
JOES
JOFS
JOES
JOFS
Disconnect.
(HAND side)
Grommet inner dia. 7 mm
Cable inlet (2 places)
From PLC, etc.

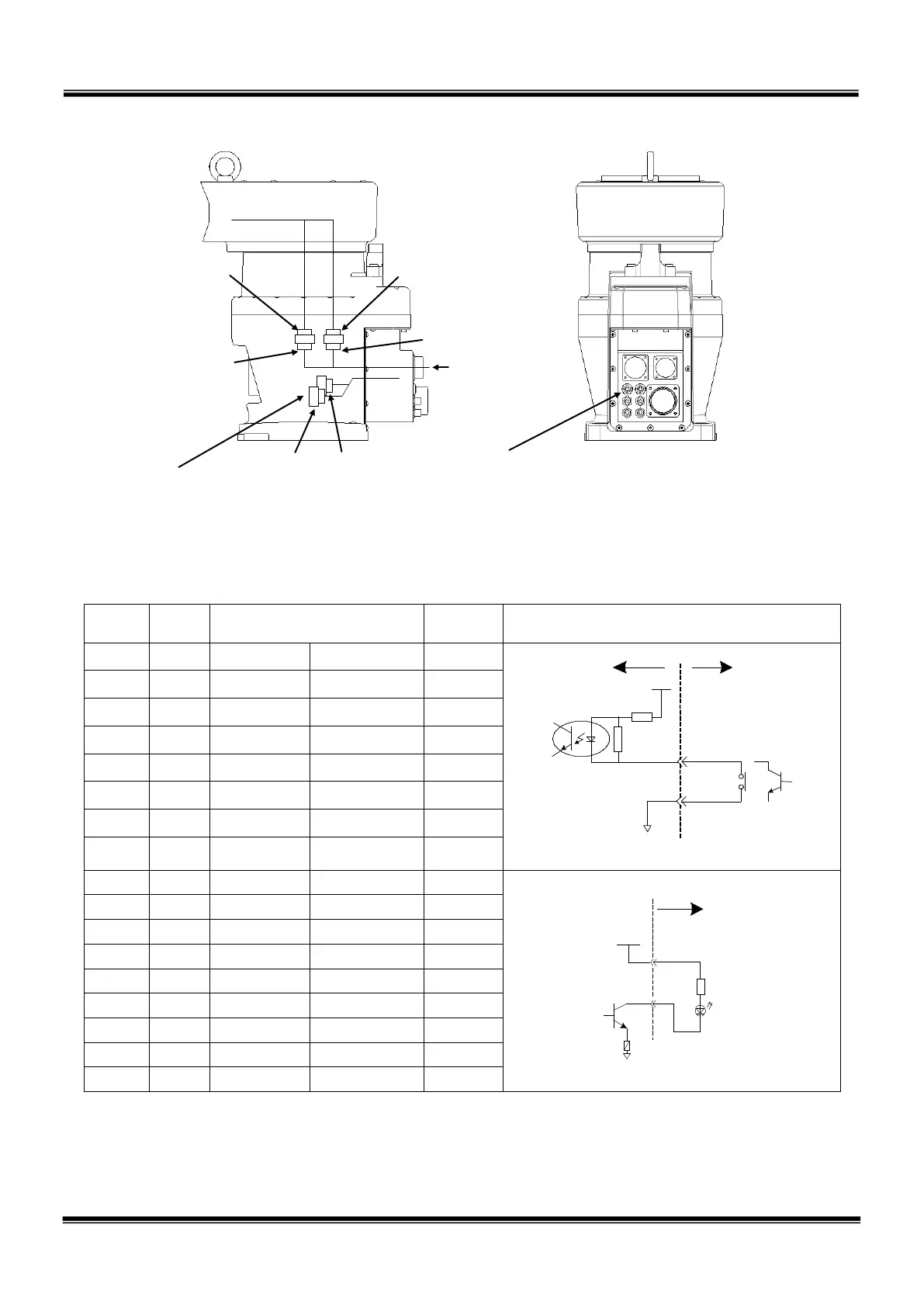

Fig. 5.2 Wiring to PLC, etc.
Input/output signal connector CN0 (Type-N)
Pin
(D-SUB)
Pin
(Cannon)
Signal name
Signal
No.
Input/output circuit
and example of connections
A Not used
?
?
P24V
?
[Source type (“+” common)]
TS3100
User side
P24G
Contact or
transistor
B Not used
C Not used
3 D D-IN0 Input signal 0 201
4 E D-IN1 Input signal 1 202
5 F D-IN2 Input signal 2 203
6 G D-IN3 Input signal 3 204
7 H D-IN4 Input signal 4 205
8 J P24G 0 V
Minus common (X8GN)
User side
P24V
●
P24G
[ Sink type ("-" common) ]
K Not used
10 L D-OUT0 Output signal 0 201
11 M D-OUT1 Output signal 1 202
12 N P24V 24 V
13 P D-OUT2 Output signal 2 203
14 R D-OUT3 Output signal 3 204
15 S P24V 24 V
9 T Shield (FG)
STE 85305
