Toshiba TH650A - Page 55

TRANSPORTATION AND INSTALLATION MANUAL

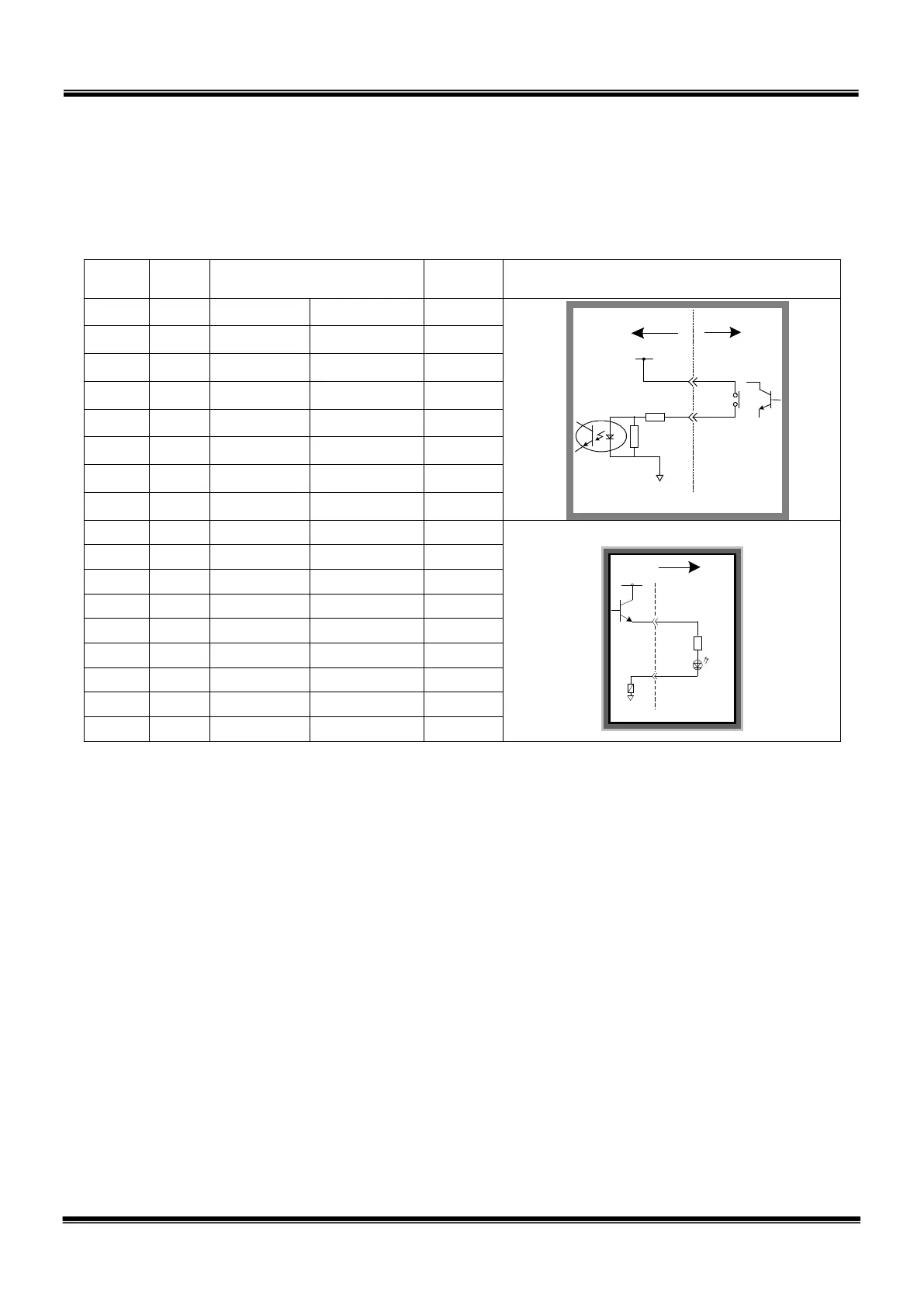

Input/output signal connector CN0 (Type-P)
Pin
(D-SUB)
Pin
(Cannon)
Signal name
Signal
No.
Input/output circuit
and example of connections
A Not used
B Not used
C Not used
3 D D-IN0 Input signal 0 201
4 E D-IN1 Input signal 1 202
5 F D-IN2 Input signal 2 203
6 G D-IN3 Input signal 3 204
7 H D-IN4 Input signal 4 205
8 J P24V 24 V
Plus common (X8GI)
User side
P24V
P24G
[ Source type ("+" common) ]
●
K Not used
10 L D-OUT0 Output signal 0 201
11 M D-OUT1 Output signal 1 202
12 N P24G 0 V
13 P D-OUT2 Output signal 2 203
14 R D-OUT3 Output signal 3 204
15 S P24G 0 V
9 T Shield (FG)
?
?
P24G
P24V
Contact or
transistor
User side
TS3100
[Sink type ( “-” common)]
STE 85305
– 54A –
