TRANSPORTATION AND INSTALLATION MANUAL
3. Remove the cover at the lower side
of the arm 2.
4. Mount the wiring panel which was
dismounted in Step 2.
5. The cables connecting the panel
with the actuator are fabricated long
so that the panel can be mounted on
the lower side, and are secured to
the bracket with TY-RAP. Cut the
secured TY-RAP, using nippers,
etc., extend the cables, then connect
the connectors coming from the
panel. After the connection, secure
the cables to the guide, using the
TY-RAP so that the cables will not
collide with the axis 3 or 4 belt.
Secure any loosened cable to the
bracket also, using the TYRAP.
6. Finally, secure the cover
disconnected in Step 3 to the
location where the panel was
mounted before, then attach the
cover. At this time, be sure to set
the nylon washers.
Take careful precautions not to
damage the cover.

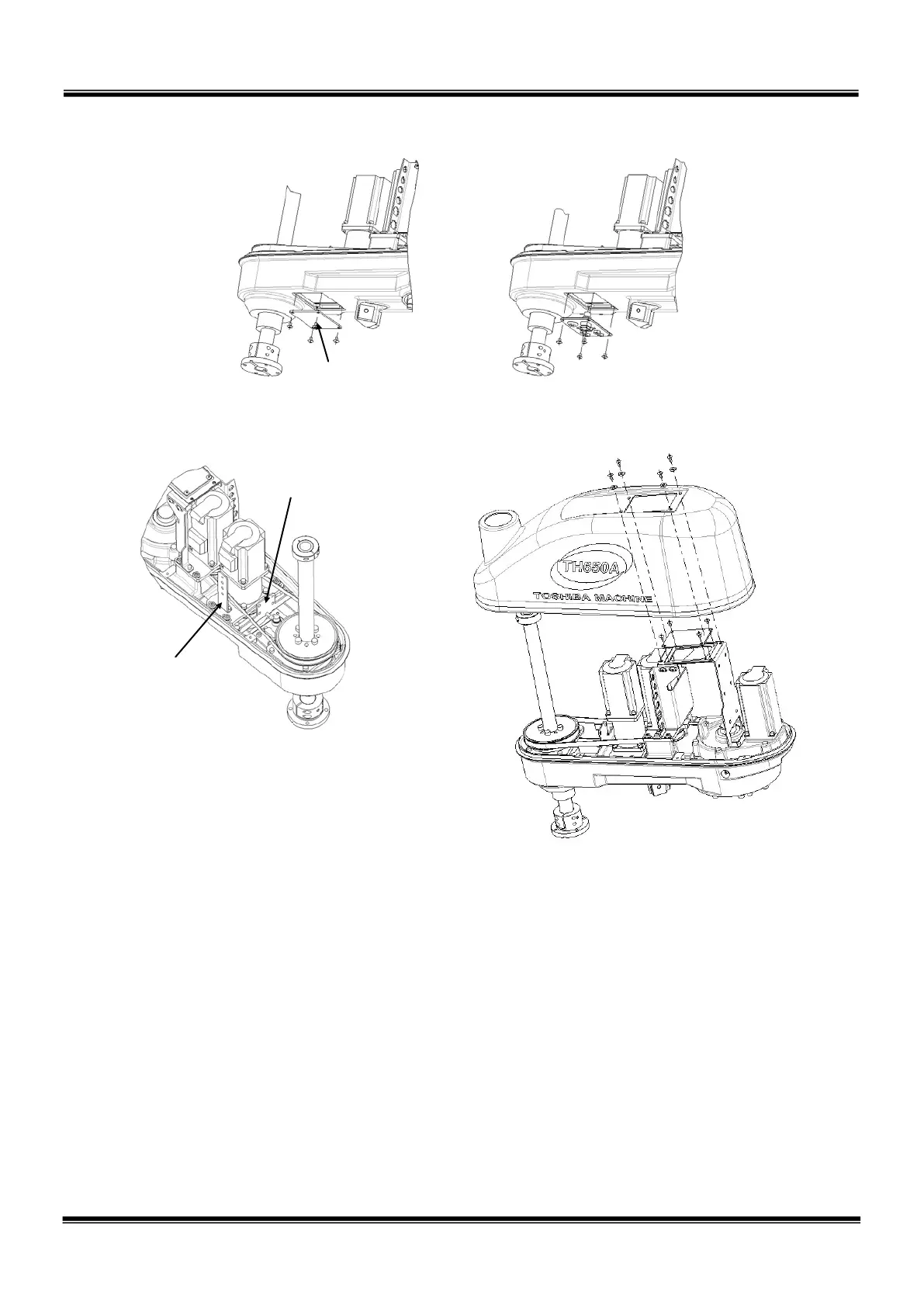

Fig. 5.5 Procedures for relocating wiring panel
STE 85305
ā 59 ā
