TRANSPORTATION AND INSTALLATION MANUAL
Setting of acceleration/deceleration in
relation to offset (Axis 3)
Setting of maximum speed in relation to
offset (Axis 3)
Setting of acceleration/deceleration in
relation to offset (Axis 4)
Setting of maximum speed in relation to
offset (Axis 4)

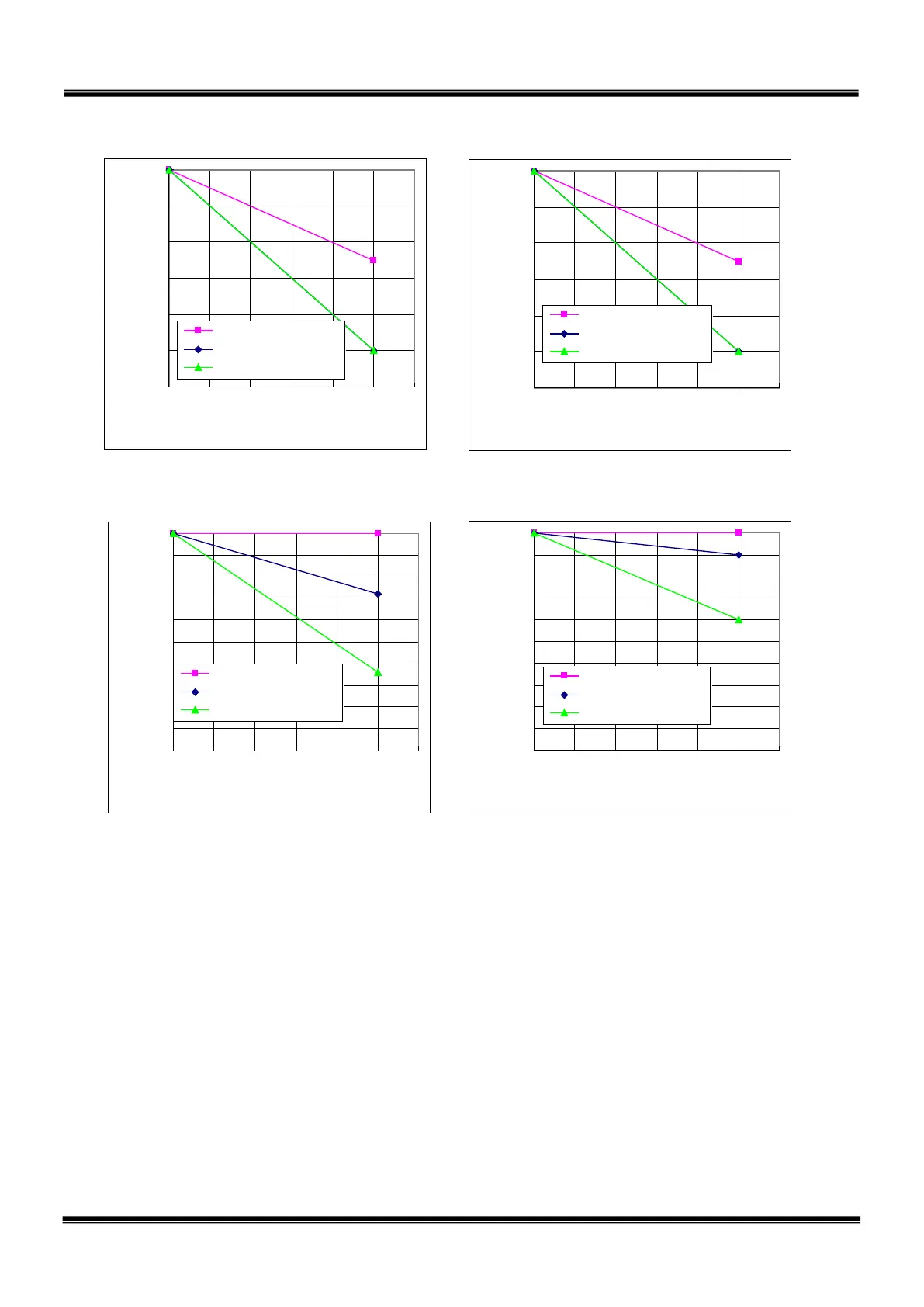

Fig. 5.11 Setting of maximum speed and acceleration/deceleration in relation to gravity
center offset (Axes 3 and 4)
88
90
92
94
96
98
100
0 20 40 60 80 100 120
Of f set (mm)
Acceleration/deceleration (%)
Load mass =< 2 (kg)
2 (kg) < Load mass =< 5 (kg)
Load mass > 5 (kg)
88
90
92
94
96
98
100
0 20 40 60 80 100 120
Of f set (mm)
Maximum speed (%)
Load mass =< 2 (kg)
2 (kg) < Load mass =< 5 (kg)
Load mass > 5 (kg)
0
10
20
30
40
50
60
70
80
90
100
0 20 40 60 80 100 120
Of f set (mm)
Acceleration/deceleration (%)
Load mass =< 2 (kg)
2 (kg) < Load mass =< 5 (kg)
Load mass > 5 (kg)
0
10
20
30
40
50
60
70
80
90
100
0 20 40 60 80 100 120
Of f set (mm)
Maximum speed (%)
Load mass =< 2 (kg)
2 (kg) < Load mass =< 5 (kg)
Load mass > 5 (kg)
・
