Toshiba TOSVERT VF-nC3 User Manual

E6581595
A-4
1
Example of the label

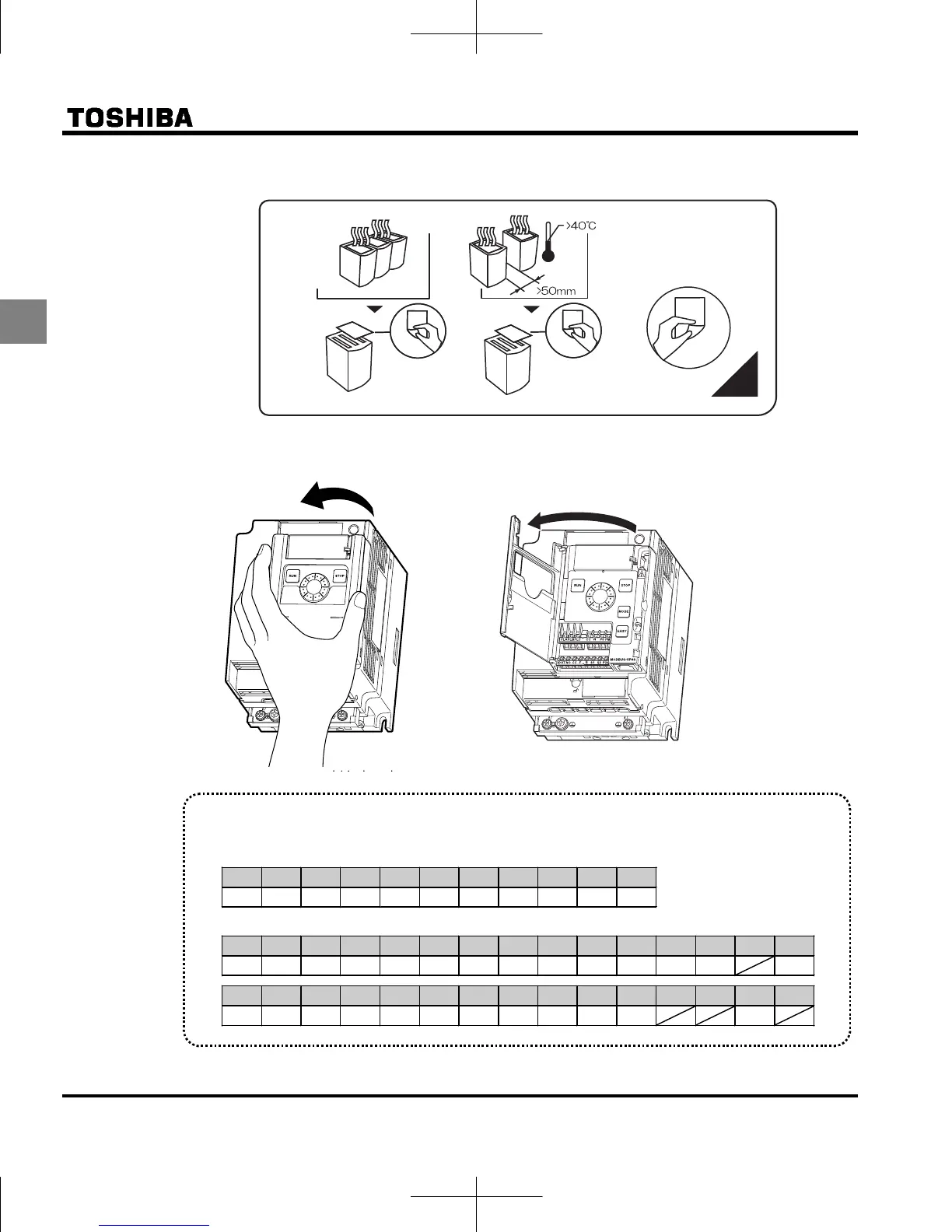

[Opening the cover]
l14 l d

About the monitor display
The LED on the operation panel uses the following symbols to indicate parameters and operations.
LED display (numbers)
0 1 2 3 4 5 6 7 8 9 -
0 1 2 3456789-
LED display (letters)
Aa Bb C c Dd Ee Ff Gg H h I i Jj Kk Ll
a b c wdefghki}j l
Mm Nn O o Pp Qq Rr Ss Tt Uu Vv Ww Xx Yy Zz
m n o xpqrstuv y

Toshiba TOSVERT VF-nC3 Specifications

General

Model	VF-nC3
Category	Inverter
Output Frequency Range	0.1 to 400 Hz
Control Method	V/f control, sensorless vector control
Overload Capacity	150% for 60 seconds
Input Frequency	50/60 Hz
Enclosure Rating	IP20
Input Voltage	200-240V AC
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit
Ambient Temperature	-10°C to +50°C
Communication	Modbus RTU
Cooling Method	Fan Cooled
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m
Braking Unit	Built-in braking transistor (for models up to 22kW), External braking resistor required
