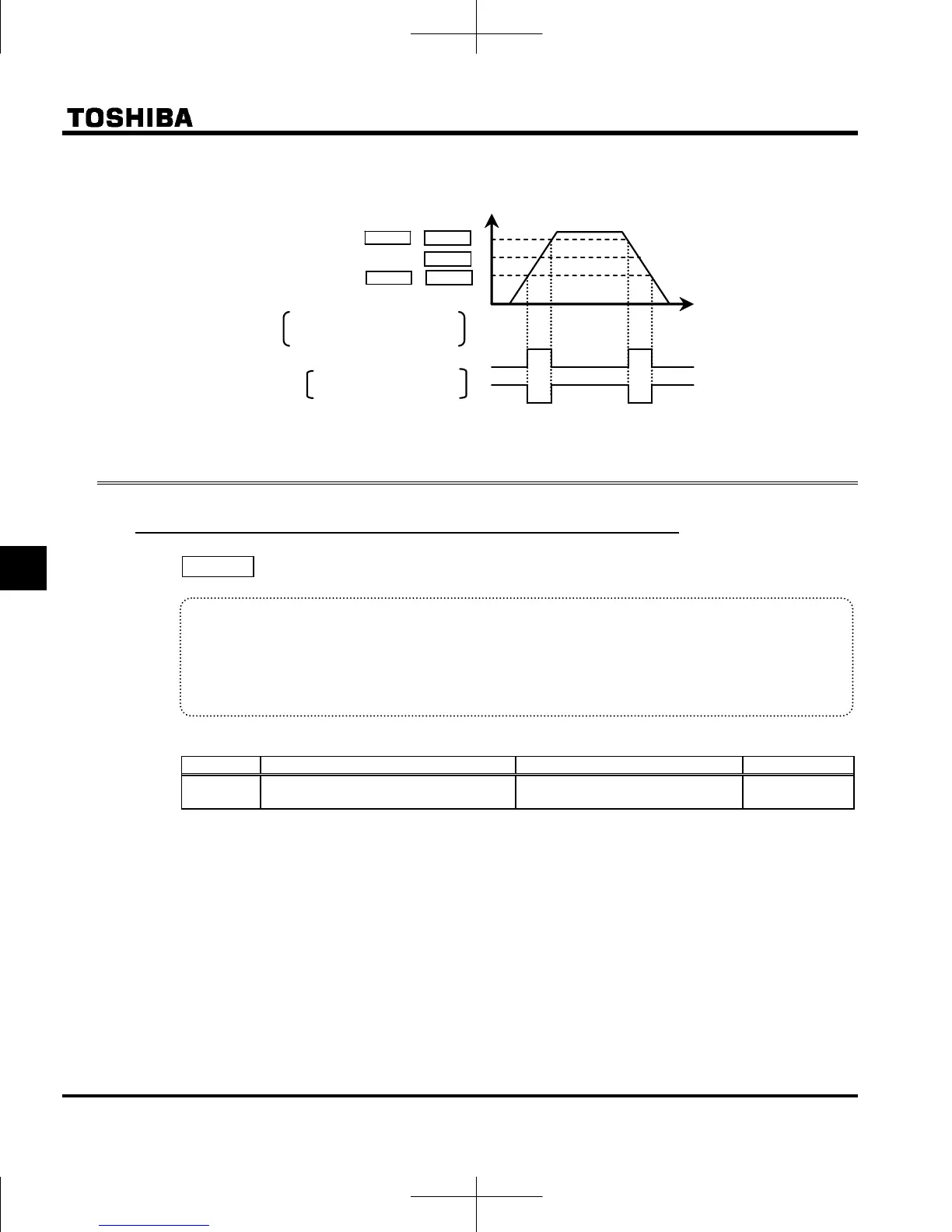

Toshiba TOSVERT VF-nC3 User Manual

E6581595
F-4
6
If the detection band value + the set frequency is less than the designated frequency
Set frequency attainment signal
: OUT-NO terminals
Inversion of set frequency
attainment signal
Output frequency [Hz]
Time [s]
 - 
ON
OFF
 + 

ON
OFF
0
6.2 Input signal selection
6.2.1 Priority selection (Both F and R are ON)
 : Priority selection (Both F and R are ON)
 Function
This parameter allows you to select the direction in which the motor runs when a forward run (F)
command and a reverse run (R) command are entered simultaneously.
1) Reverse
2) Slowdown stop
[Parameter setting]
Title Function Adjustment range Default setting

Priority selection (Both F and R are
ON)
0: Reverse
1: Slowdown stop
1

Toshiba TOSVERT VF-nC3 Specifications

General

Model	VF-nC3
Category	Inverter
Output Frequency Range	0.1 to 400 Hz
Control Method	V/f control, sensorless vector control
Overload Capacity	150% for 60 seconds
Input Frequency	50/60 Hz
Enclosure Rating	IP20
Input Voltage	200-240V AC
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit
Ambient Temperature	-10°C to +50°C
Communication	Modbus RTU
Cooling Method	Fan Cooled
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m
Braking Unit	Built-in braking transistor (for models up to 22kW), External braking resistor required
