Toshiba TOSVERT VF-nC3 User Manual

E6581595
J-5
10
① Input AC reactor
(ACL)
Non-fuse breaker
MCCB
Power supply
Magnetic contactor
MC
③
Zero-phase reactor
core-type
radio noise
reduction filter
DIN rail kit
⑧
②
DC reactor
(DCL)
N.F
N.F
VF－nC3
④
IM
EMC noise reduction filter
(Compliant with European
standards)
⑦
Braking resistor
⑥
Motor
EMC plate
High-attenuation
radio noise
reduction filter
Zero-phase reactor
core-type
radio noise
reduction filter
⑤
⑤
⑨
High-attenuation
radio noise
reduction filter
Braking module

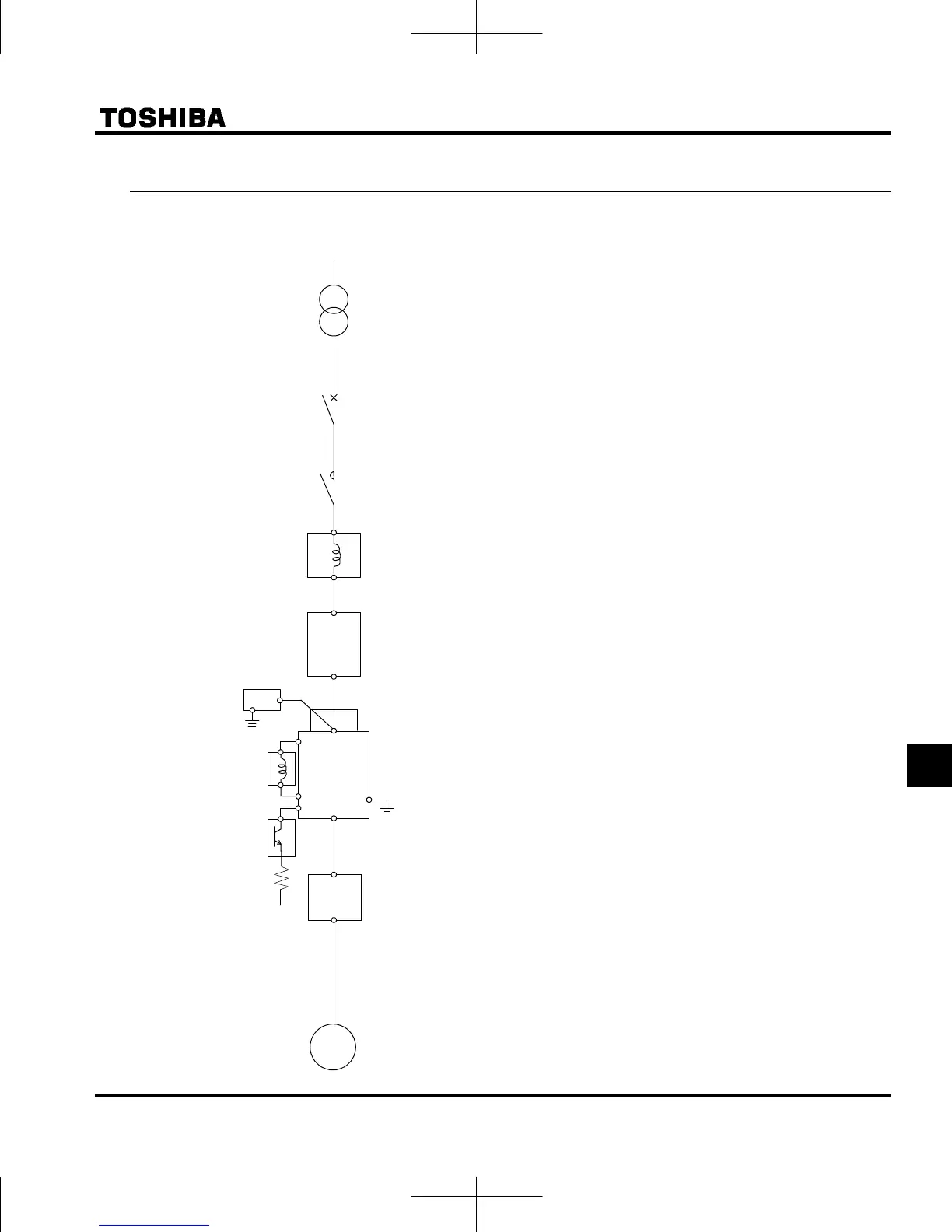

10.4 Optional external devices
The following external devices are optionally available for this inverter.
(10) Parameter writer : PWU003Z
: RKP002Z
(11) Extension panel : RKP007Z
(12) Remote control panel : CBVR-7B1
(13) Frequency meter : QS60T
(14) FRH kit : FRH kit
(15) USB communication converter : USB001Z

Toshiba TOSVERT VF-nC3 Specifications

General

Model	VF-nC3
Category	Inverter
Output Frequency Range	0.1 to 400 Hz
Control Method	V/f control, sensorless vector control
Overload Capacity	150% for 60 seconds
Input Frequency	50/60 Hz
Enclosure Rating	IP20
Input Voltage	200-240V AC
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit
Ambient Temperature	-10°C to +50°C
Communication	Modbus RTU
Cooling Method	Fan Cooled
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m
Braking Unit	Built-in braking transistor (for models up to 22kW), External braking resistor required
