Toshiba TOSVERT VF-nC3 User Manual

E6581595
A-2
1
Instruction manual
E6581597
CD-ROM
Contains the instruction manual in
digital form
Danger label kit
Danger labels for sticking in 6 languages
DANGER
DANGER
DANGER
DANGER
Risk of injury, electric shock or fire.
࡮Read the instruction manual.
࡮Do not open the cover while power is applied
or for 15 minutes after power has been removed.
࡮Ensure proper earth connection.
WARNING
Risk of injury, electric shock or fire.
࡮Read the instruction manual. ࡮Ensure proper earth connection.
࡮Do not open the cover while power is applied
or for 15 minutes after power has been removed.
WARNUNG
Risk of injury, electric shock or fire.
࡮Read the instruction manual. ࡮Ensure proper earth connection.
࡮Do not open the cover while power is applied
or for 15 minutes after power has been removed.
AVVERTENZA
Risk of injury, electric shock or fire.
࡮Read the instruction manual. ࡮Ensure proper earth connection.
࡮Do not open the cover while power is applied
or for 15 minutes after power has been removed.
ADVERTENCIA
Risk of injury, electric shock or fire.
࡮Read the instruction manual. ࡮Ensure proper earth connection.
࡮Do not open the cover while power is applied
or for 15 minutes after power has been removed.
⼊ޓ๔
DANGER
DANGER
Risk of injury, electric shock or fire.
࡮Read the instruction manual. ࡮Ensure proper earth connection.
࡮Do not open the cover while power is applied
or for 15 minutes after power has been removed.
AVERTISSEMENT
Risque de blessure, d’électrocution ou d’incendie .
࡮Lire le manuel d’instruction.
࡮Avant d’intervenir dans le variateur couper la puissance
et attendre 15 minutes avant d’ouvrir le couvercle.
࡮Assurer un raccordement approprié
à la terre.
・ English
・ German / English
・ Italian / English
・ Spanish / English
・ Chinese / English
・ French / English

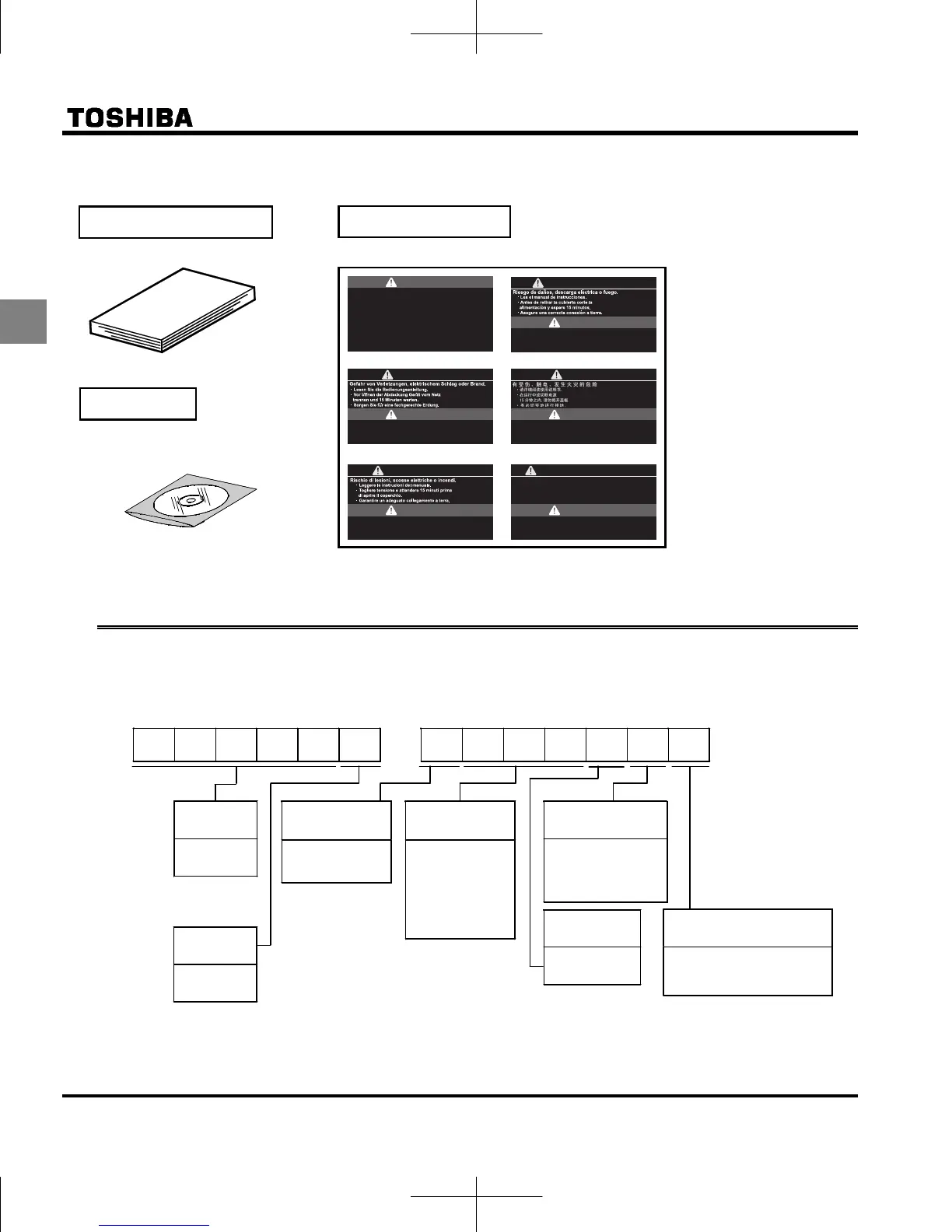

1.2 Contents of the product
Explanation of the name plate label.
Type Form
V F N C 3 S - 2007PLB
Model name
TOSVERT
VF-nc3series
Number of
power phases
S: single-phase
None:
three-
p
hase
Applicable motor
capacity
001 : 0.1kW
002 : 0.2kW
004 : 0.4kW
007 : 0.75kW
015 : 1.5kW
022 : 2.2kW
037 : 4kW
Additional functions I
None: No filter inside
L: Built-in
high-attenuation
EMI filter
None: No filter
Operation panel
P: Provided
Input (AC) voltage
1 : 100V to 120V
2 : 200V to 240V
Additional function II
None: Standard product
B: Base plate type
Note 1) Always shut power off first then check the ratings label of inverter held in a cabinet.
Note 2) ID label is stuck for special specification product.

Toshiba TOSVERT VF-nC3 Specifications

General

Model	VF-nC3
Category	Inverter
Output Frequency Range	0.1 to 400 Hz
Control Method	V/f control, sensorless vector control
Overload Capacity	150% for 60 seconds
Input Frequency	50/60 Hz
Enclosure Rating	IP20
Input Voltage	200-240V AC
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit
Ambient Temperature	-10°C to +50°C
Communication	Modbus RTU
Cooling Method	Fan Cooled
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m
Braking Unit	Built-in braking transistor (for models up to 22kW), External braking resistor required
