E6581595

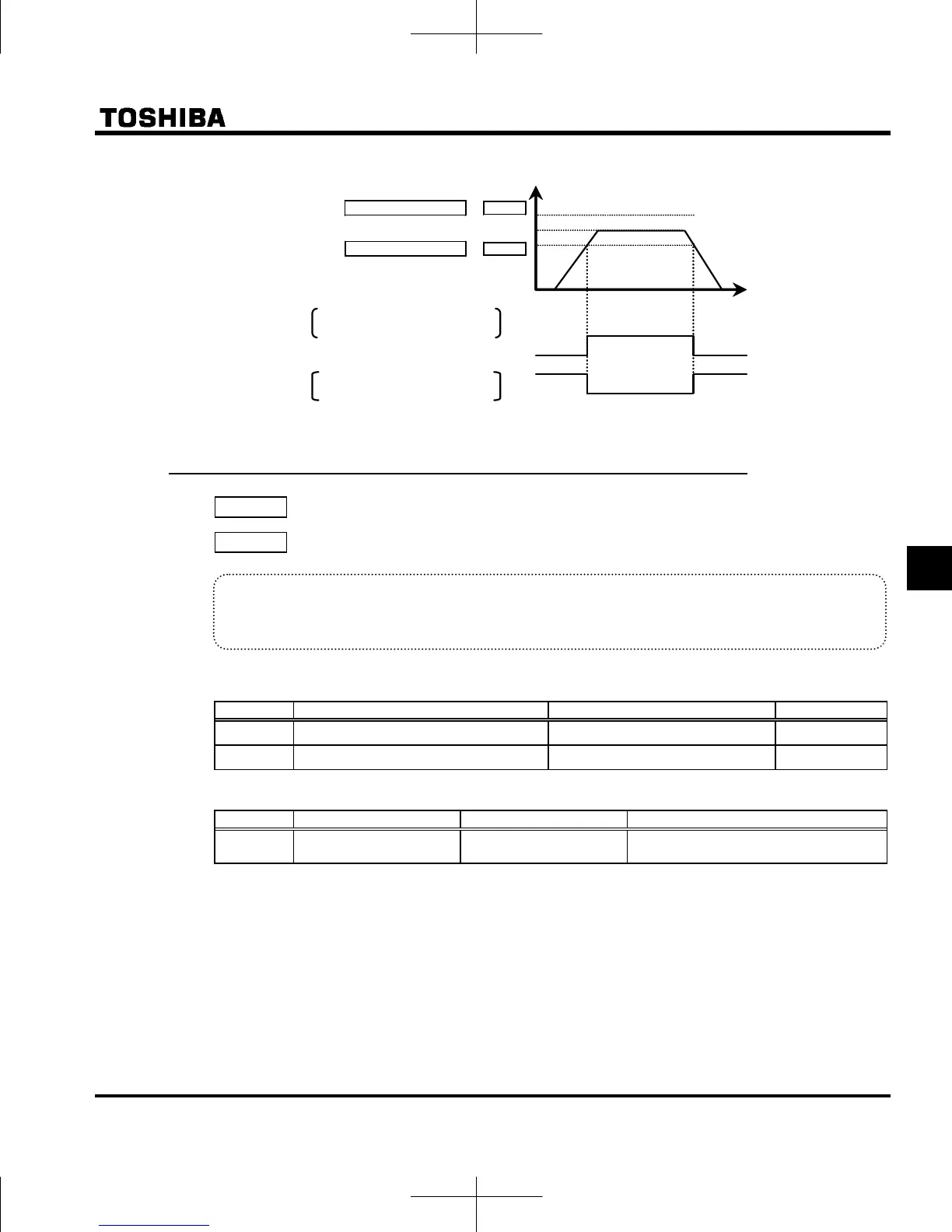

F-3
6
Output frequency [Hz]
Time [s]
Designated frequency  
ON
OFF
Designated frequency  
Setting frequency
Output frequency attainment signal
: OUT-NO terminals
Inversion of output frequency
attainment signal
ON
OFF
0
6.1.3 Output of set frequency speed reach signal
 : Speed reach setting frequency
 : Speed reach detection band
 Function
When the output frequency becomes equal to the frequency set by , an ON or OFF
signal is generated.
[Parameter setting]
Parameter setting of frequency and detection band
Title Function Adjustment range Default setting

Speed reach setting frequency 0.0 -  (Hz) 0.0

Speed reach detection band 0.0 -  (Hz) 2.5
Parameter setting of output terminal selection
Title Function Adjustment range Setting

Output terminal
selection 1A (OUT)
0-255
(Refer to section 11.7)
8: RCHF (Set frequency attainment
signal)
Setting value 9 is reverse signal.
Note: Set  to assign to FLA-FLC-FLB terminals.

Toshiba TOSVERT VF-nC3 Specifications

General

Model	VF-nC3
Category	Inverter
Output Frequency Range	0.1 to 400 Hz
Control Method	V/f control, sensorless vector control
Overload Capacity	150% for 60 seconds
Input Frequency	50/60 Hz
Enclosure Rating	IP20
Input Voltage	200-240V AC
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit
Ambient Temperature	-10°C to +50°C
Communication	Modbus RTU
Cooling Method	Fan Cooled
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m
Braking Unit	Built-in braking transistor (for models up to 22kW), External braking resistor required
