FLA
FLC
FLB
RY
+24V

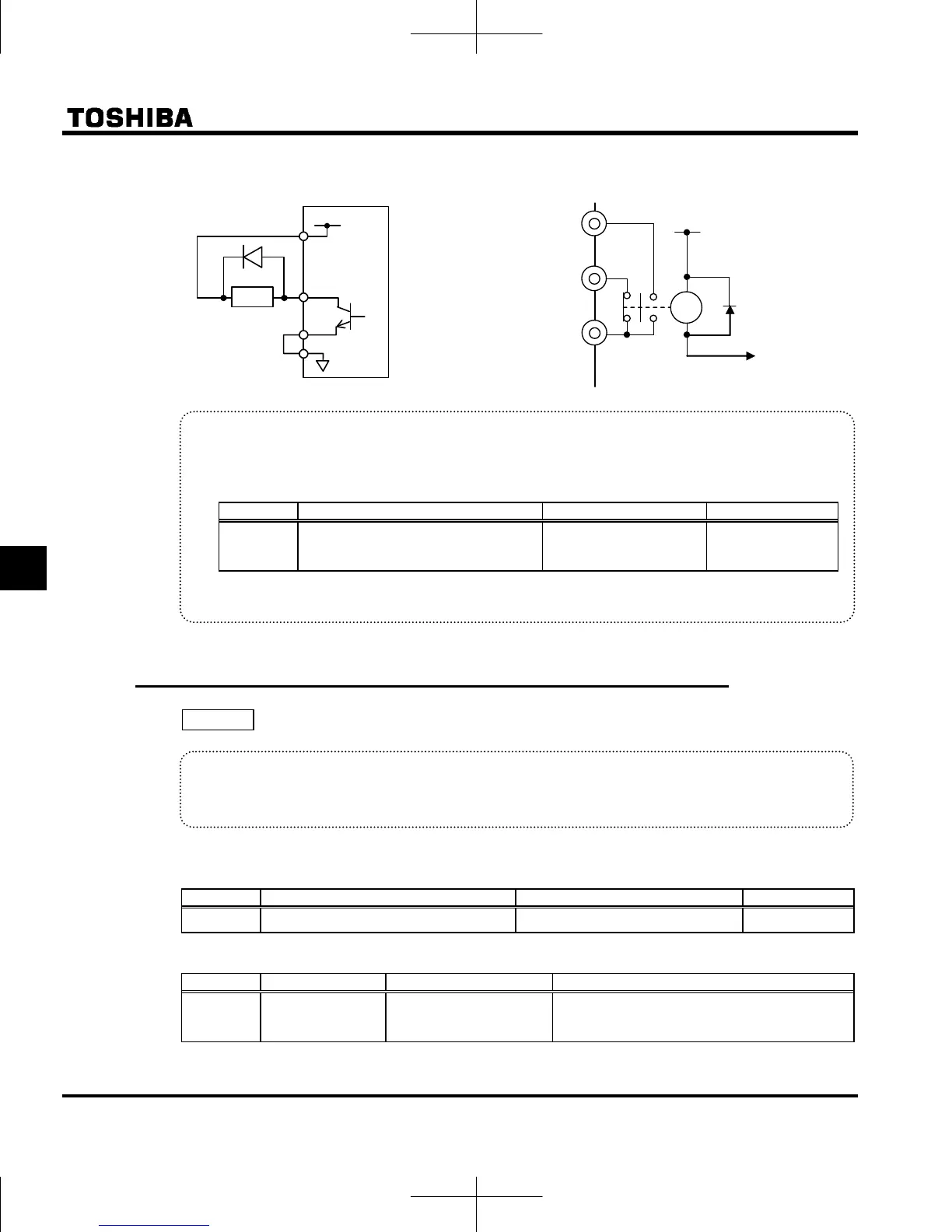

An example of the connection of the open collector
OUT terminal (sink logic)
An example of the connection of the relay
output terminals
 Output terminal setting
Default outputs low-speed signal (ON signal) to OUT terminal. This setting must be changed to invert
the polarity of the signal.
[Parameter setting]
Title Function Adjustment range Default setting

Output terminal selection 1A (OUT)
0-255
(Refer to section 11.7)
4: LOW (Low-
speed detection
signal)
Setting value 5 is reverse signal.
Set  to output to FLA-FLC-FLB terminals.
6.1.2 Output of designated frequency reach signal
 : Speed reach detection band
 Function
When the output frequency becomes equal to the setting by designated frequency , an ON
or OFF signal is generated.
[Parameter setting]
Parameter setting of designated frequency and detection band
Title Function Adjustment range Default setting

Speed reach detection band 0.0 -  (Hz) 2.5
Parameter setting of output terminal selection
Title Function Adjustment range Setting

Output terminal
selection 1A
(OUT)
0-255
(Refer to section 11.7.)
6: RCH (Output frequency attainment signal
(acceleration/deceleration completed))
Setting value 7 is reverse signal.
Note: Set  to output to FLA-FLC-FLB terminals.
+24V
OUT
NO
CC
Ry
