Toshiba TOSVERT VF-nC3 User Manual

E6581595
F-54
6

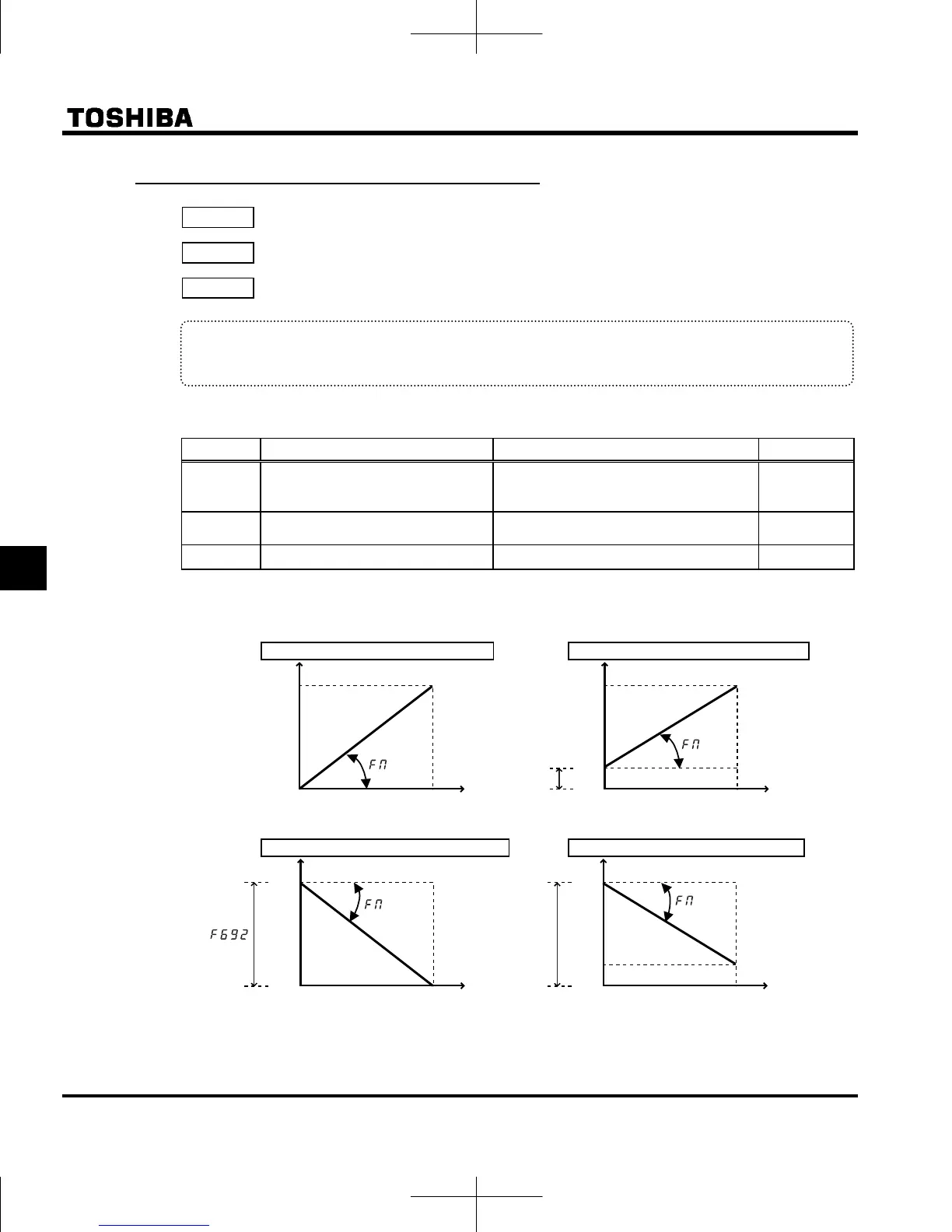

6.17.2 Calibration of analog output
 : Analog output signal selection
 : Inclination characteristic of analog output
 : Analog output bias
 Function
Output signal from the FM terminal can be switched between 0 to 1mAdc output, 0 to 20mAdc output,
and 0 to 10Vdc output with the  setting. The standard setting is 0 to 1mAdc output.
* Optional frequency meter: When using QS60T, set = (meter option (0 to 1mA) output).
[Parameter setting]
Title Function Adjustment range Default setting

Analog output signal selection
0: Meter option (0 to 1mA)
1: Current (0 to 20mA) output
2: Voltage (0 to 10V) output
0

Inclination characteristic of analog
output
0: Negative inclination (downward slope)
1: Positive inclination (upward slope)
1

Analog output bias -1.0 - +100.0% 0
Note: With 0 to 20mAdc (4 to 20mAdc) output, or 0 to 10Vdc output, set  to  or .
 Example of setting
=1, =1, =0(%) =1, =1, =20(%)
0
20
(mA)
0100%
Output current
Internal calculated value
4
20
(mA)
0 100%
f692
Output current
Internal calculated value
=1, =0, =100(%) =1, =0, =100(%)
0
20
(mA)
0 100%
: Large gain
Output current
Internal calculated value
4
20
(mA)
0 100%
: Small gain
f692
Output current
Internal calculated value
 The analog output inclination can be adjusted using the parameter .

Toshiba TOSVERT VF-nC3 Specifications

General

Model	VF-nC3
Category	Inverter
Output Frequency Range	0.1 to 400 Hz
Control Method	V/f control, sensorless vector control
Overload Capacity	150% for 60 seconds
Input Frequency	50/60 Hz
Enclosure Rating	IP20
Input Voltage	200-240V AC
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit
Ambient Temperature	-10°C to +50°C
Communication	Modbus RTU
Cooling Method	Fan Cooled
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m
Braking Unit	Built-in braking transistor (for models up to 22kW), External braking resistor required
