3) Using other speed commands with preset-speed command
Command mode selection

0: Terminal board
1: Panel keypad (including extension panel),
2: RS485 communication
Frequency setting
mode selection 
0: Terminal board
VI
5: UP/DOWN from
external logic
input
1: Setting dial 1
(press in center to
save)
2: Setting dial 2
(save even if
power is off)
3: RS485
communication
0: Terminal block
VI
5: UP/DOWN from
external logic
input
1: Setting dial
(press in center
to record)
2: Setting dial
3: RS485
communication
Preset-speed
command
Active Preset-speed command valid Note)
Terminal
command valid
Setting dial
command valid
Communication
command valid
Inactive
Terminal
command valid
Setting dial
command valid
Communication
command valid
Note) The preset-speed command is always given priority when other speed commands are input at the same time.

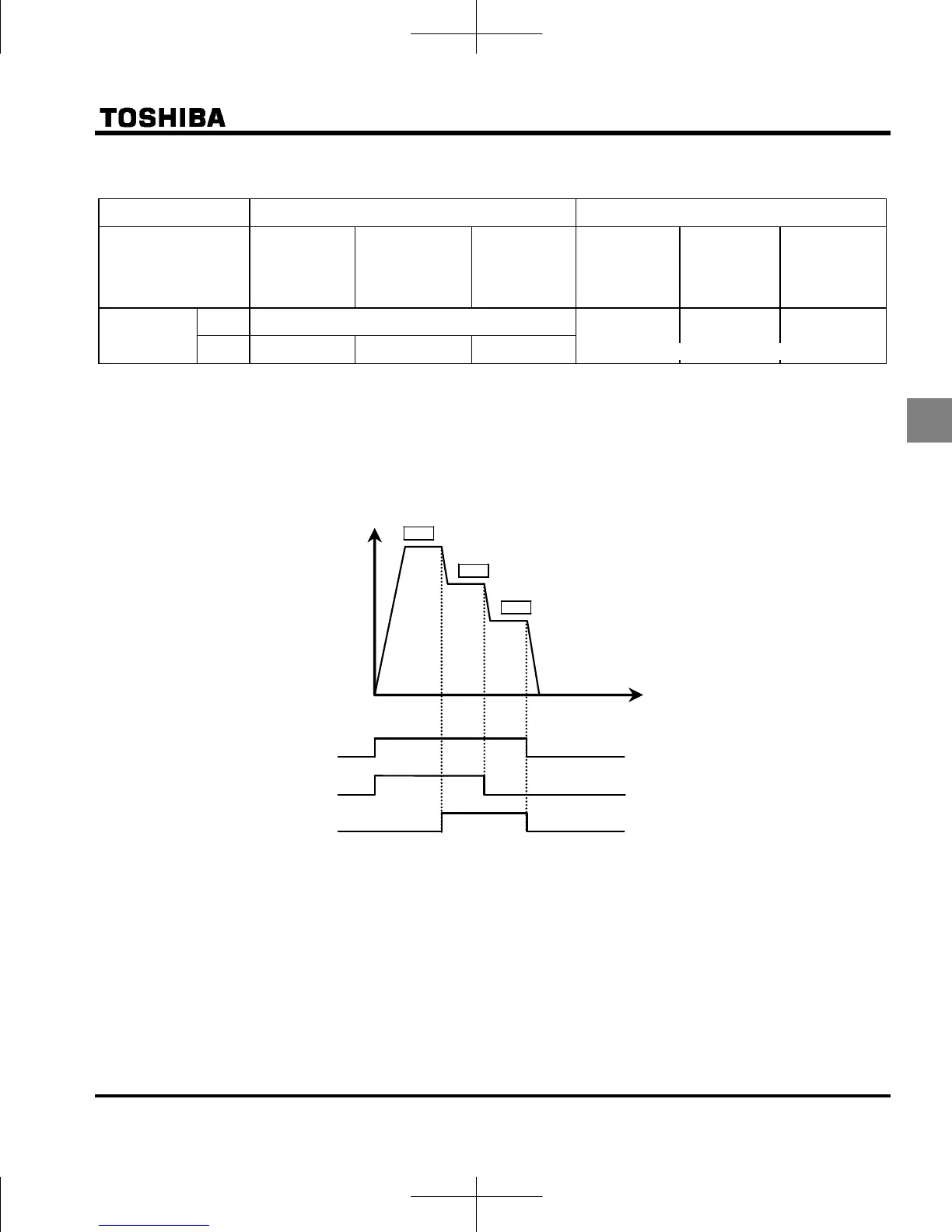

An example of three-speed operation with the default settings is shown below. (Frequency settings are required for
 to )
F-CC
S1(SS1)-CC
S2(SS2)-CC
ON
OFF
ON
OFF
ON
OFF



Output frequency
Time
0
Example of 3-speed operation
(The inverter doesn't accept Preset-speed command.)
