Shock resistance:
10 g
Altitude:
max. 2000 m
Humidity:
Maximum relative humidity 80% at temperatures up to +31°C, decreasing linearly up to 50% relative
humidity at +40°C.
Operating temperature:
0…50 °C
Storage temperature:
-10…70 °C
UL file:
E509199
7.3. Potentiometer
Type:
0...300 °C
Resistance:
5 k ±5 %
Linearity: ±0.25 %
Temperature coefficient: 50 ppm/°C
Total load capacity:
1.0 W
Turning angle:
1080 °
Connections:
soldered fitting
Type:
open
Housing:
Glass-fibre reinforced plastic
Mounting hole:
28.45…28.90 mm
Pollution class:
2
Protection type:
IP00
Dimensions (L x D):
57.4 x 32 mm
Weight:
51 g
Humidity:
95 %, no condensation
Altitude:
max. 2000 m
Operating temperature:
0…50 °C
Storage temperature:
-10…70 °C
7.4. Analogue display
Type:
Display 2060 0 - 300 °C
Scale:
0...300 °C
Accuracy: ±1.5 %
Vertical nominal situation
Input voltage:
0 - 10 VDC
Input resistance:
10.3 k
Connections:
soldered fitting
Type:
open
Housing:
Glass-fibre reinforced plastic
Section of front panel:
61.2 x 32.2 mm
Pollution class:
2
Protection type:
IP00
Dimensions (W x H x D):
63 x 50.6 x 51.7 mm
Weight:
65 g
Humidity:
95 %, no condensation
Altitude:
max. 2000 m
Operating temperature:
0…50 °C
Storage temperature:
-10…70 °C
7.5. Sealing transformer
The sealing transformer must be configured according to EN 61558 (VDE 0570) resp. UL 5085 (iso-
lating transformer with reinforced isolation). The sealing transformer must not be applied with reduced
induction.
7.6. TM6 thermometer
Type:
The TM6 thermometer is a handy thermometer for thermocouple sensors.
Sensor:
Thermocouple type K (NiCr-Ni)
Measuring range:
-99.9°C...+1370°C
Accuracy:
±0.5 °C, ±1 digit (only instrument)
Resolution:
0.1 °C from -99.9 °C...+399.9 °C, otherwise 1 °C
Display:
1-line LCD
Connection:
Miniature flat plug
RS232 interface:
Format:
2400 baud, 1 start bit, 8 data bits, 1 stop bit, no parity
connection:
DIN socket 8 pole
Supply voltage:
Battery:
2 x 1.5 V, size AA
Lifetime:
approx. 200 h
Housing:
Plastic (ABS)
Dimensions (W x H x D):
65 x 130 x 25 mm
Weight:
240 g
Operating temperature:
0…50 °C

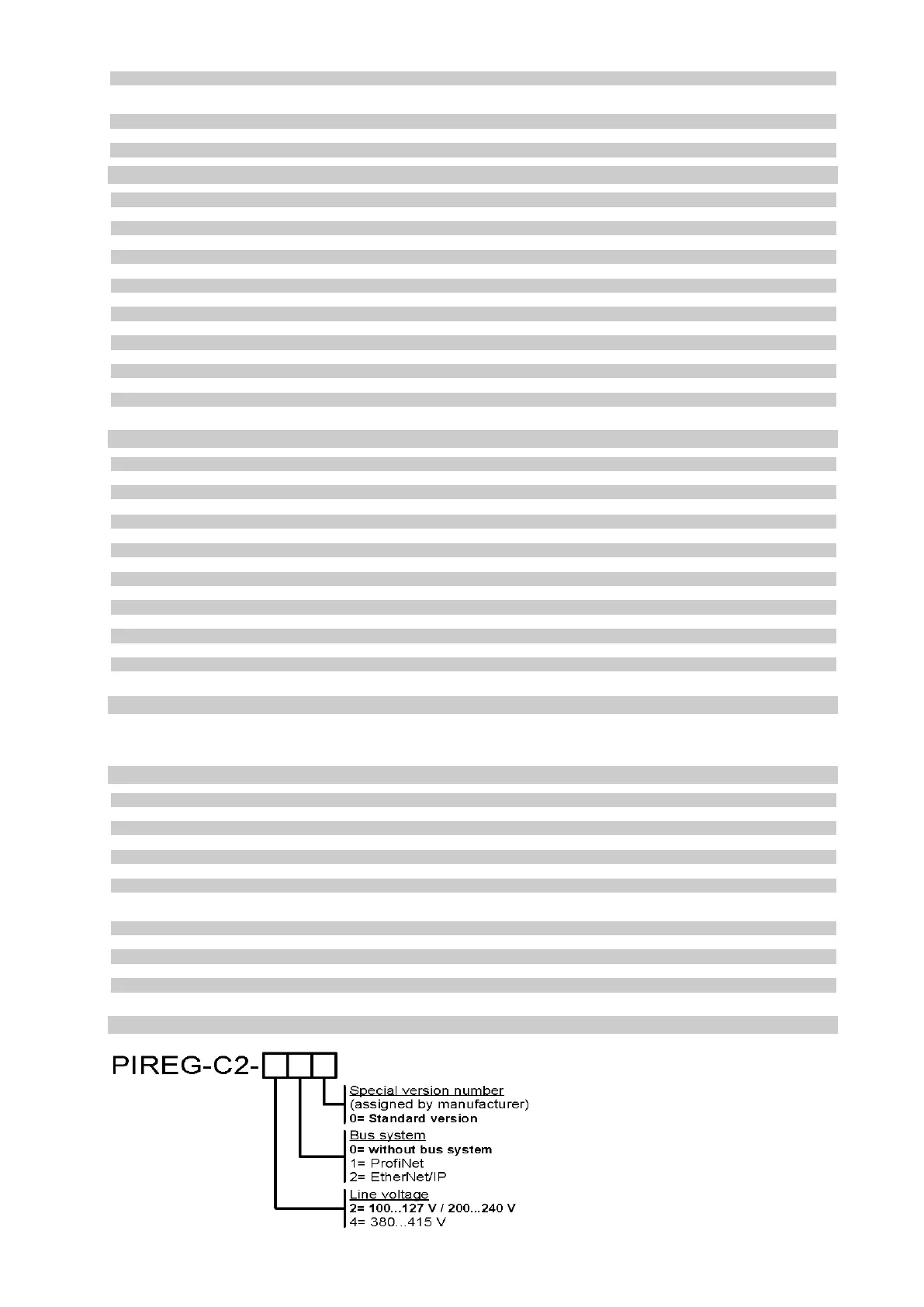

7.7. Ordering codes
