Toss PIREG-C2 - 8 Connection Diagrams; PIREG-C2 with Ext. Solid-State Relay; PIREG-C2 with Internal Thyristors; RS232; RS485 Connection - Interface

16502 PIREG-C2 Gerätebeschreibung mit EtherNet_IP Bussystem191017 - EN.docx/ Page 65 of 66
65

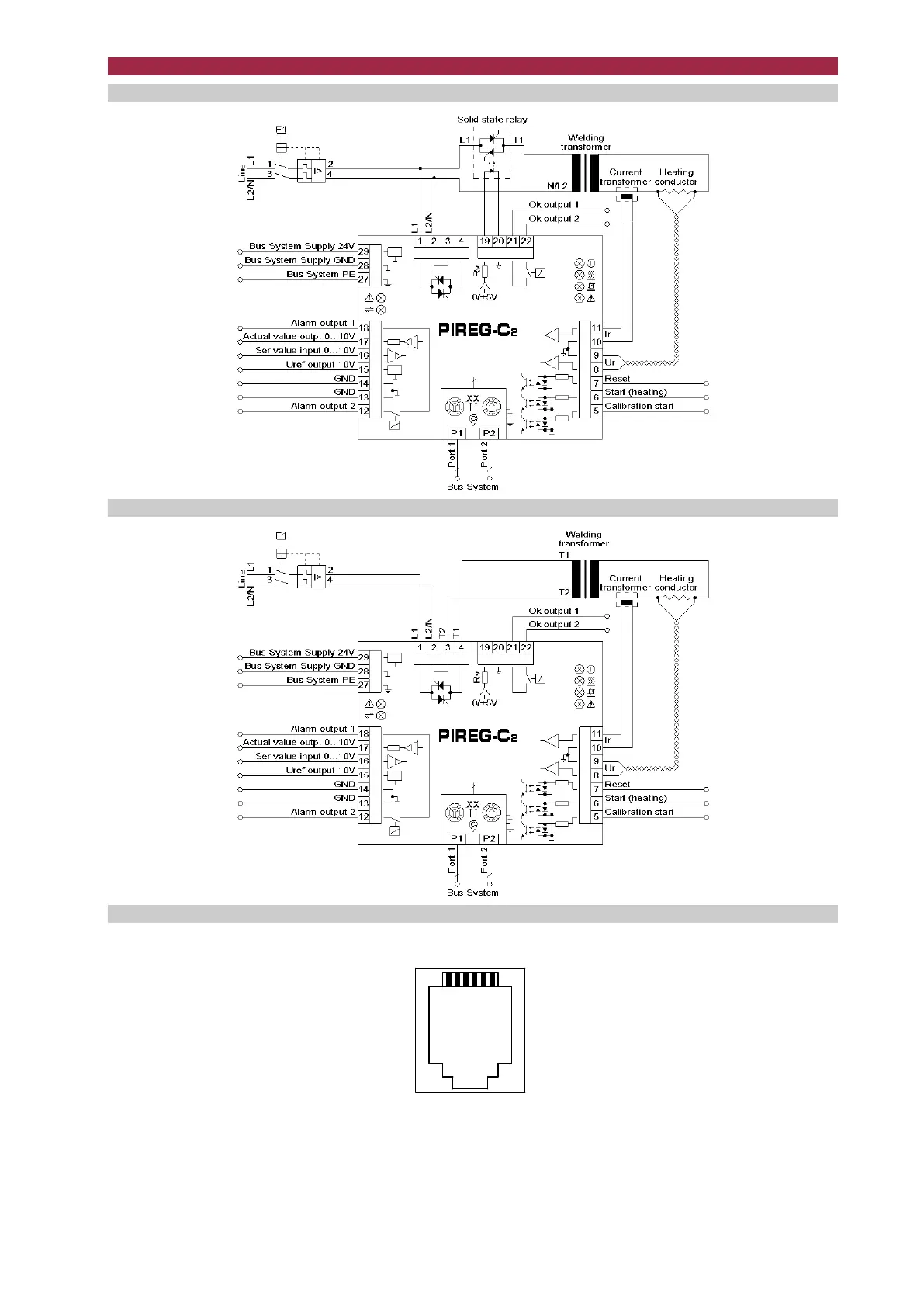

8. Connection diagrams
8.1. Connection diagram for PIREG-C2 with external solid-state relay
8.2. Connection diagram for PIREG-C2 with internal thyristors
8.3. RS232 / RS485 connection - interface
TxD: Output on PIREG-C2
RxD: Input on PIREG-C2
-R/-T(B) +R/+T(A) GND GND TxD RxD
