Repair and Service Manual
FAULT TESTING
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
10002660

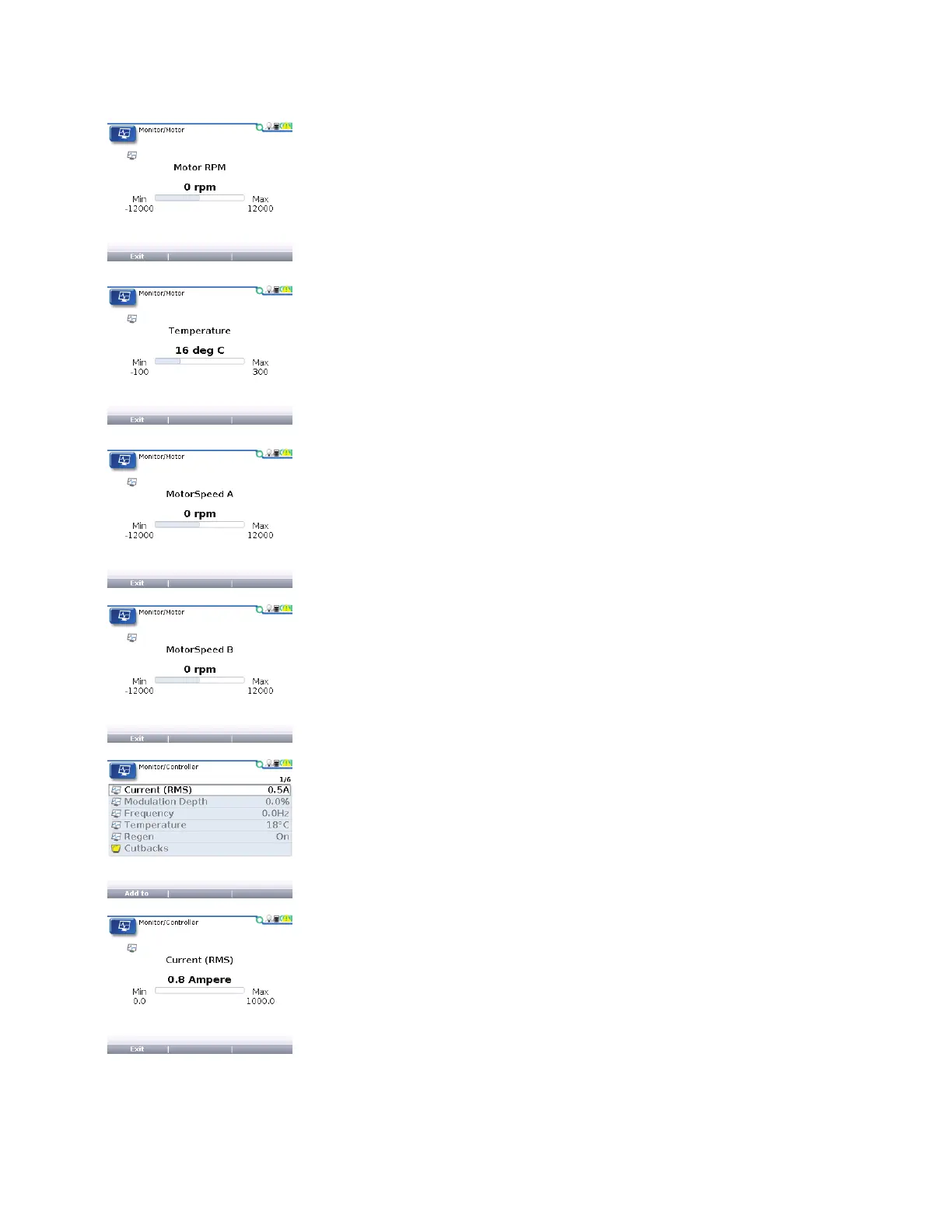

“Motor RPM” equals speed in revolutions per minute.
“Temperature” is measured in Celsius.
“Motorspeed A” shows the motor encoder phase A speed in revolutions per
minute.
Use to verify that phase A of the encoder is operating
correctly.
Motor speed A should equal Motor speed B in a properly operating power
train.
“MotorSpeed B” shows the motor encoder phase B speed in revolutions per
minute.
Use to verify that phase B of the encoder is operating
correctly.
Motor speed B should equal Motor speed A in a properly operating power
train.
The controller operation can be seen in the “Controller” sub-menu.
“Current (RMS)” shows the RMS current of the controller, taking in all three
phases into account (amp draw).
Fig. 8 Handheld Tool Function (Continued)
