“Modulation Depth” shows the percentage of available voltage being used.
Frequency” shows the controller electrical frequency.
“Temperature” indicates the internal controller temp.
“Regen” shows regenerative braking and activates when the brake pedal is
pressed. Regen deactivates when the pedal is released.
The “Cutbacks” sub-menu selection shows voltage reductions.
“Motor Temp Cutback” displays the current available as a result of the motor
temperature cutback function. A value of 100% indicates NO cutbacks.

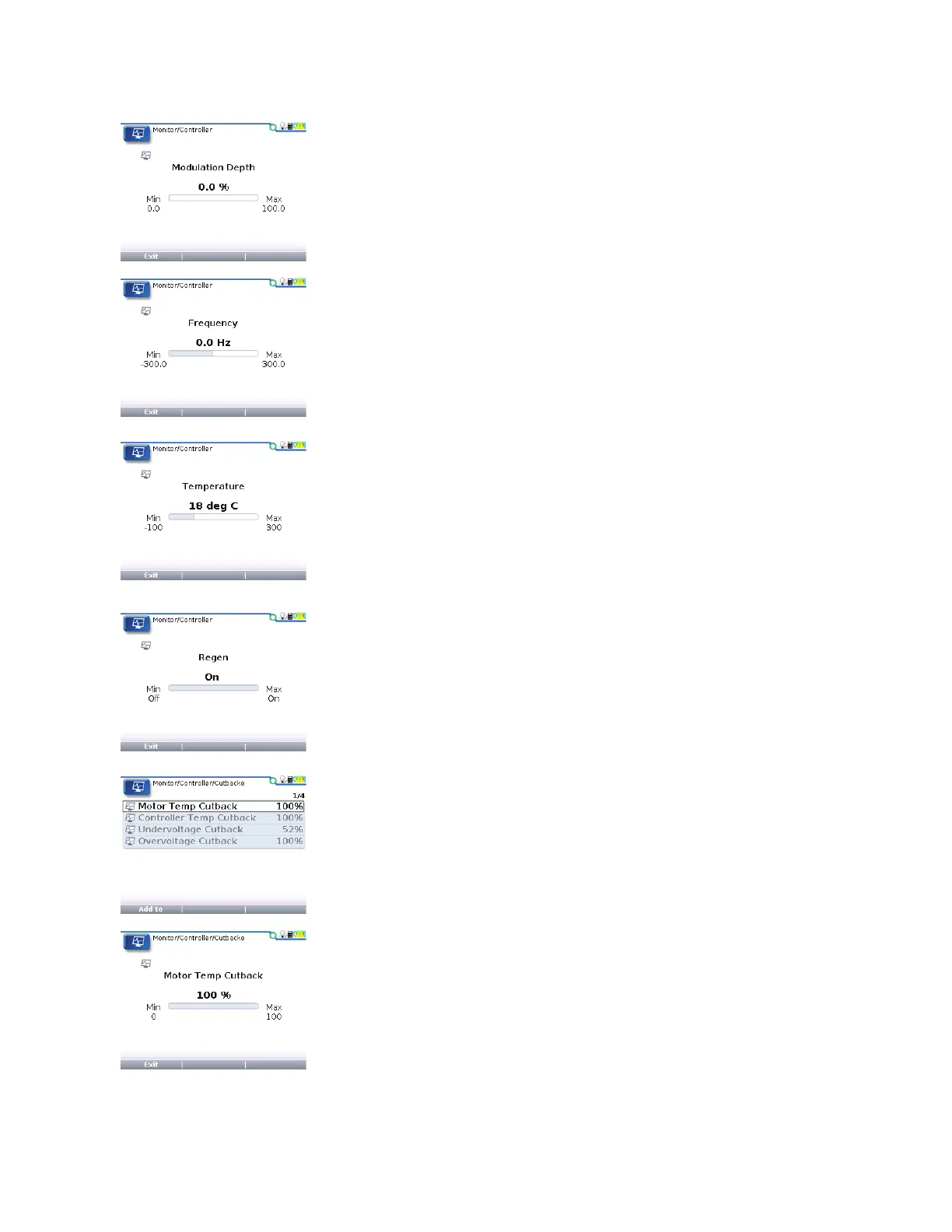

Fig. 8 Handheld Tool Function (Continued)
