FAULT TESTING
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
10002660

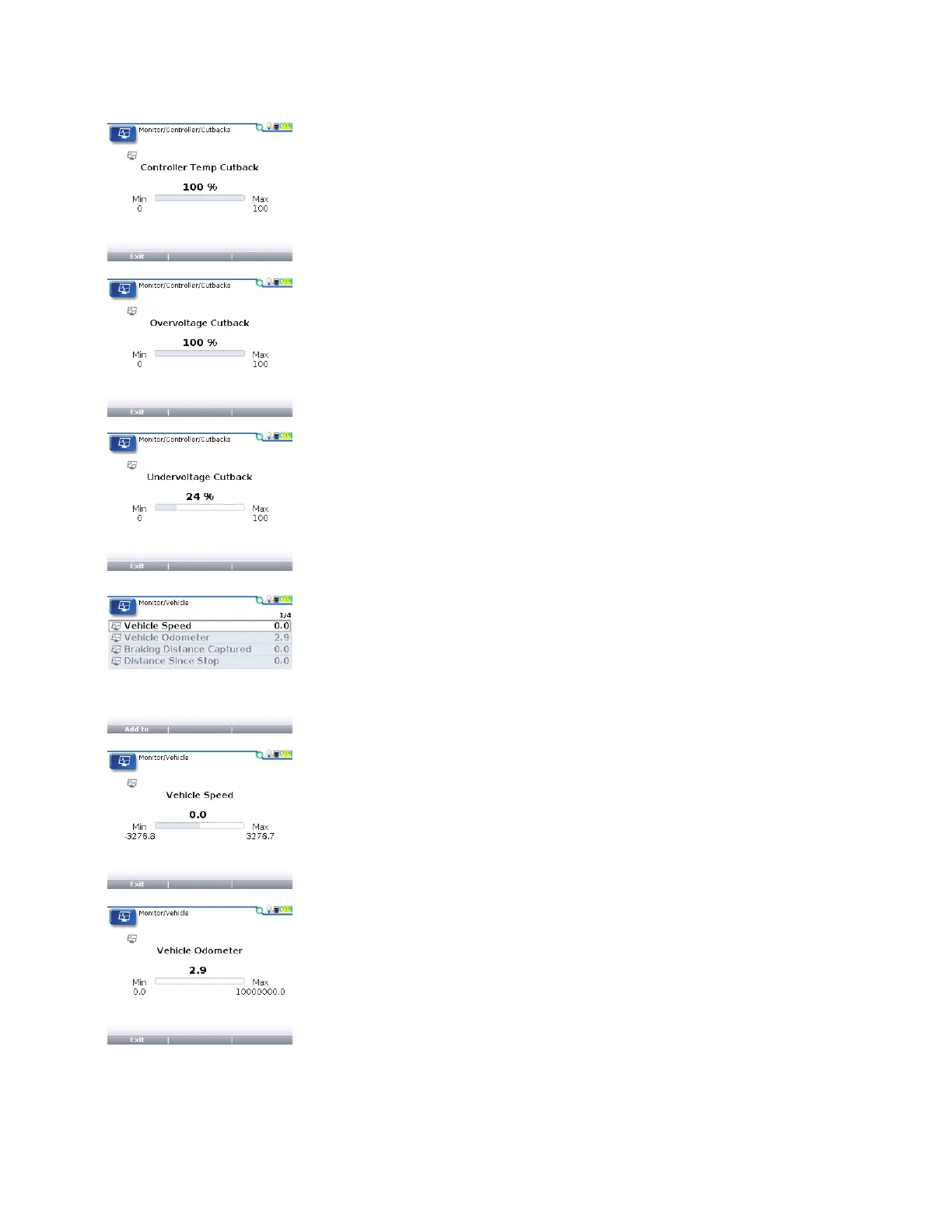

“Controller Temp Cutback” shows the current available as a result of the con-
troller temperature cutback function. A value of 100% indicates no cutback in
current.
“Overvoltage Cutback” or “Undervoltage Cutback” indicates the current avail-
able as a result of the condition. A value of 100% indicates no cutback in cur-
rent.
The “Vehicle” sub-menu selection shows vehicle drive operations.
“Vehicle Speed” indicates vehicle speed in units of MPH. For accurate speed
estimates, the speed to RPM parameters must be set correctly.
“Vehicle Odometer” indicates vehicle distance traveled in units of miles. For
accurate distance measurements, the speed to RPM parameters must be set
correctly.
Fig. 8 Handheld Tool Function (Continued)
To Next Page
