TracVision TV3 User’s Guide
30
Antenna Settings
Using the Optional NMEA Input
If a NMEA device is connected to the TV-Hub, the antenna can use its
GNSS position and heading data to speed up satellite acquisition.
(Refer to the Installation Guide for details on connecting the NMEA
device.) The current position and heading will also be displayed on the
Home page of the web interface.

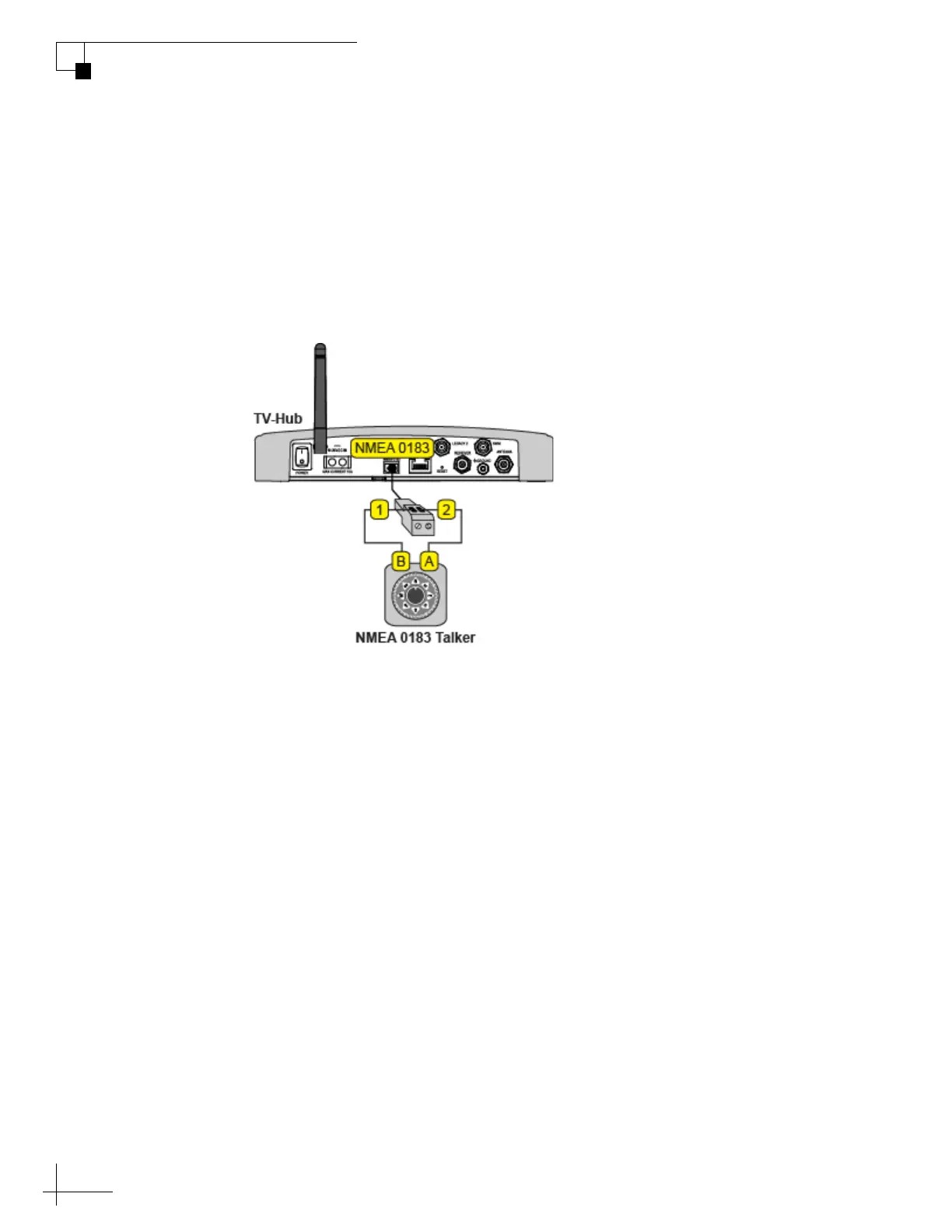

Figure 4-4 TV-Hub NMEA Connection (TV-Hub A shown)
