14 EMTX-SVX01G-EN
Connecting Rover to a Device
Connecting Using a Quick-connect Adapter
To connect Rover using a quick-connect adapter:
1. Connect the supplied USB cable between the PC and the USB LonTalk adapter (Figure 5, p. 15).
2. Connect the USB 2.0 cable adapter to the USB LonTalk adapter. The adapter should click easily
into the card. If you have to use force, the adapter may be upside down.
3. Connect the RJ11 plug on the other end of the network interface cable to the RJ11 jack on the
protection module.
4. Connect the other end of the quick connect adapter to the device communications terminals,
which are not polarity sensitive.
5. Test the communications link. Refer to “Verifying Network Communications,” p. 15.

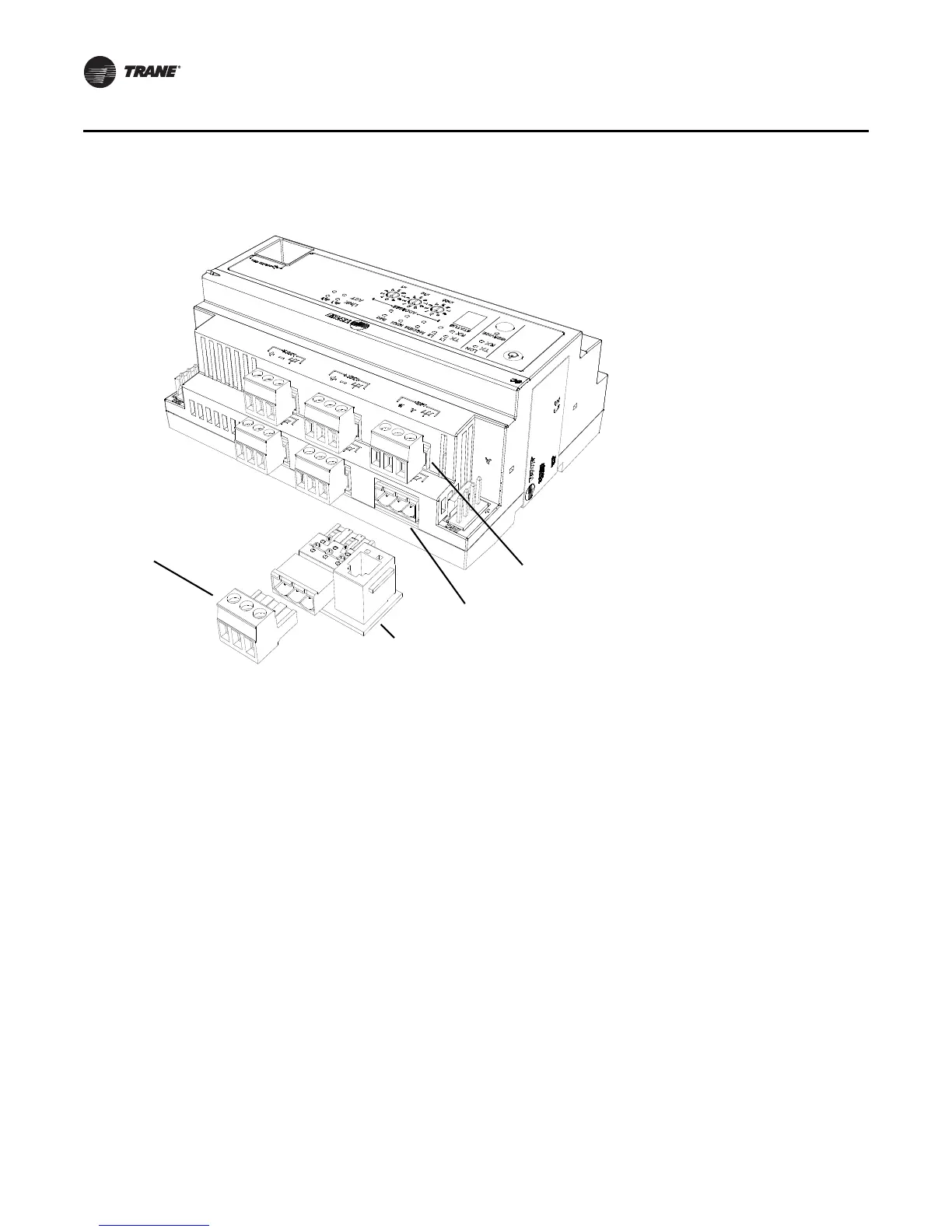

Figure 4. Connecting Rover to a Tracer SC using the LonTalk interface adapter
Plug the Lon interface
adapter into the
lower Lon Link
Lower Lon Link
Upper Lon Link
Unplug the terminal
block from the lower
Lon Link and plug it
into the Lon interface
adapter
