46 EMTX-SVX01G-EN
Viewing Device Network Variables
5. Rover sees the request from that service pin and can determine the domain ID of that device.
The prompt shown in Figure 34 appears.
6. If you want to switch to that domain to discover devices, click Ye s .
7. The new domain ID should show up in the Discovery DSN group. Once Rover knows the domain
ID, it can discover all the devices on that domain.
Viewing Device Network Variables
Network variables data is information a device uses for its internal operation. A device is capable
of transmitting and receiving data by using the network variable format. This information is used
for troubleshooting.
Note: This list refreshes the values it displays every five seconds.
To view network variables:
1. In the Active Group tree, click the device you want to view.
2. From the Device menu, choose Network Variables (Figure 35).
3. Click Close.

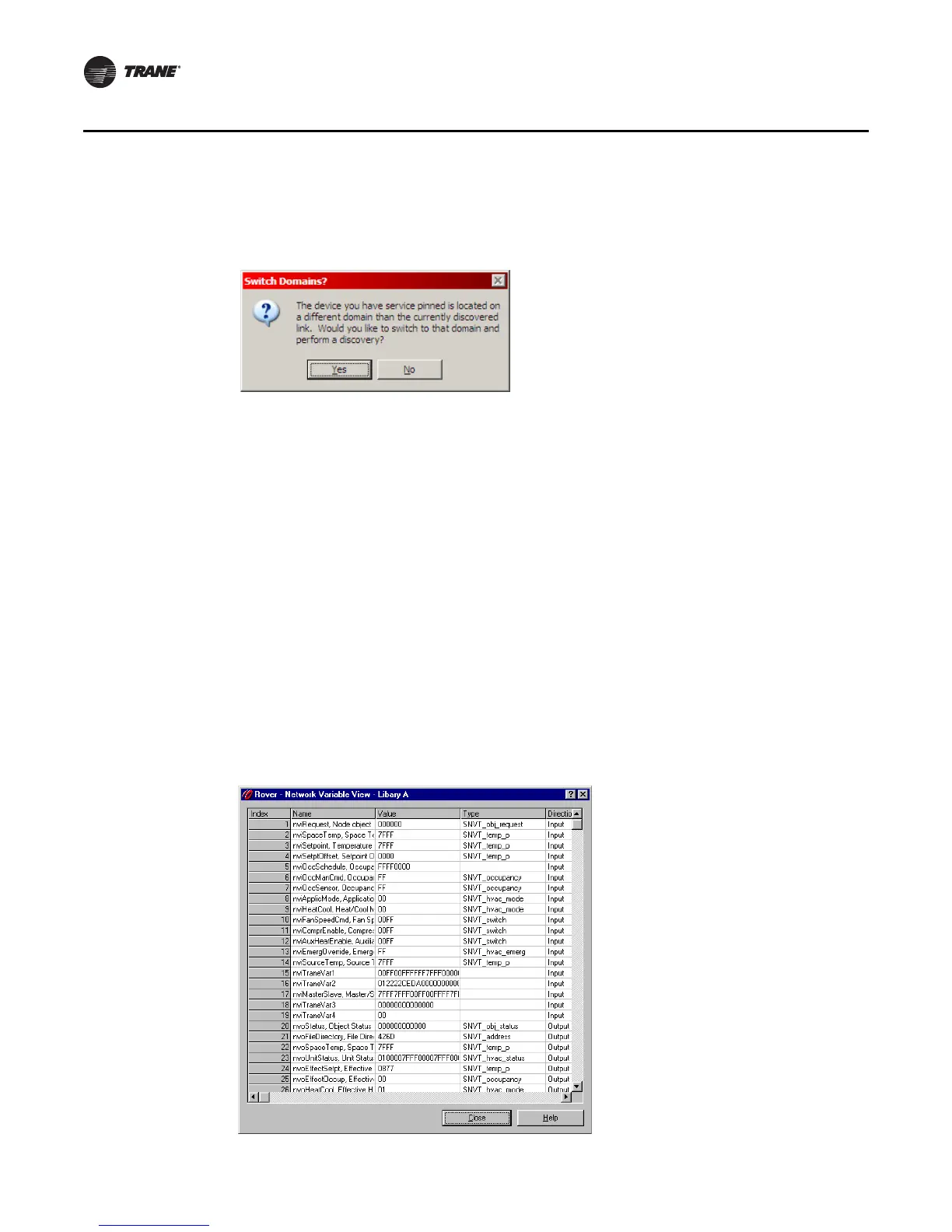

Figure 34. Switching domains prompt.
Figure 35. Network Variable View
