40 EMTX-SVX01G-EN
Configuring a Device
Removing Network Variable Bindings
You can remove a network binding in the active group to stop the sharing of data between devices.
Rover must be in the active or server-connected mode to remove bindings.
To remove network variable bindings:
1. Click any icon in the Active Group tree.
2. From the Group menu, choose Bindings to display the Network Variable Bindings Summary
dialog box (Figure 27, p. 38).
The Bindings command is available only if an icon in the Active Group tree is selected.
3. Select the bindings you want to remove.
To select a single binding for removal, click one row. To select multiple bindings, click the first
item, press and hold down the SHIFT key, then click the last item.
4. Click Remove for a confirmation.
5. Click Remove and the bindings are removed from the active group.
You can also remove network variable bindings by selecting bindings and pressing the Delete
key.
6. Click Close.
Using Rover in Tracer Summit
You can use the Rover LonTalk service tool within your Tracer Summit software to configure unit
controllers. There are two ways to do this:
• Start the full version of Rover from the Tracer Summit
™
To o l s m e n u
• Open Rover configuration screens from Tracer Summit UCM editors
You can use Rover to configure all supported LonTalk controllers through Tracer Summit. The Rover
LonTalk service tool must be purchased and installed separately from Tracer Summit. Tracer
Summit Version 17.0 and Rover Version 6.0 are required.
Note: All Rover functions are available except Rover Comm4, the Flash Download Wizard, and the
Air and Water Balancing tool are not available through Tracer Summit.

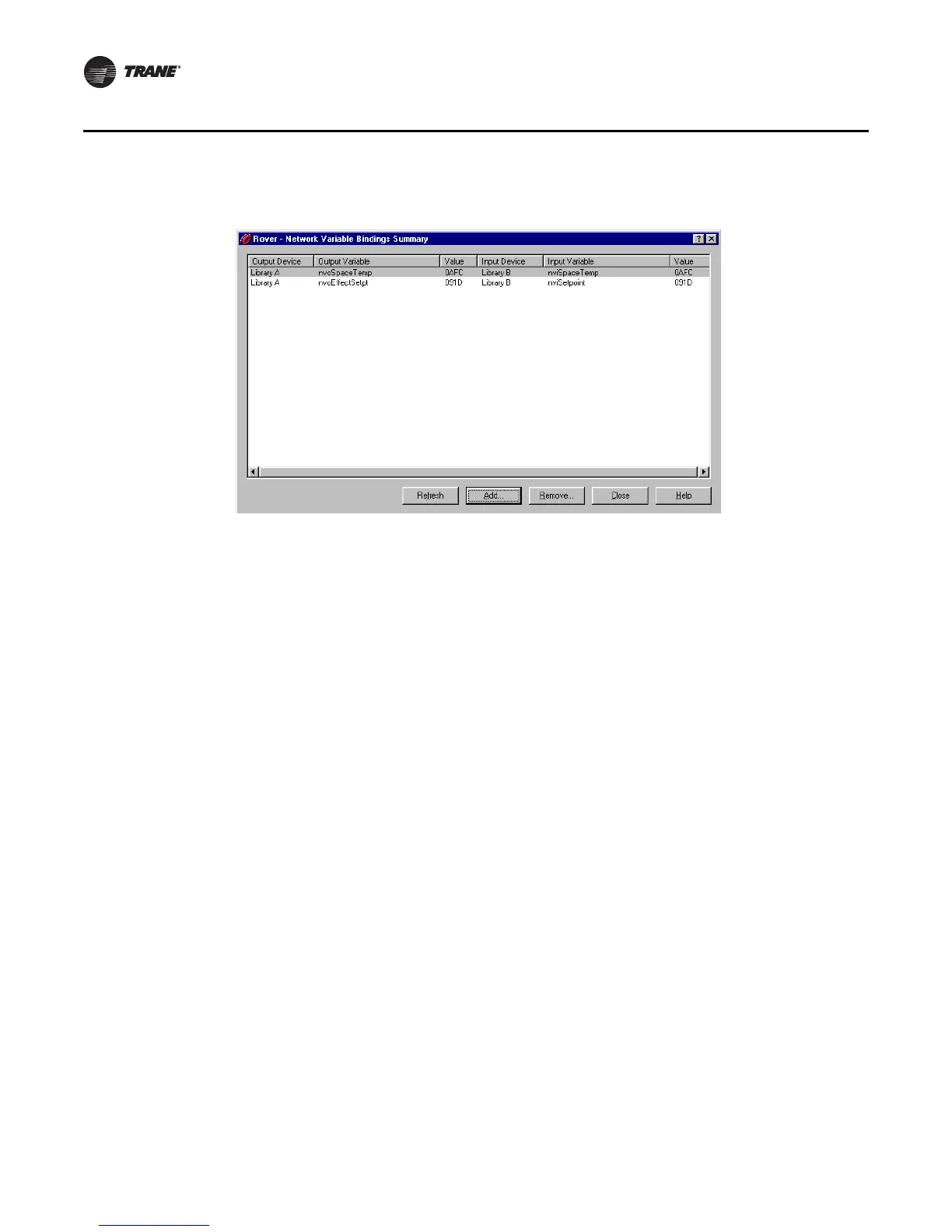

Figure 29. Network Variable Bindings Summary with new binding
