16 Threat Protection System Hardware Specification and Installation Guide

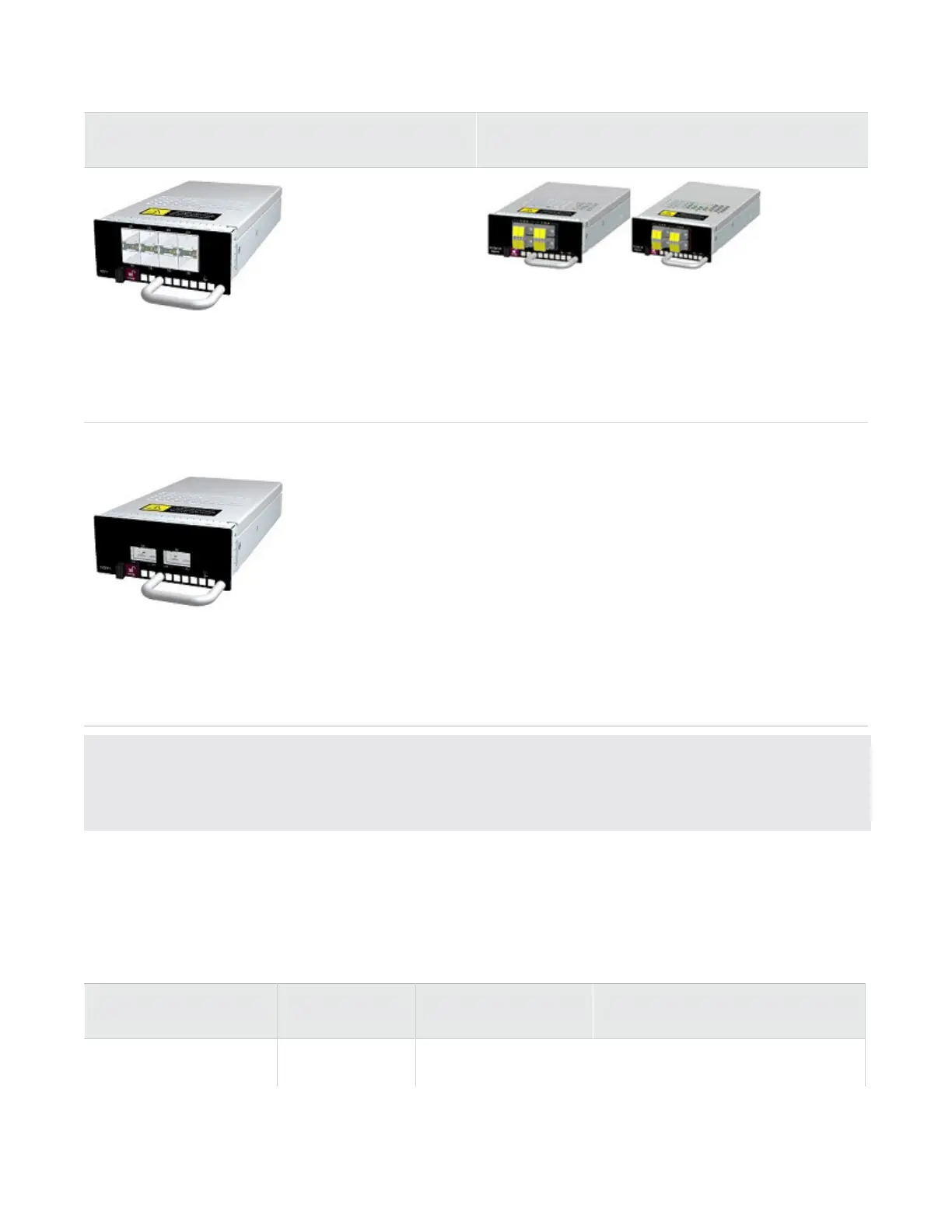

Standard I/O Modules Bypass I/O Modules
Ports: 8 Fiber SFP+ ports
Port speed: 10 Gbps
Part number: TPNN0060
Ports: 4 Multi-Mode (SR)/Single-Mode (LR) Fiber
(LC type)
Port speed: 1/10 Gbps
Part number: TPNN0073/TPNN0074
1-Segment 40 GbE QSFP+
Ports: 2 Fiber QSFP+ ports
Port speed: 40 Gbps
Part number: TPNN0069
Important: Handle all I/O modules with care. The bypass modules contain mechanical switches that are
very sensitive to handling when not installed in the system. Network disruption can occur
if handled improperly. For more information about deploying bypass modules, refer to the
product hardware documentation for your TippingPoint security device.
Module LEDs
The following table describes the states of each LED on the I/O module.
Table 6. I/O module and bypass I/O module LED states
Feature LED Color Description
Fixed RJ45 copper port Link Green Link is active.
